12kg 0.057s Low Profile HV Coreless Metal Case Servo

- Ideal for 1/10 on-road scale applications, as well as large-scale airplanes and jets
- Incredible efficiency and low power consumption
- Titanium & Aluminum gears for precision and durability
- Standard dimensions make it perfect for vehicles that can benefit from a high-quality servo
- CNC Machined aluminum case for exceptional cooling
- HD 4096 Resolution
- 2 ?sec Dead Band
- Superior Holding Torque

Application:
1/10 on-road, 1/10 off-road, as well as large-scale airplanes and jets

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520?s / 330Hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to +60 degrees
Operating Speed (6.0v): 0.07 sec/60 degrees at no load
Operating Speed (7.4v): 0.06 sec/60 degrees at no load
Operating Speed (8.4v): 0.057 sec/60 degrees at no load
Stall Torque (6.0v): 9.0kg.cm (124.9 oz/in)
Stall Torque (7.4v): 11.0kg.cm (152.8 oz/in)
Stall Torque (8.4v): 12.0kg.cm (166.6 oz/in)
Potentiometer Drive: Direct Drive

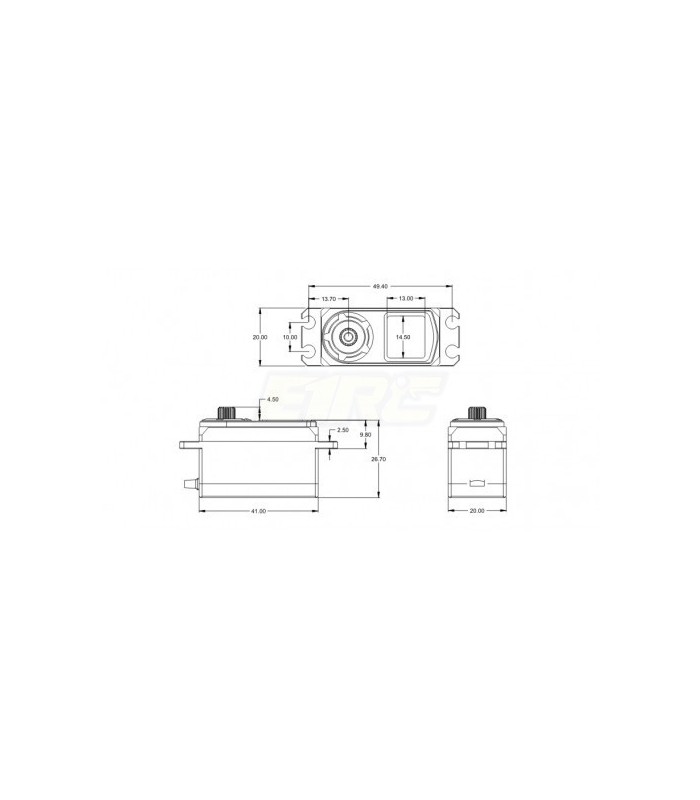

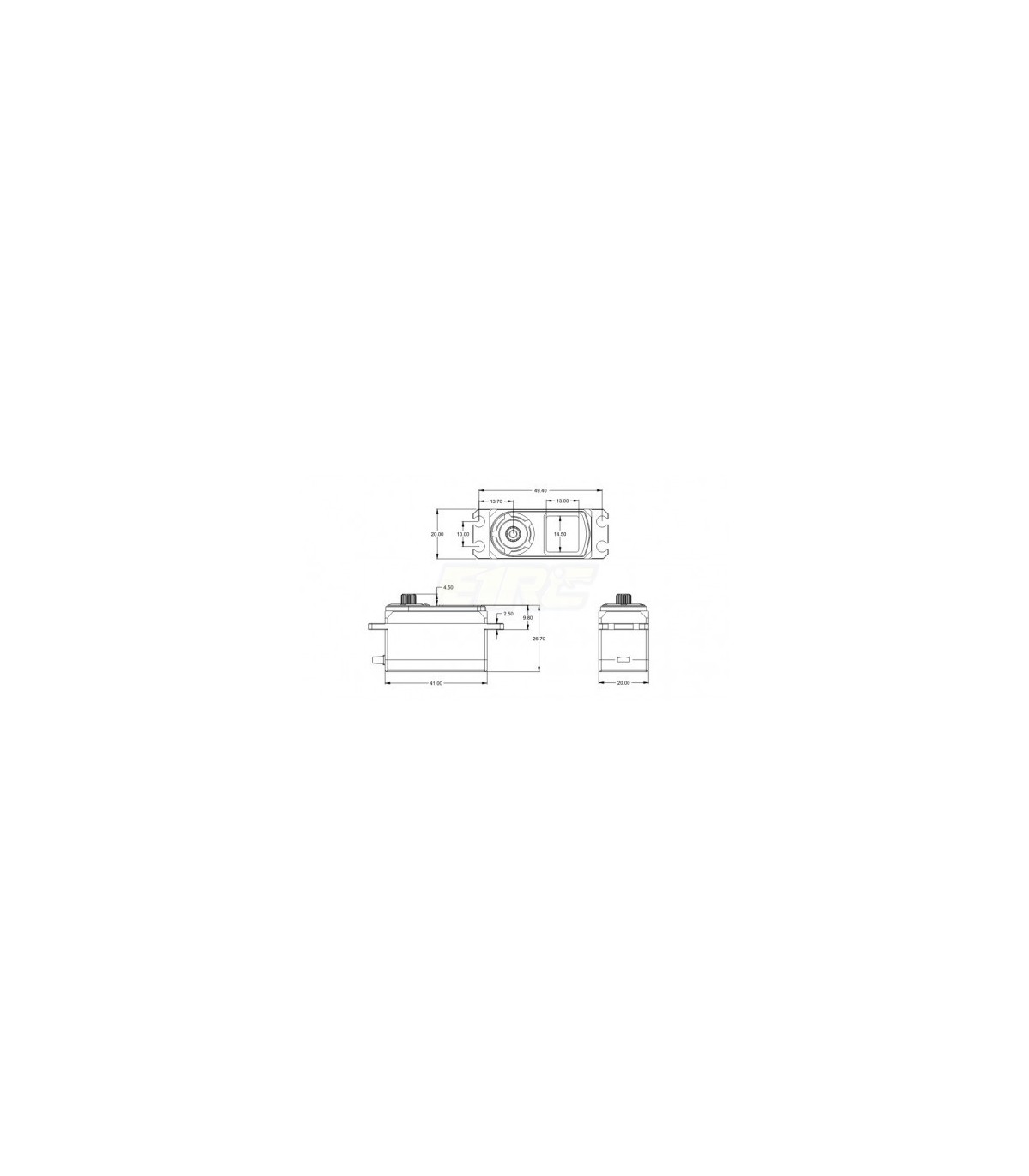

Dimensions: 41.0x20.0x26.4 mm / 1.61x0.79x1.04 in
Weight: 52.0g (1.83 oz)
Connector Wire Length: JR 180 mm

SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air Plane Boat Robot application. These are standard-size servos for High-Voltage applications up to 8.4V, featuring all-metal case construction for the ultimate performance.
