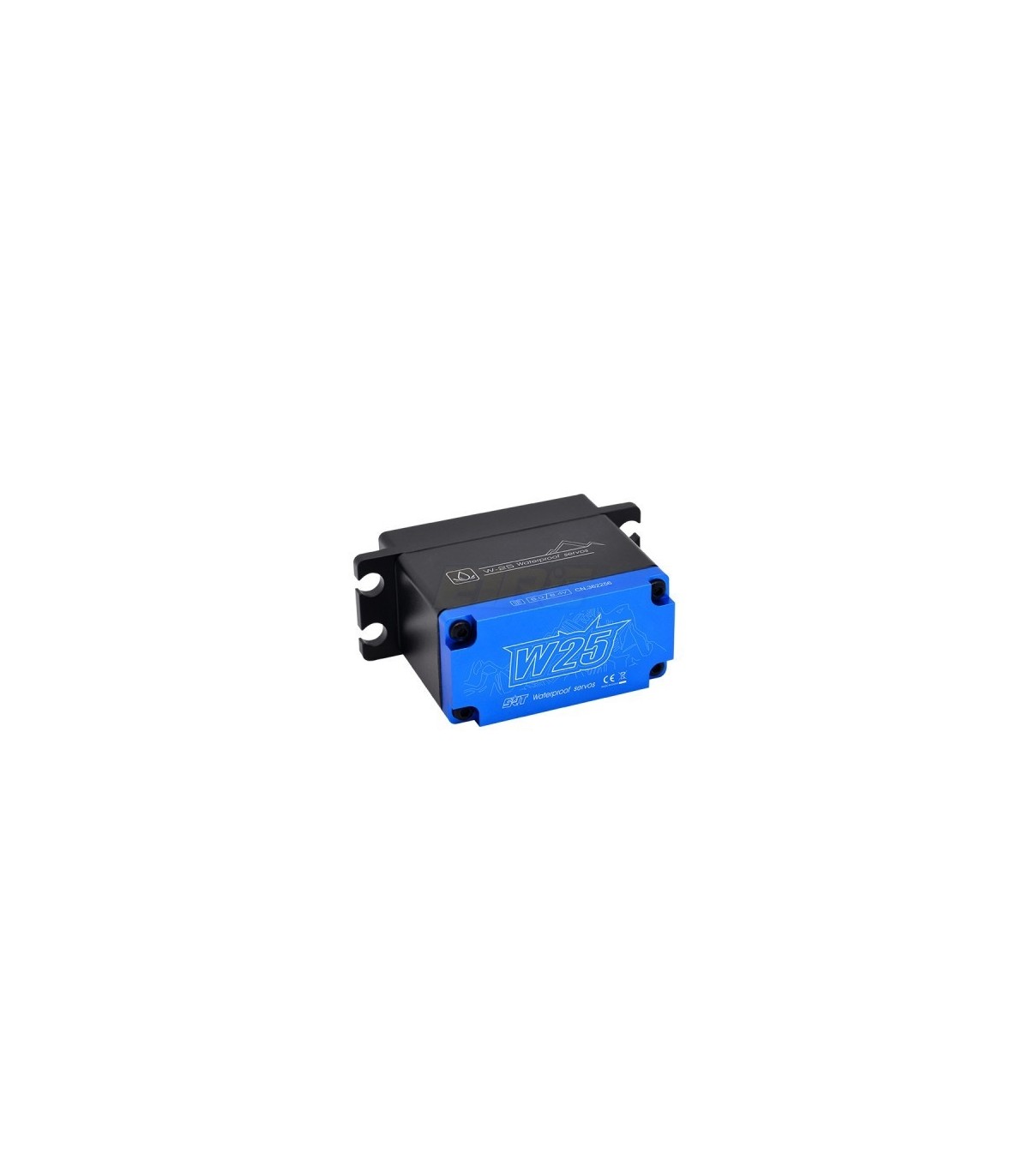

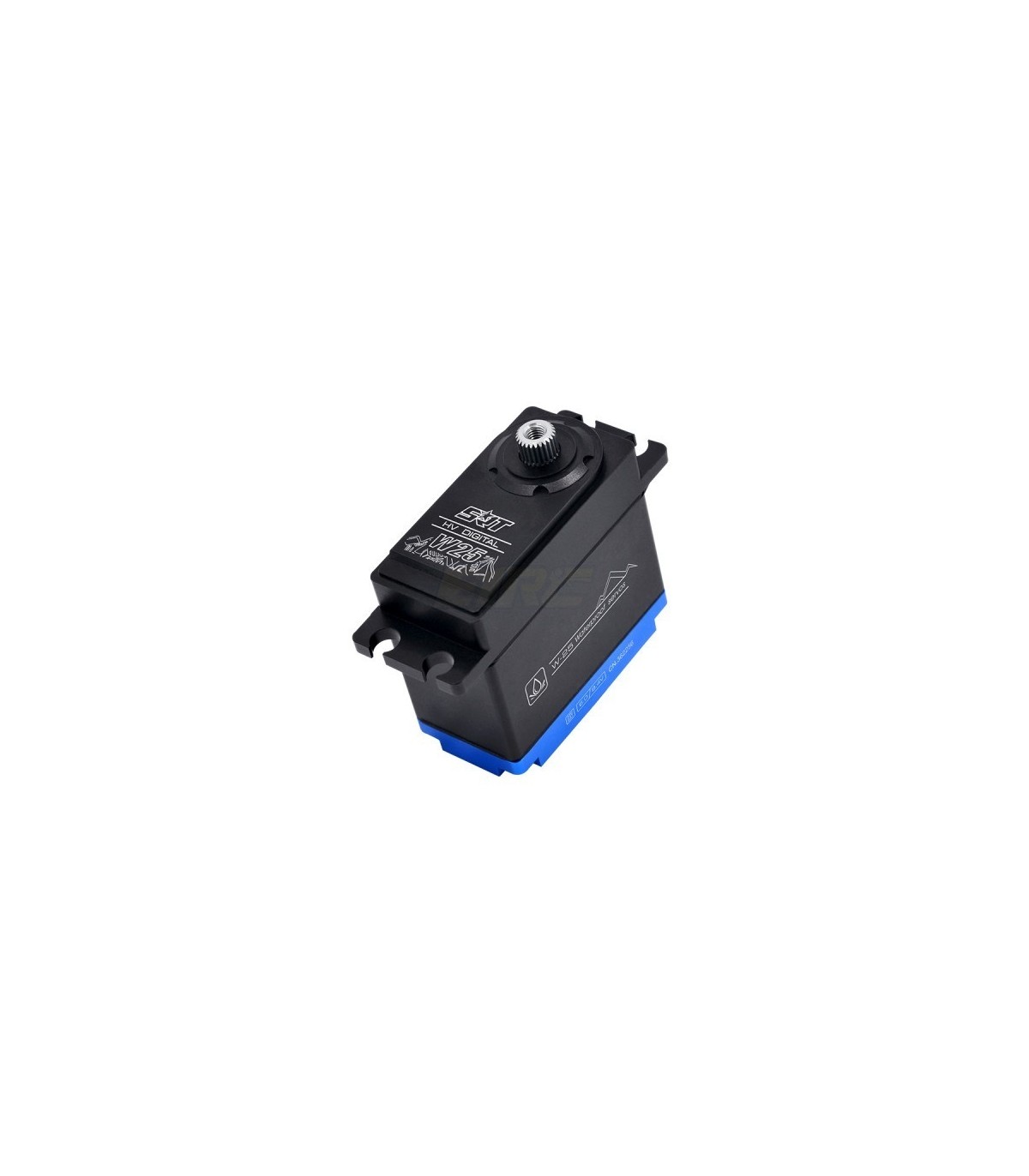

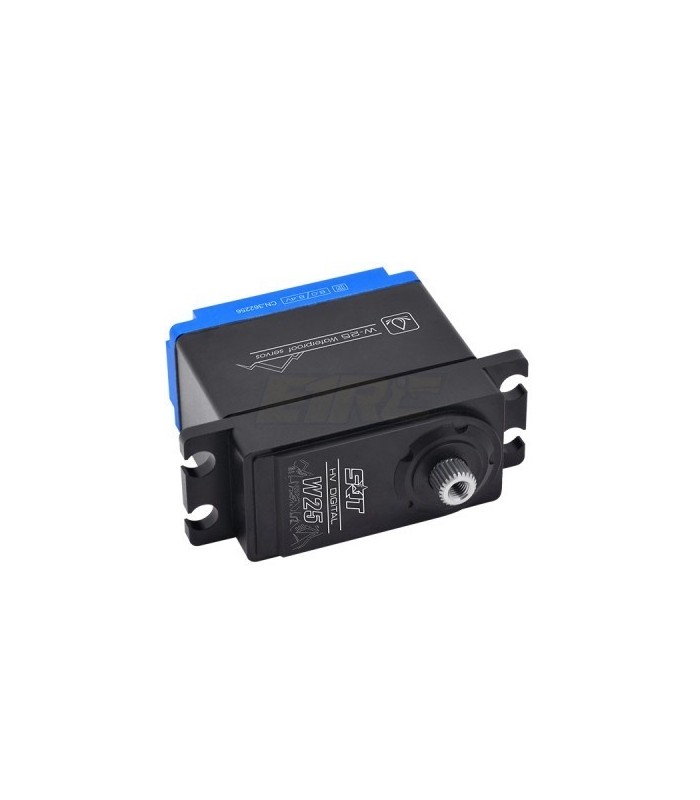

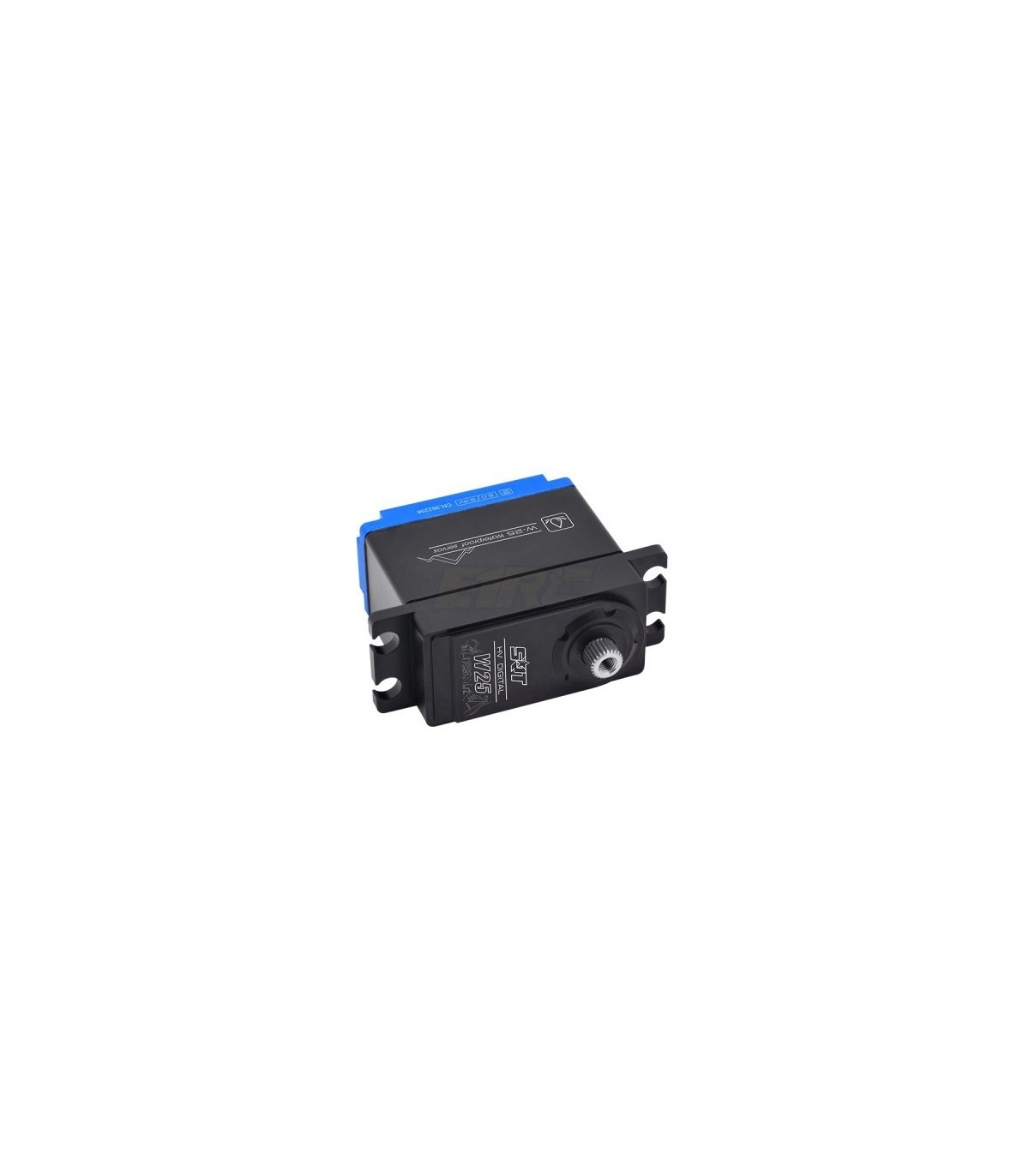

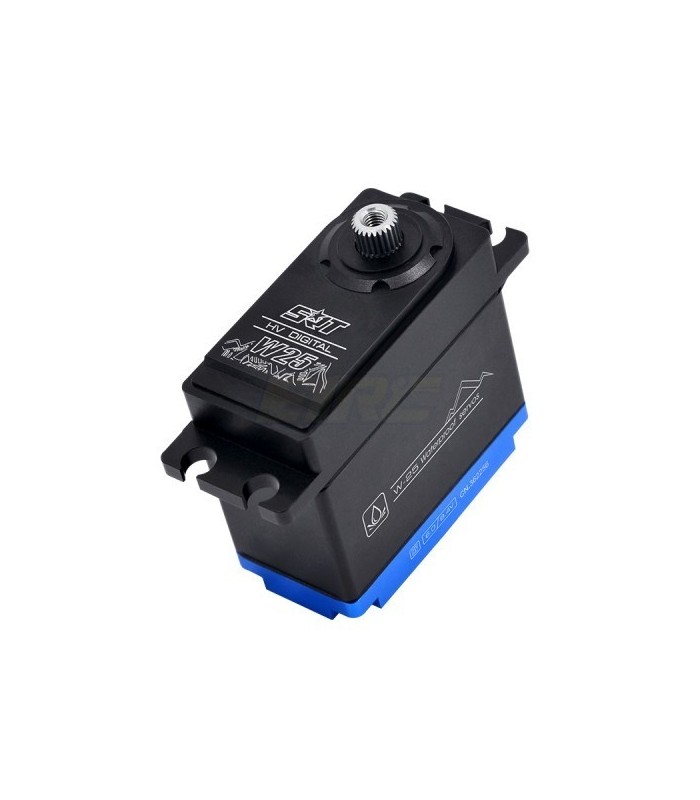

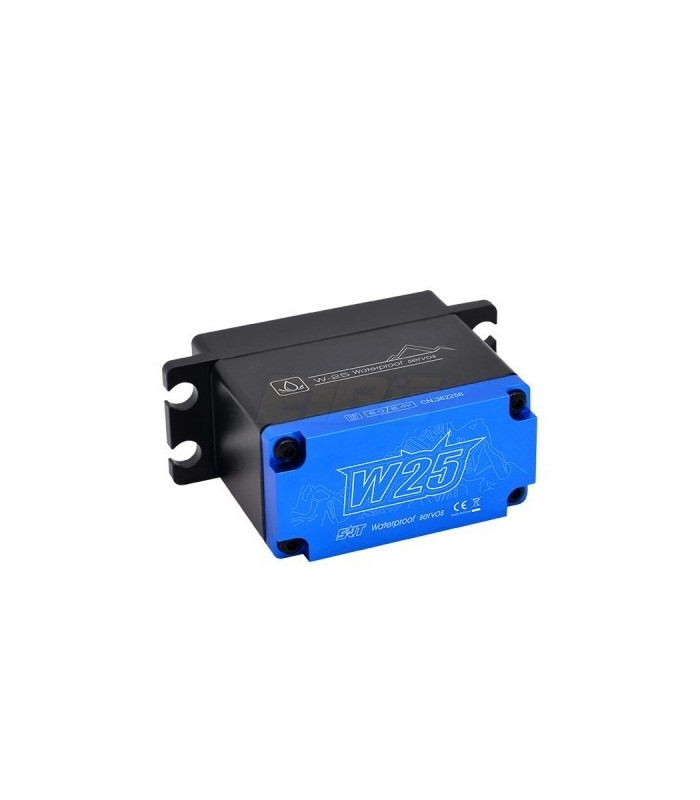

25kg 0.14S HV digital servo with metal case and waterproof.

- Ideal for 1/10 on-road and 1/8 off-road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft

Application :
1/10 on-road, 1/10 off-road, 1/8 on-road, 1/8 off-road, as well as large scale airplanes, jets, and electric boats

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520?s / 330Hz
Operating Voltage: dc6.0-7.4V
Operating Temperature Range: -10 to +60 degrees
Operating Speed (6.0V): 0.16 sec/60 degrees at no load
Operating Speed (7.4V): 0.14 sec/60 degrees at no load
Stall Torque (6.0V): 23.0 kg.cm (319.4 oz/in)
Stall Torque (7.4V): 25.0 kg.cm (347.2 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.7x20.5x38.6 mm / 1.6x0.8x1.52 in
Weight: 72.0g (2.54 oz)
Connector Wire Length: JR 360 mm

SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle, airplane, boat, or robot application. These are standard size servos for High-Voltage applications up to 8.4V, featuring all-metal case construction for ultimate performance.
