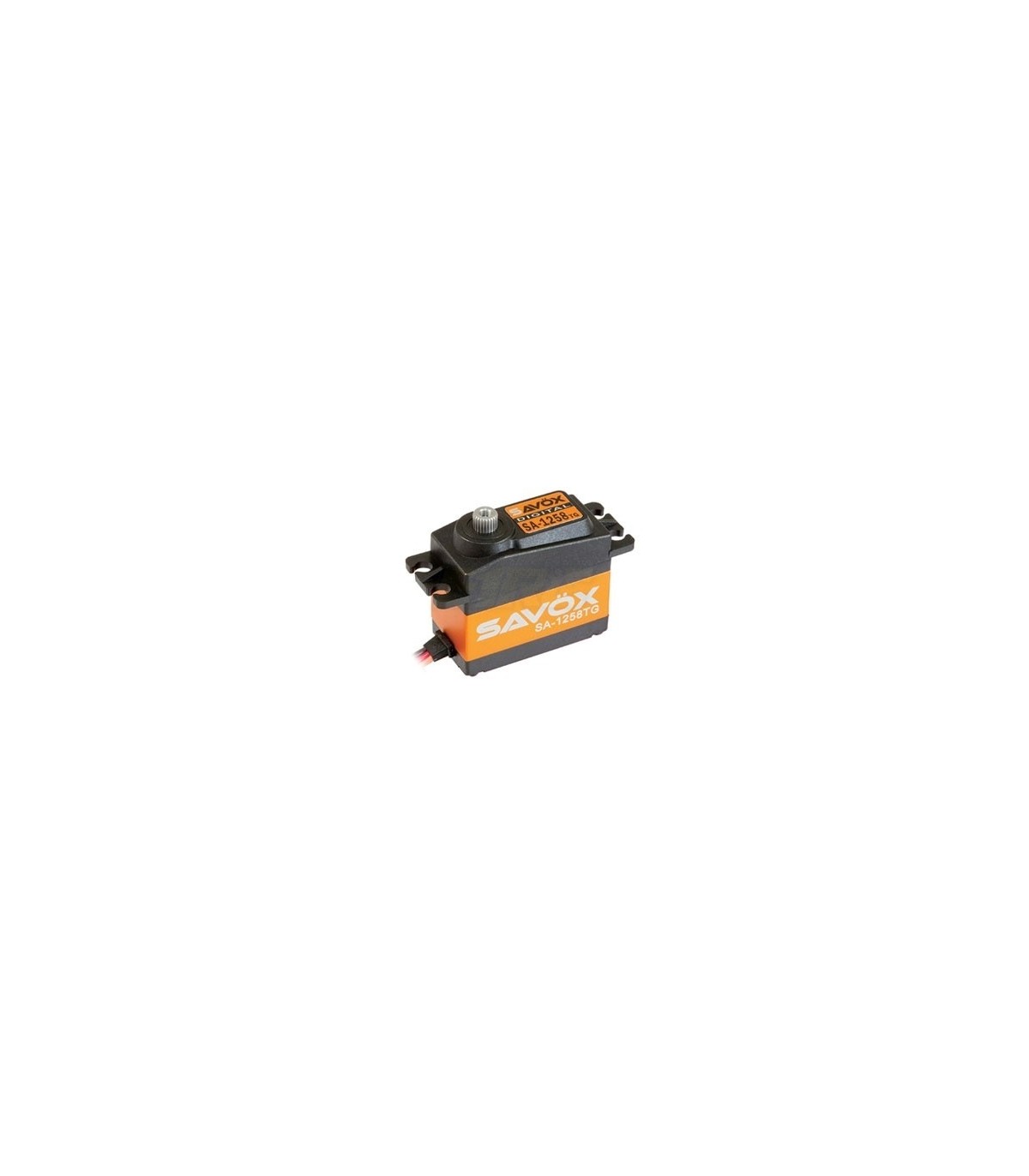

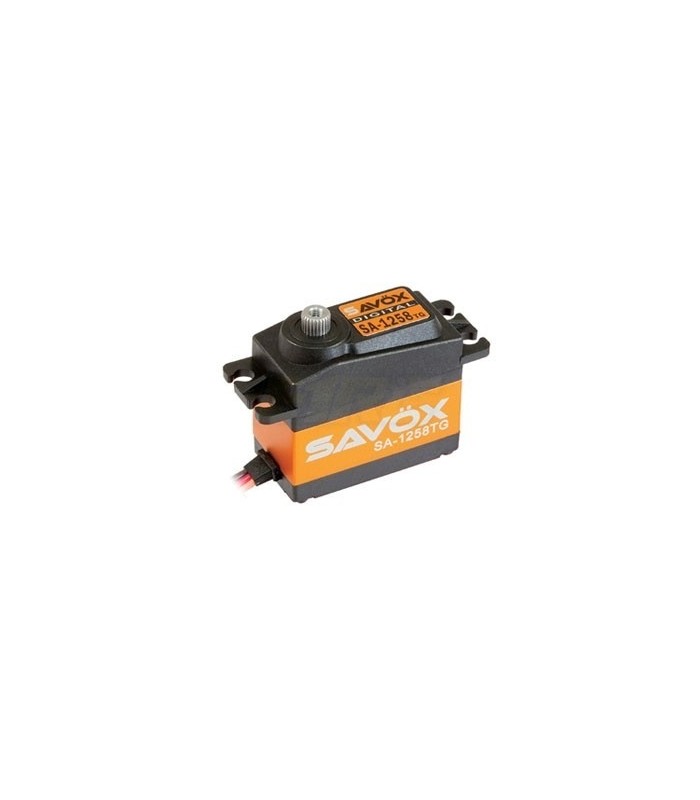

Savox 1258

The SC1258TG is a high-speed standard size servo that combines cutting-edge technology with a super high resolution of 12 bits (4096) for smooth operation.

FEATURES:

Extremely strong titanium gears ensure long life, durability, and lightweight.
Ideal for CCPM in 600 and 700 class helis, steering servo in 1/10 scale buggies.
Aluminum mid case for cooler operating temperatures.

SPECIFICATIONS:

Torque @ 4.8v - 9.6kg / 133.3oz-in
Torque @ 6v - 12.0kg / 166.6oz-in
Speed @ 4.8v - 0.10 sec/60°
Speed @ 6v - 0.08 sec/60°

Operating Temperature: 14°F - 122°F (-10°C - 50°C)
Operating Current (no load): 100mA @ 4.8V, 120mA @ 6.0V
Stall Current (at lock): 4000mA @ 4.8V, 5000mA @ 6.0V
Idle Current: 5mA @ 4.8V, 5mA @ 6.0V
Cable Length: 250 +/- 5 mm
Output Gear Spline: 25 teeth
Bearings: 2BB
Operating Travel: 100° (1000 ? 2000 µ seconds)
Neutral Position: 1500 µ seconds
Pulse Width Range: 800 ? 2200 µ seconds
Maximum Travel: Appx 130° (900 ? 2100 µ seconds)
Update Frequency: 333 Hz
Motor Type: Coreless
