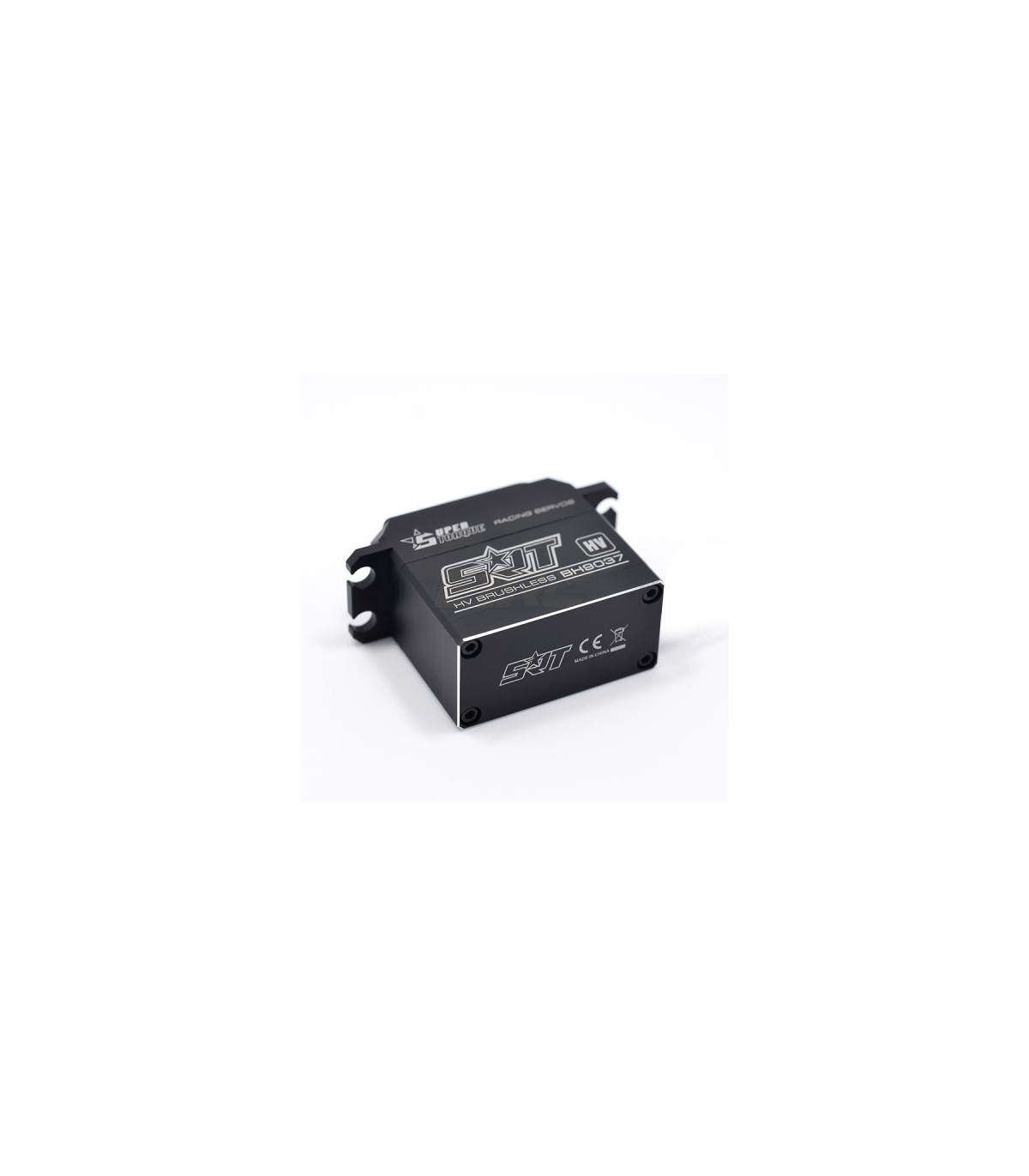

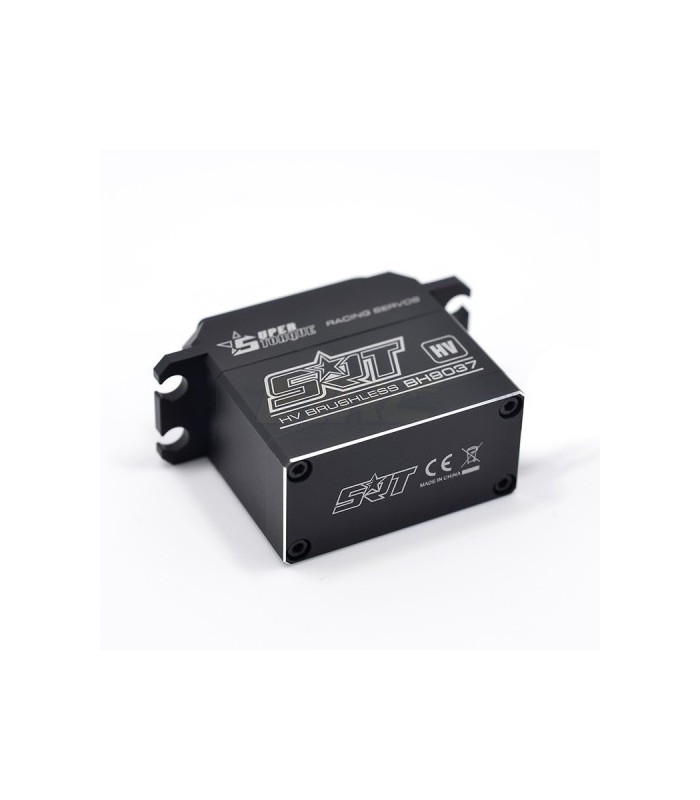

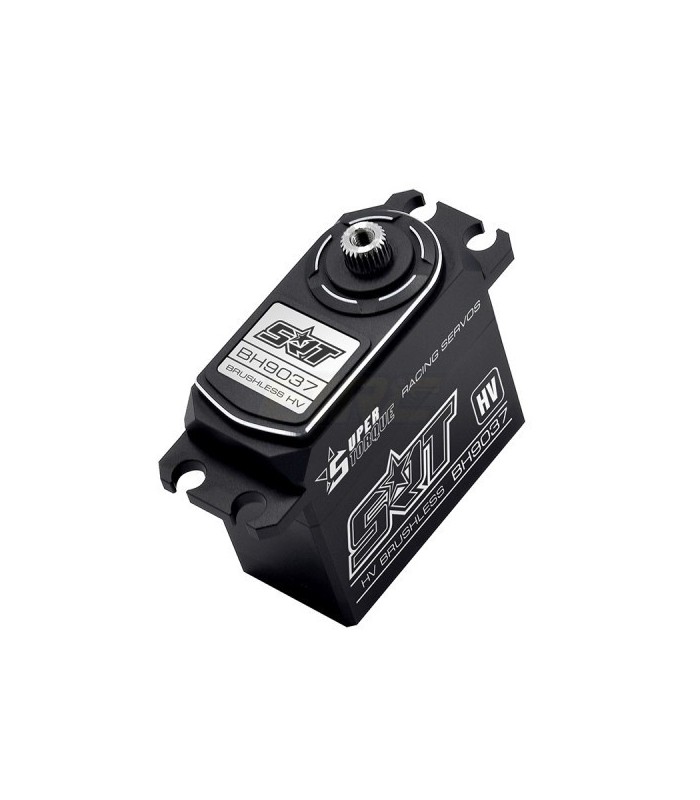

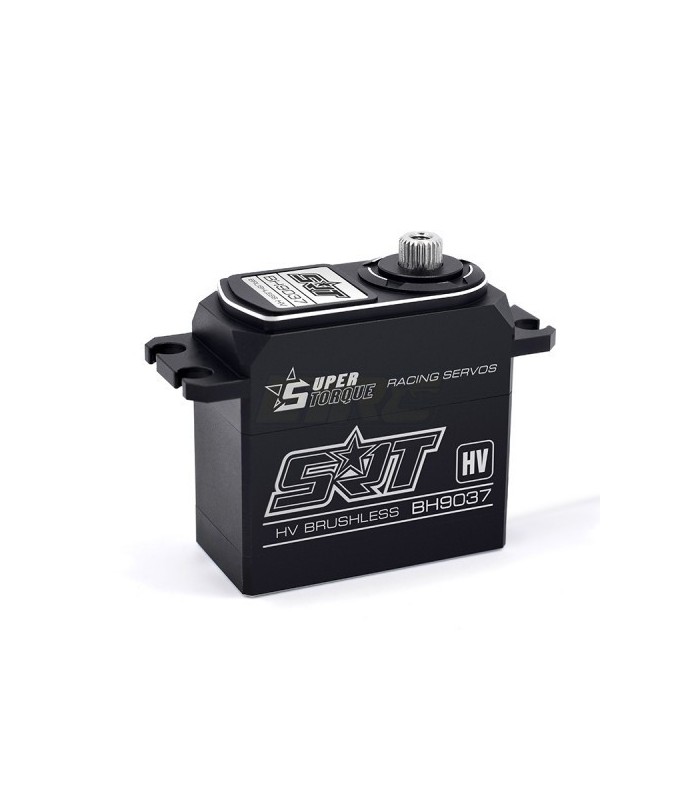

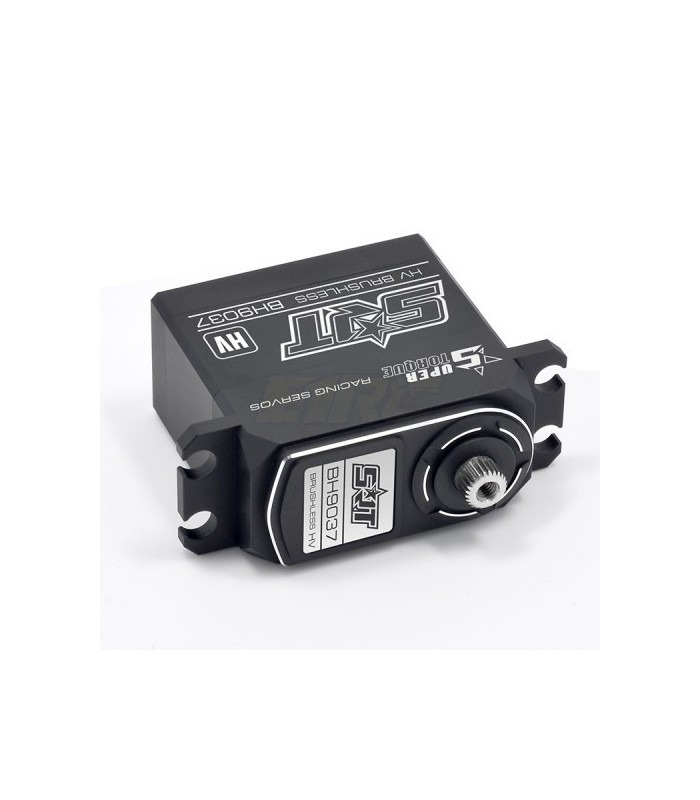

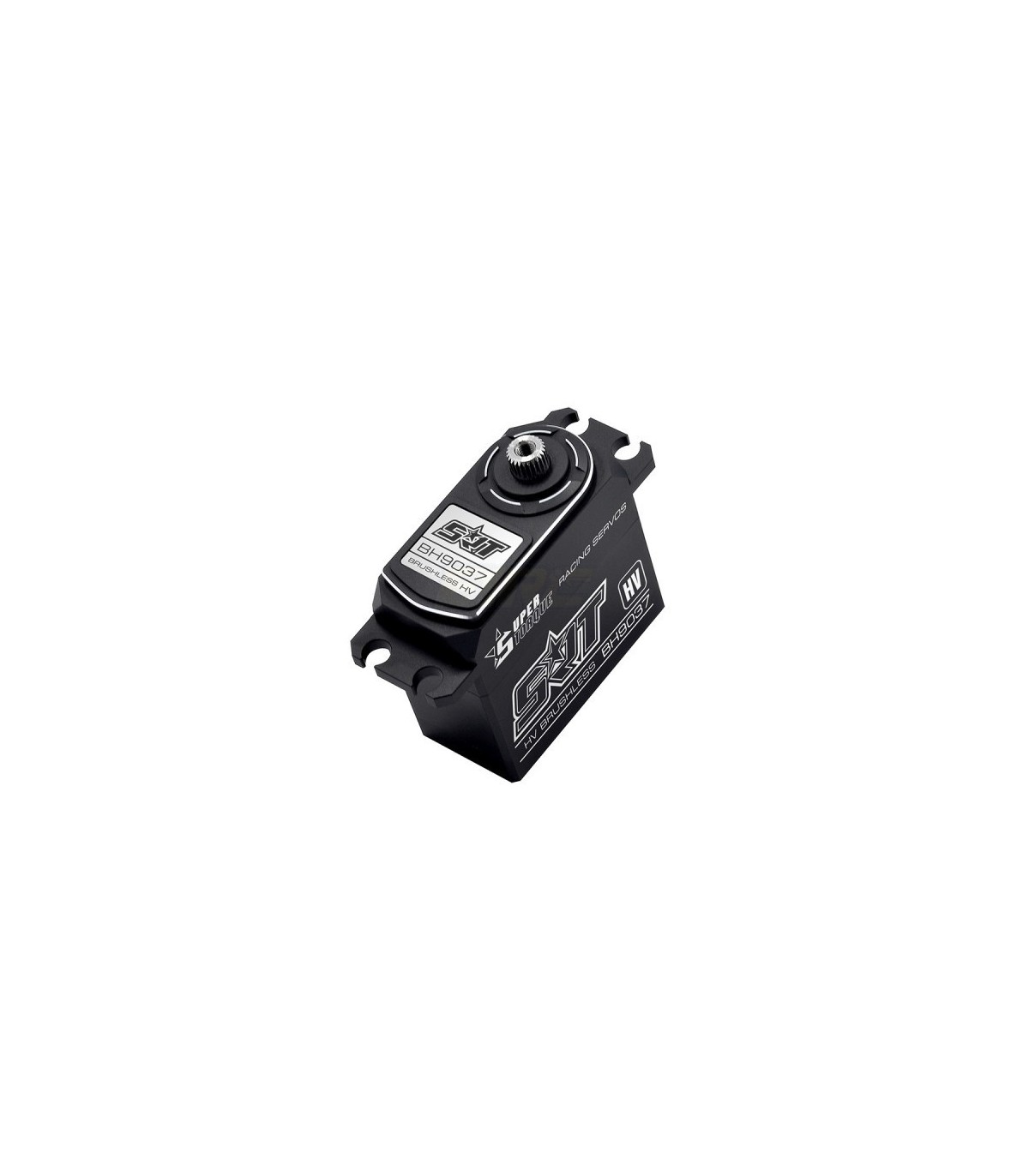

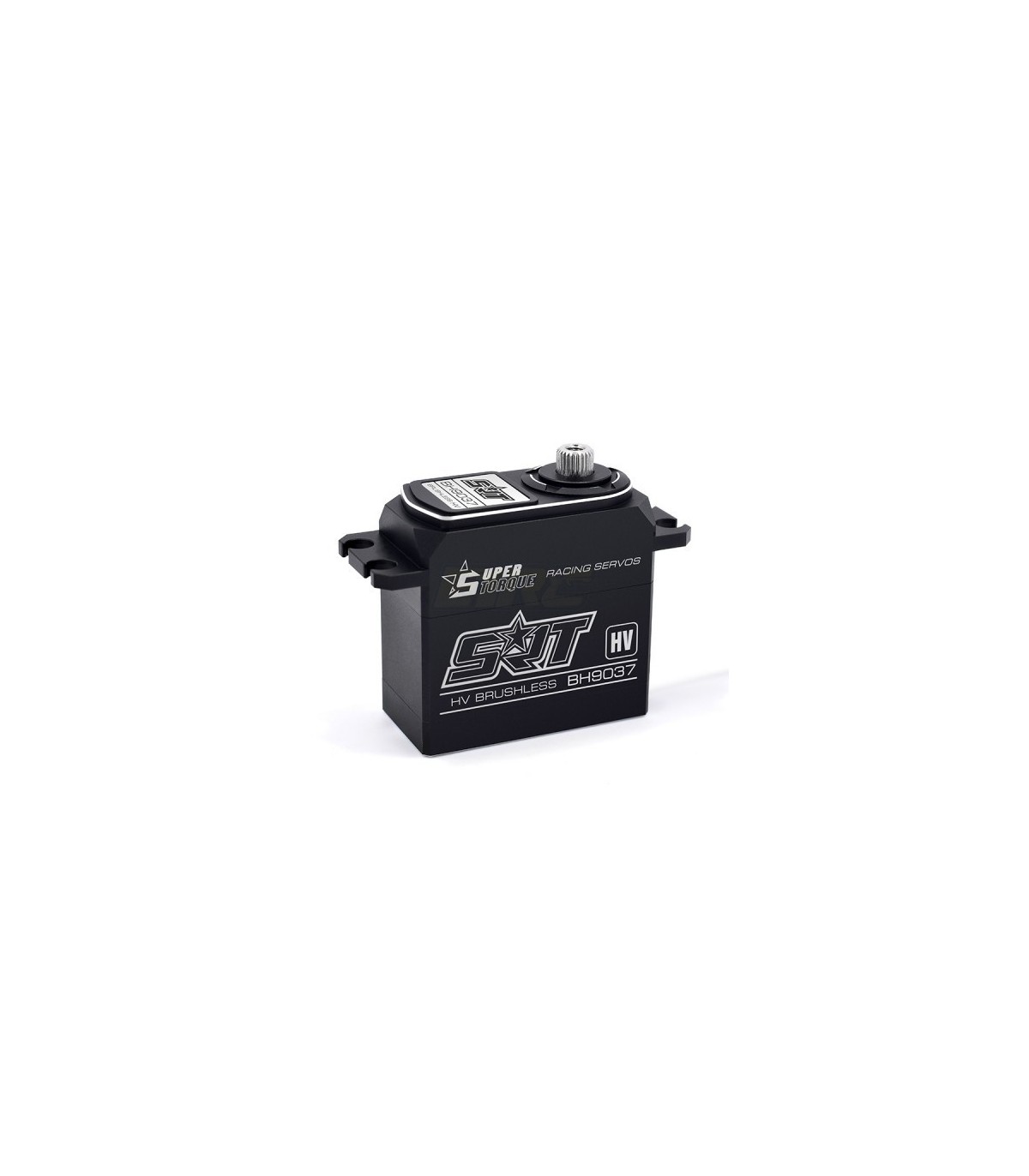

37kg 0.13S HV brushless servo with metal case

- Ideal for 1/5 On road applications, as well as large scale airplanes and jets
- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimensions make it perfect for vehicles that can benefit from a high-quality servo

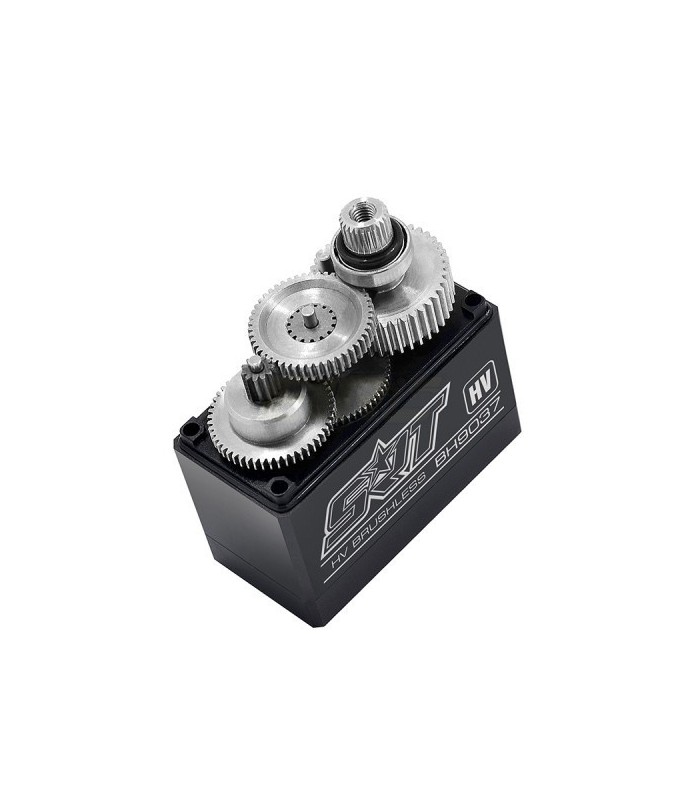

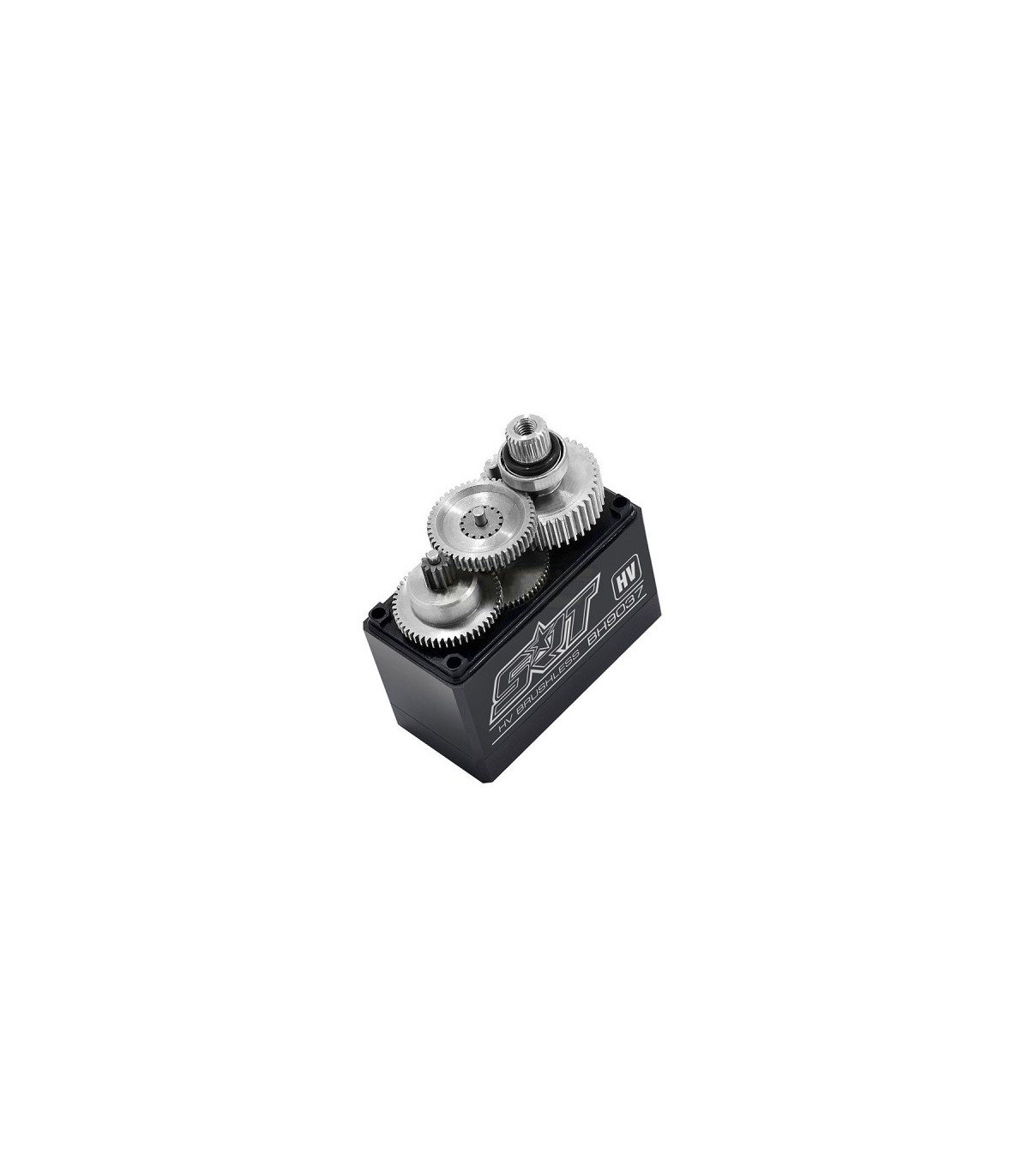

- Titanium & Steel gears for precision and durability
- CNC Machined aluminum case for exceptional cooling
- NMB dual main bearings
- 25T output shaft
- HD 4096 Resolution
- 2 ?sec Dead Band

Application :
1/5 on-road, 1/5 Off-road, 1/8 Off-road, Airplane

PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequency: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degrees
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
operating speed (8.4v): 0.13 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 35.0kg.cm (486.0 oz/in)
stall torque (8.4v): 37.0kg.cm (513.8 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm / 1.57x0.79x1.49 in
weight: 80.0g (2.82 oz)
connector wire length: JR 250 mm

SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle application. Are standard size servos for High-Voltage applications up to 8.4V, feature all-metal case construction for the ultimate performance.
