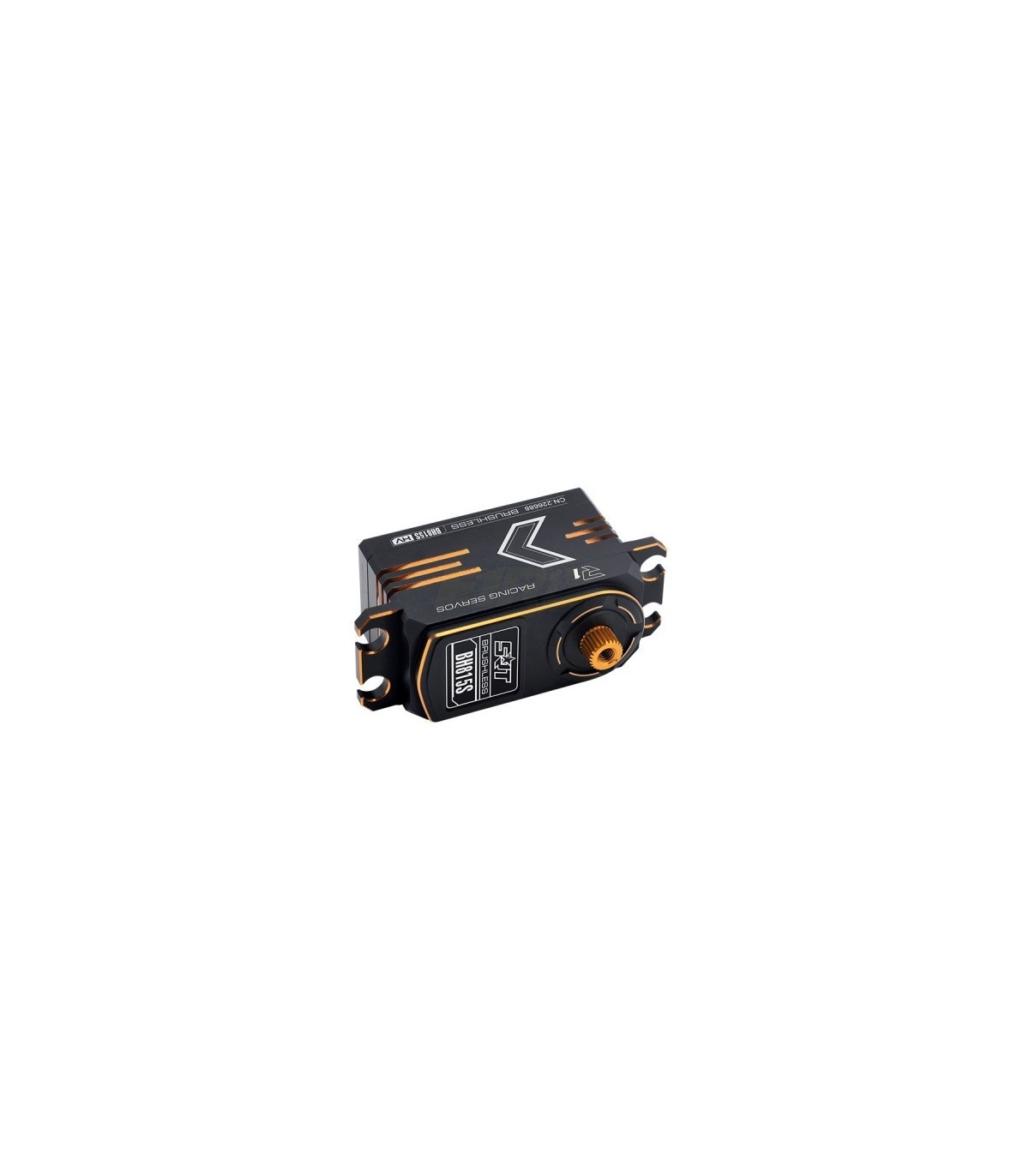

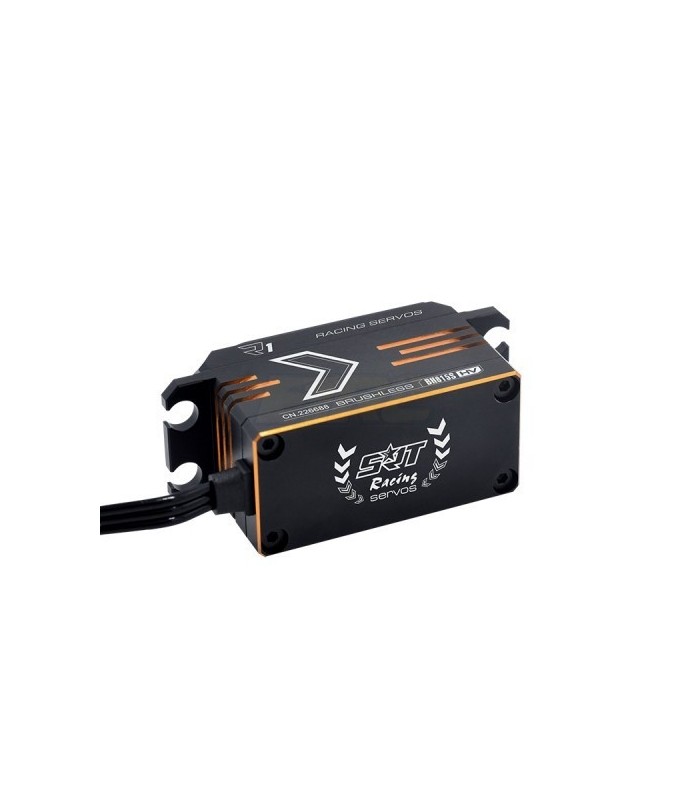

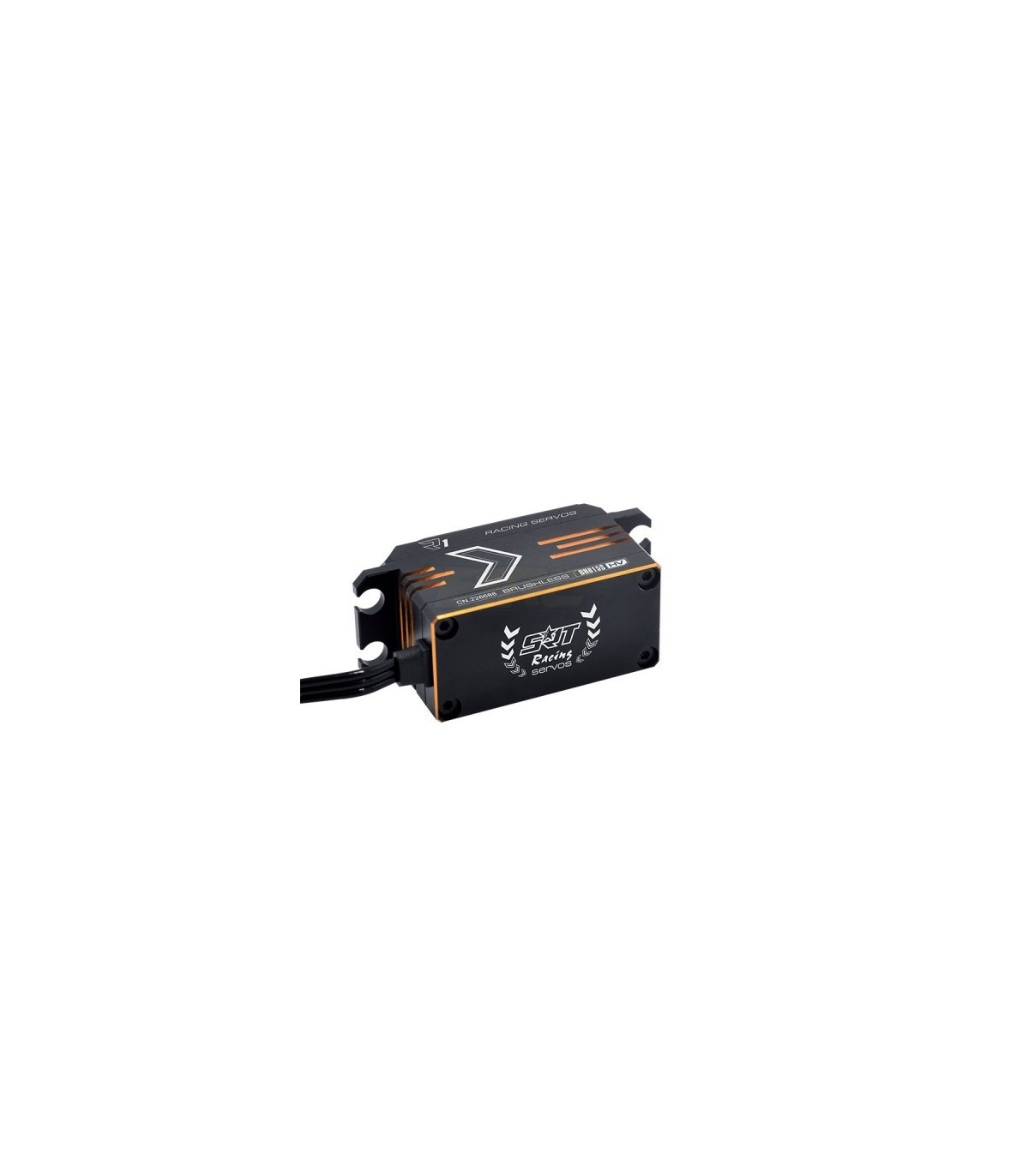

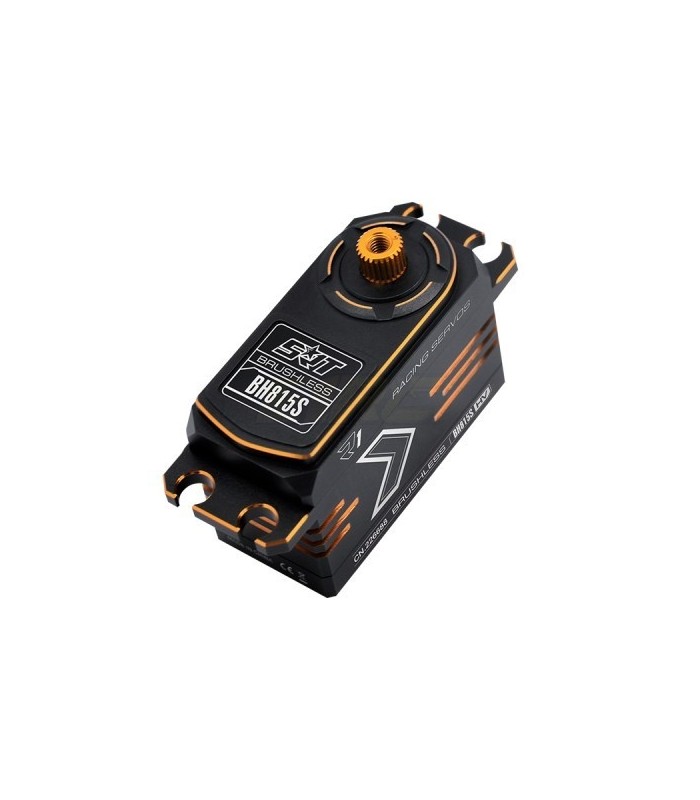

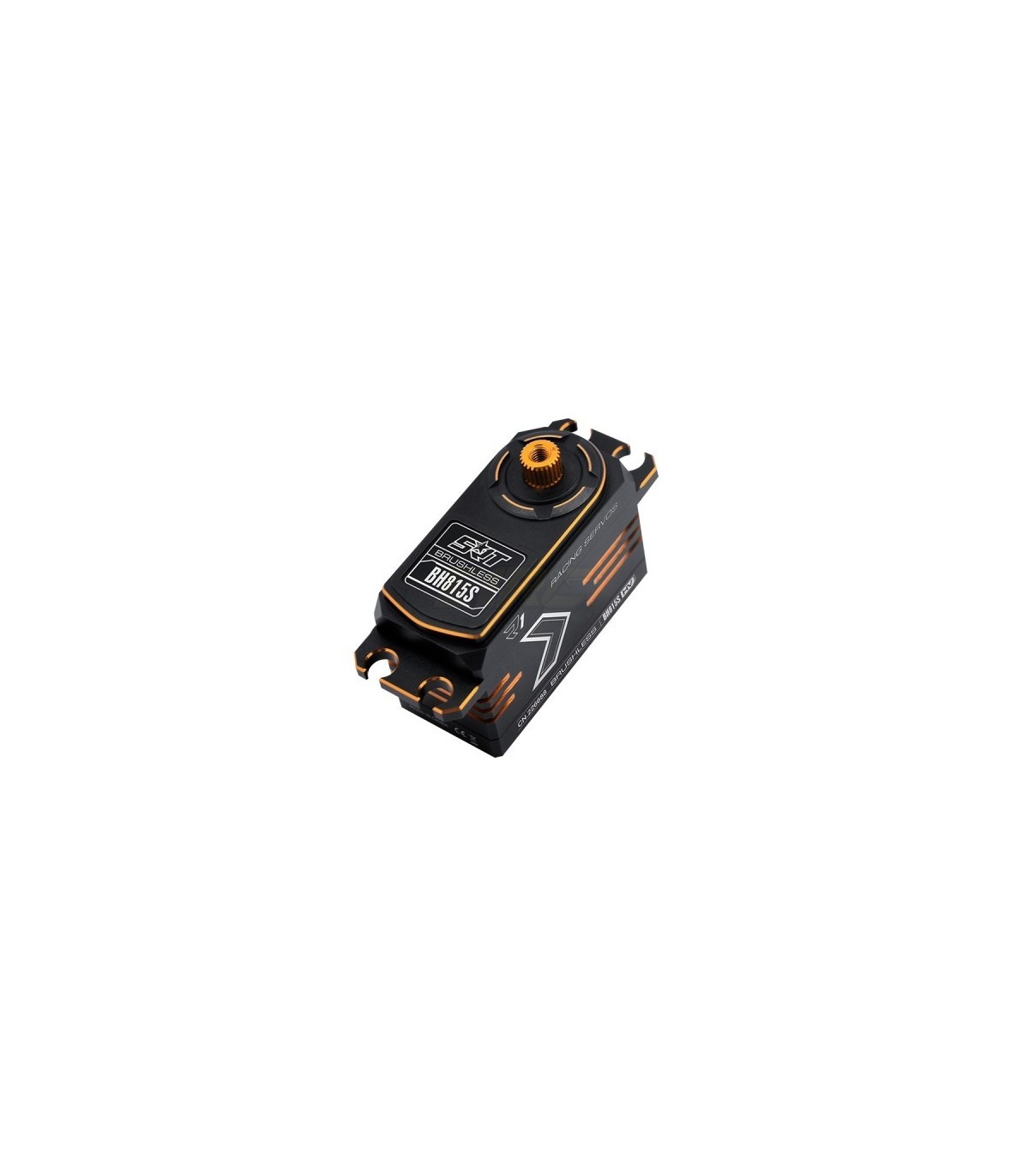

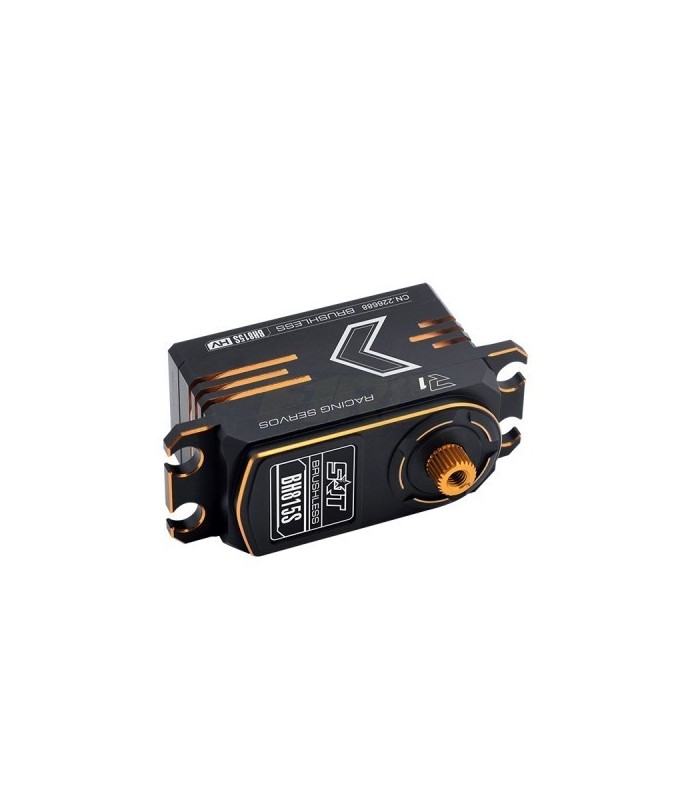

Servo 15kg 0.05S low profile SRT HV brushless with metal case

- Unique Mechanic Design
- Incredible efficiency and low power consumption
- The standard dimensions make it perfect for vehicles that can benefit from a high-quality servo.
- CNC machined aluminum case for outstanding cooling performance
- SSR mode compatible
- 2 seconds Dead Band
- Superior Holding Torque

Application:

1/10 On-road & 1/8 On-road


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Material de los engranajes: Titanio y Aluminio
Control system: pulse width control
Working frequency: 1520 Hz / 330 Hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to +60 degrees
Operating speed (6.0v): 0.065 sec/60 degrees at no load
Operating speed (7.4v): 0.055 sec/60 degrees at no load
Operating speed (8.4v): 0.050 sec/60 degrees at no load
Stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
Stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
Stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
Potentiometer drive: direct drive
Dimensions: 41.0x20.0x26.4 It appears that the text provided is incomplete. Can you please provide more context or clarify your request?1.61x0.79x1.04 in
Peso: 52.0g (1.83 oz)
Connector wire length: 180 mm
