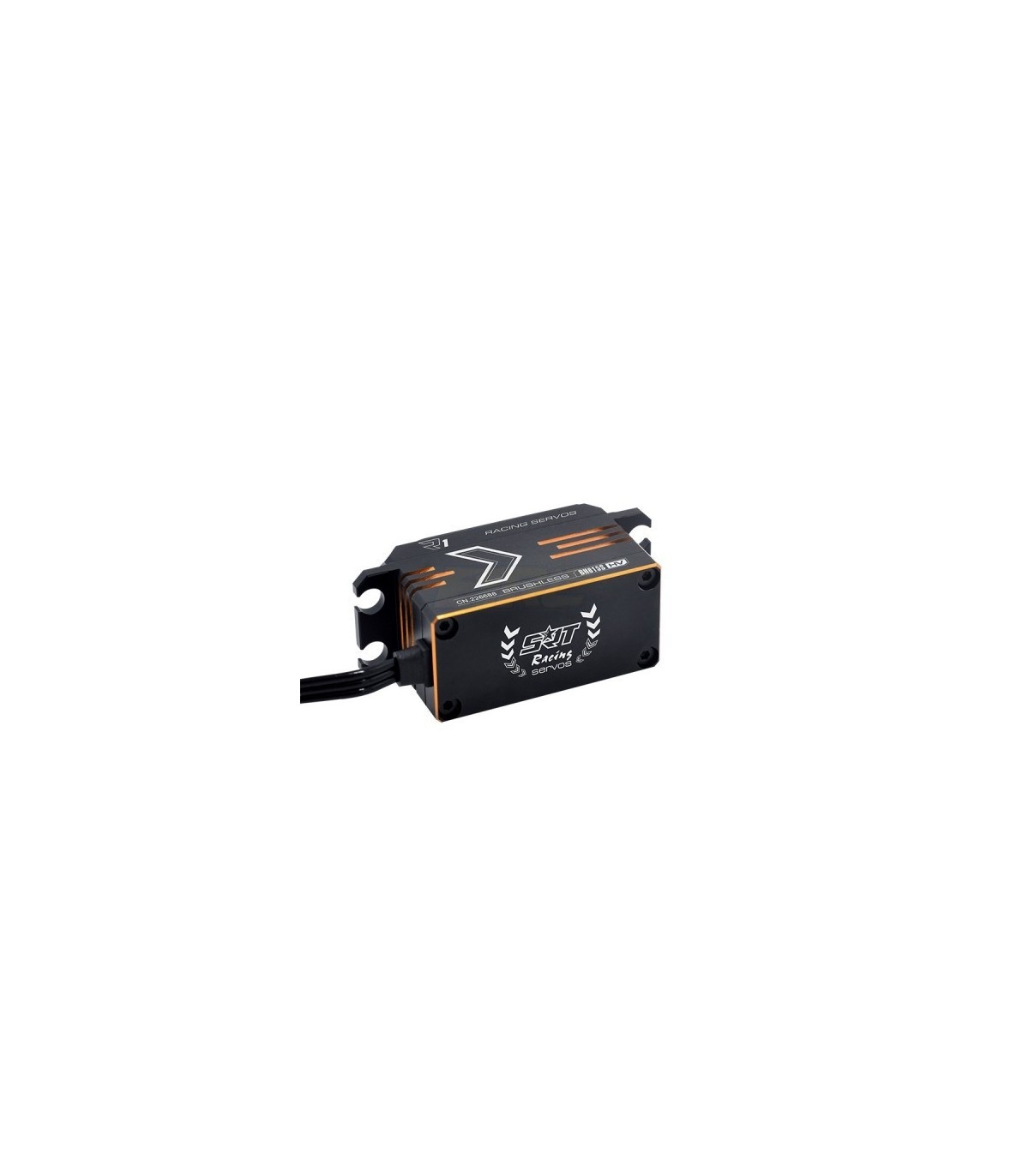

Servo 15kg 0.05S perfil bajo SRT HV brushless con caja metalica

- Unique Mechanic Design
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- SSR mode compatible
- 2 ?sec Dead Band
- Superior Holding Torque

Application :

1/10 On-road & 1/8 On-road


PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
Control system: pulse width control
Working frequence: 1520?s / 330hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to + 60 degree
Operating speed (6.0v): 0.065 sec/60 degrees at no load
Operating speed (7.4v): 0.055 sec/60 degrees at no load
Operating speed (8.4v): 0.050 sec/60 degrees at no load
Stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
Stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
Stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
Potentiometer drive: direct drive
Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
Weight: 52.0g (1.83 oz)
Connector wire length: jr 180 mm
