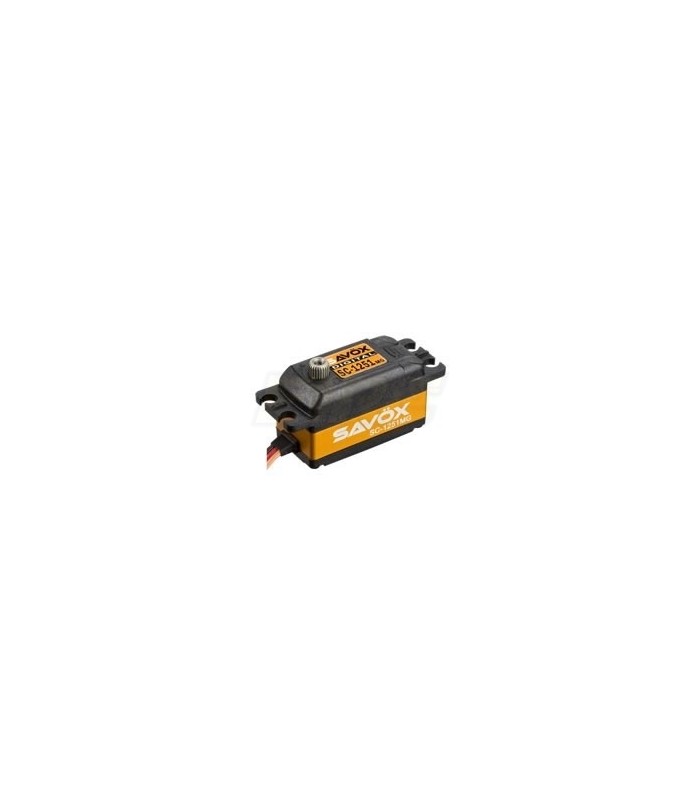

Savox 1251

The SC-1251MG is a high-speed, low-profile servo that combines cutting-edge technology with a super high 12-bit (4096) resolution.

FEATURES:

The metal gear train ensures durability in tough situations.
Ideal for 1/10 on-road vehicles.
Aluminum case provides cooler operating temperatures.

SPECIFICATIONS:

Torque @ 4.8v - 7.0kg / 97.2oz-in
Torque @ 6v - 9.0kg / 125.0oz-in
Speed @ 4.8v - 0.10 sec / 60 degrees
Speed @ 6v - 0.09 sec / 60 degrees

Operating Temperature: 14 ° - 122 ° F (-10 ° - 50 ° C)
Operating Current (no load): 150mA @ 4.8V, 180mA @ 6.0V
Stall Current (locked): 2000mA at 4.8V, 3000mA at 6.0V
Idle Current: 5mA @ 4.8V, 5mA @ 6.0V
Cable Length: 300 +/- 5 mm
Output Gear Spline: 25 teeth
Bearings: 2BB
Operating Travel: 90 ° (1000 ? 2000 µ seconds)
Neutral Position: 1500 µ seconds
Pulse Width Range: 950 ? 2050 µ seconds
Maximum Travel: Appx 160 ° (700 ? 2300 µ seconds)
Refresh Rate: 240 Hz
Motor Type: Brushed
