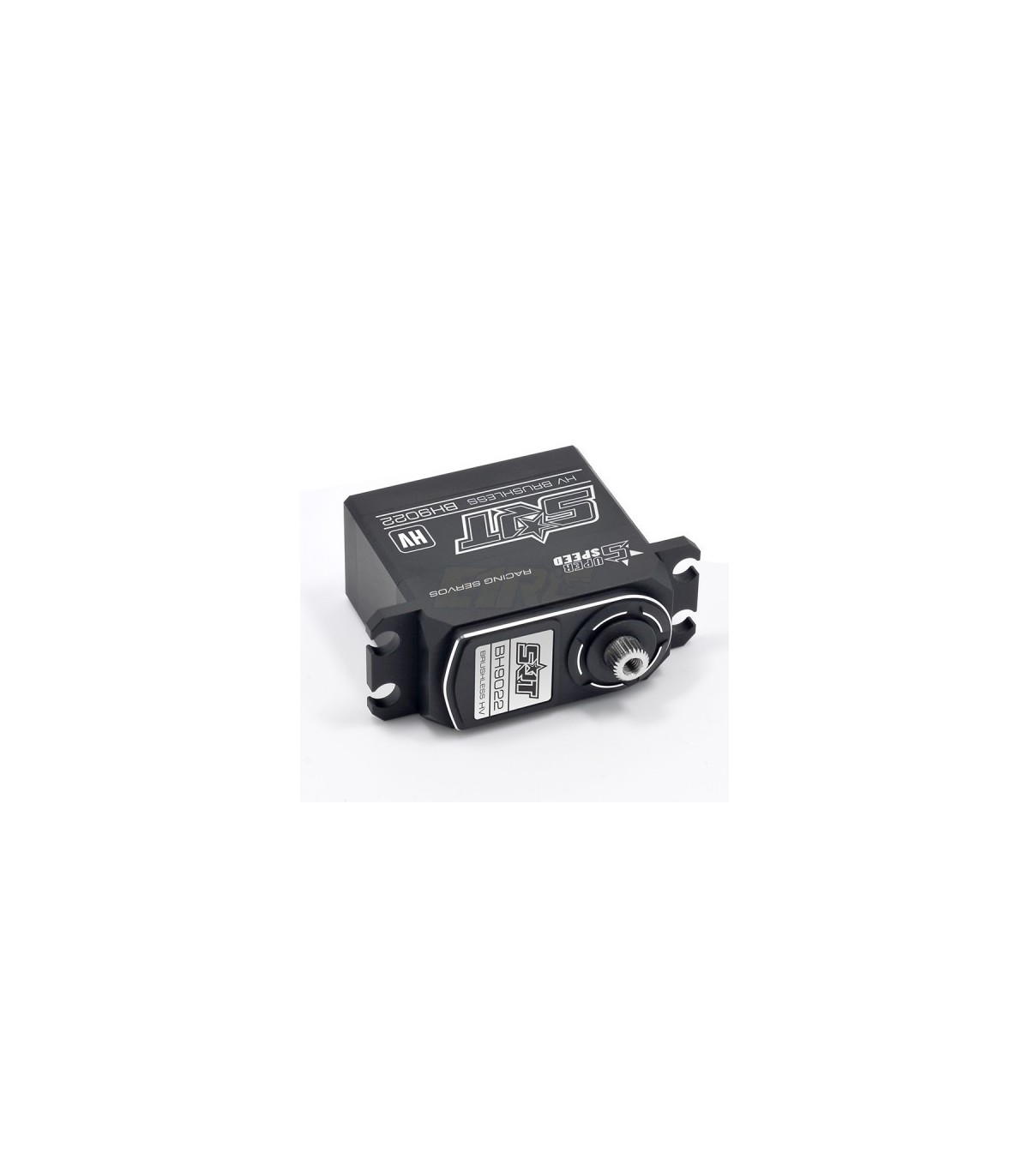

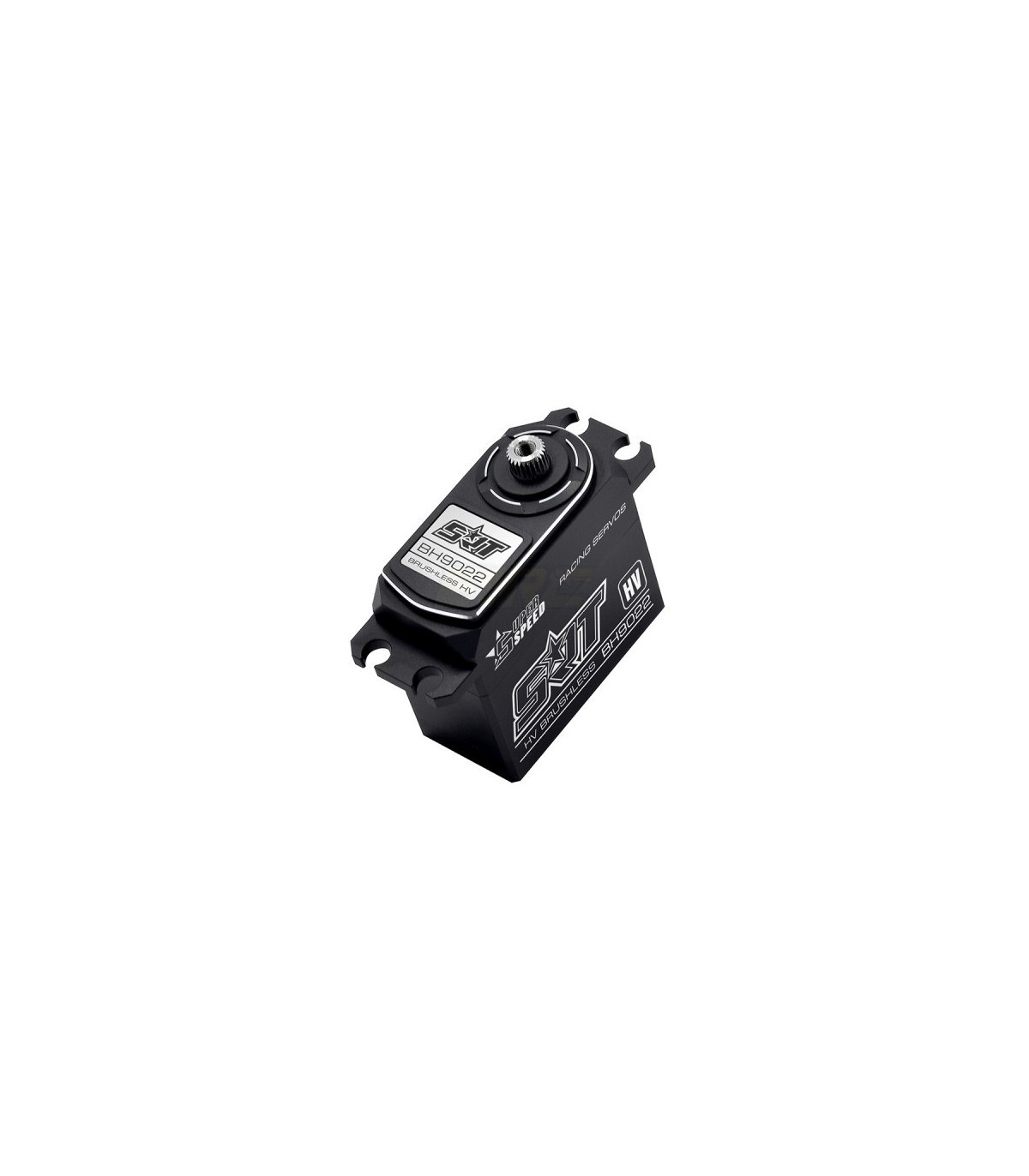

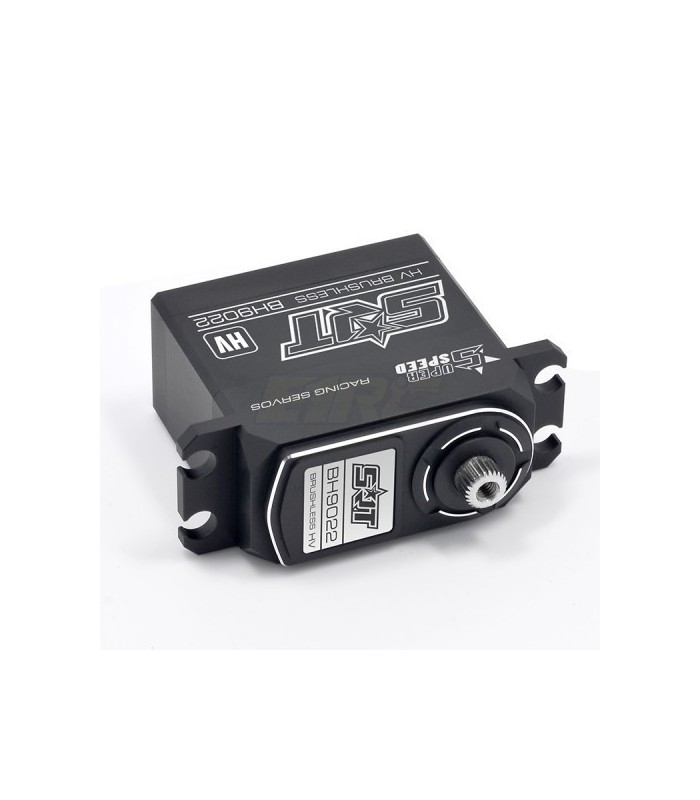

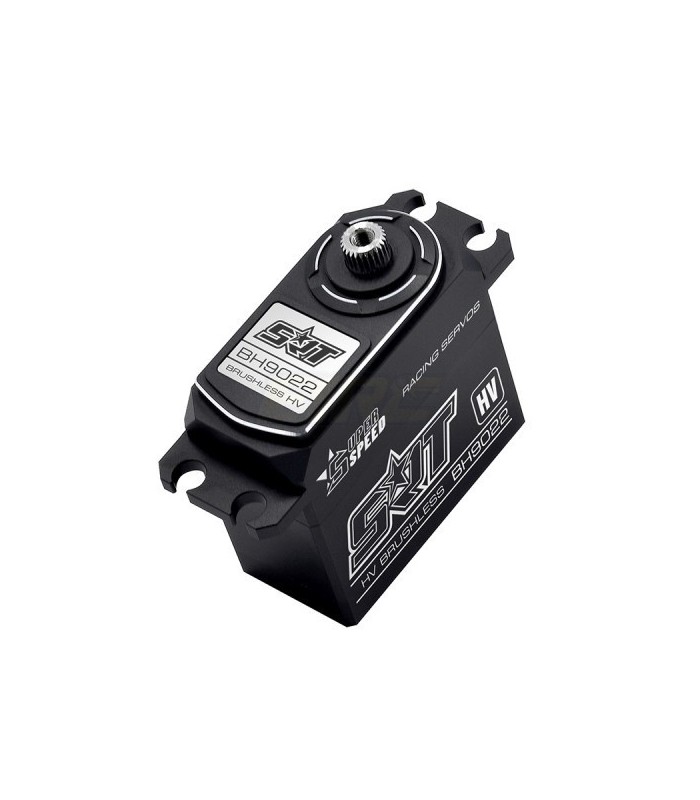

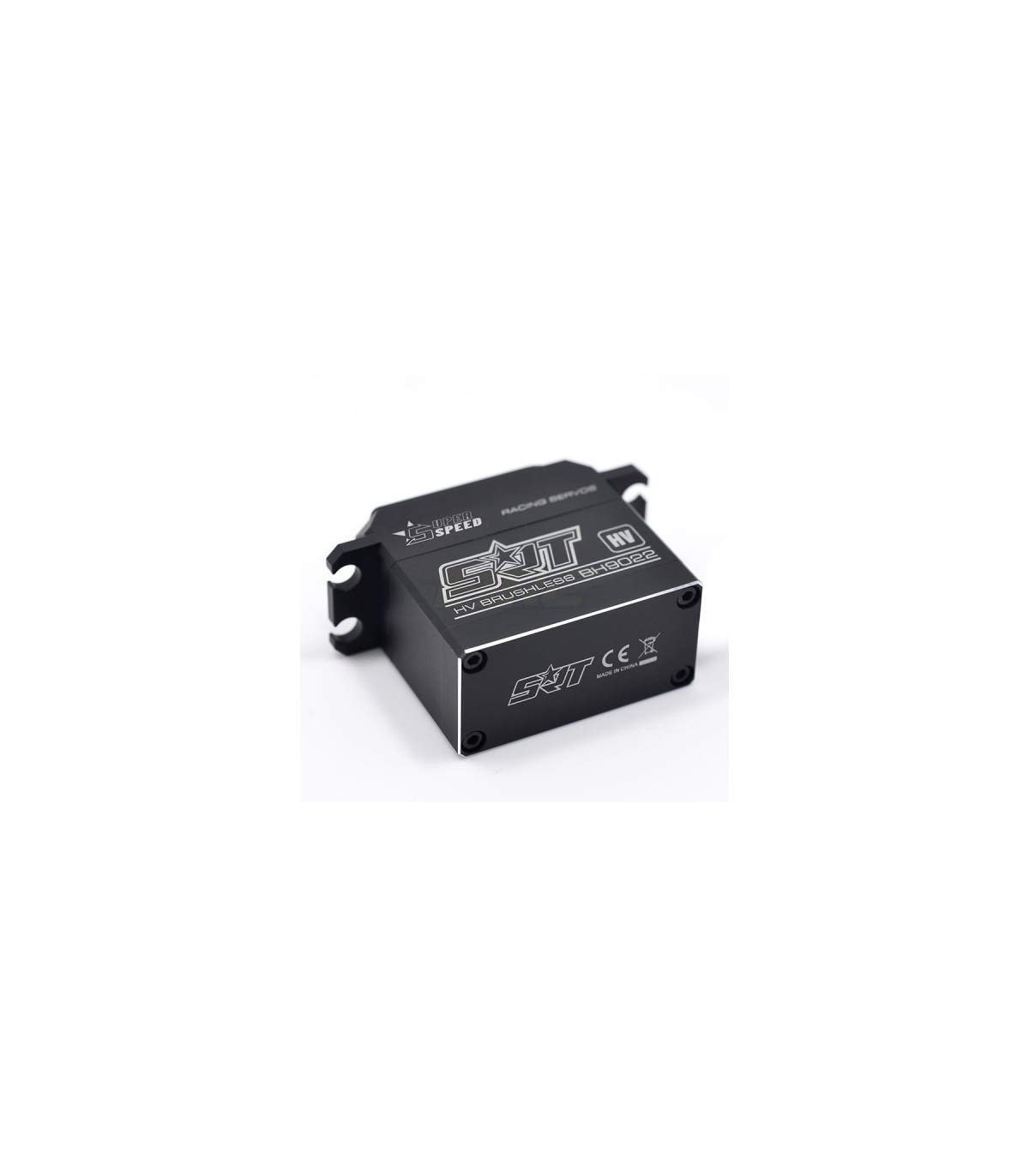

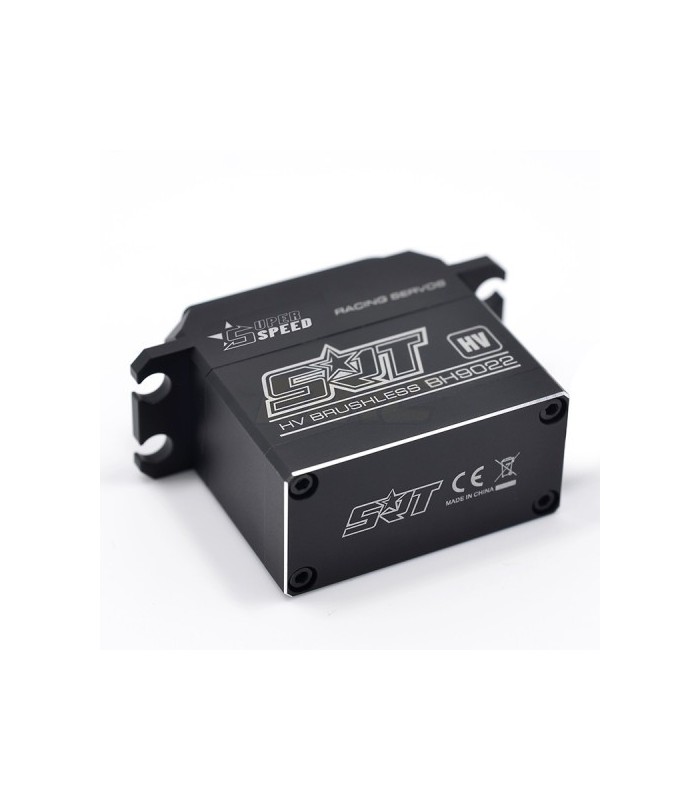

Servo 22kg 0.06S HV brushless metal case

  Ideal for 1/10 on road and 1/8 off road scale applications

-          Superior Holding Speed

-          incredible efficiency and low power consumption

-          Standard dimension make it perfect for vehicles that can benefit from a high quality servo

-          CNC Machined aluminum case for exceptional cooling

-          NMB dual main bearings

-          25T output shaft

-          HD 4096 Resolution

-          2 ?sec Dead Band

 Application :

1/10 on road and 1/8 off road & Helicopter

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless

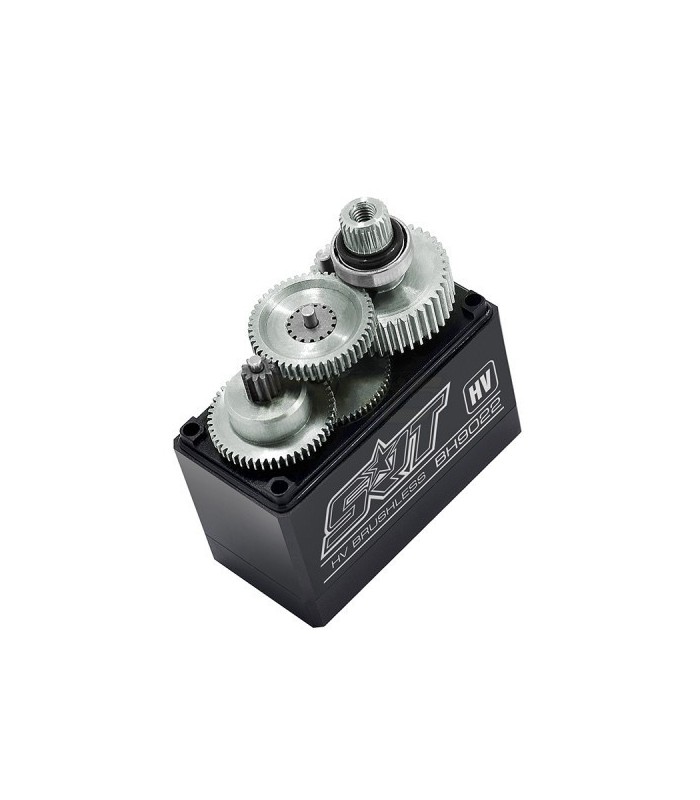

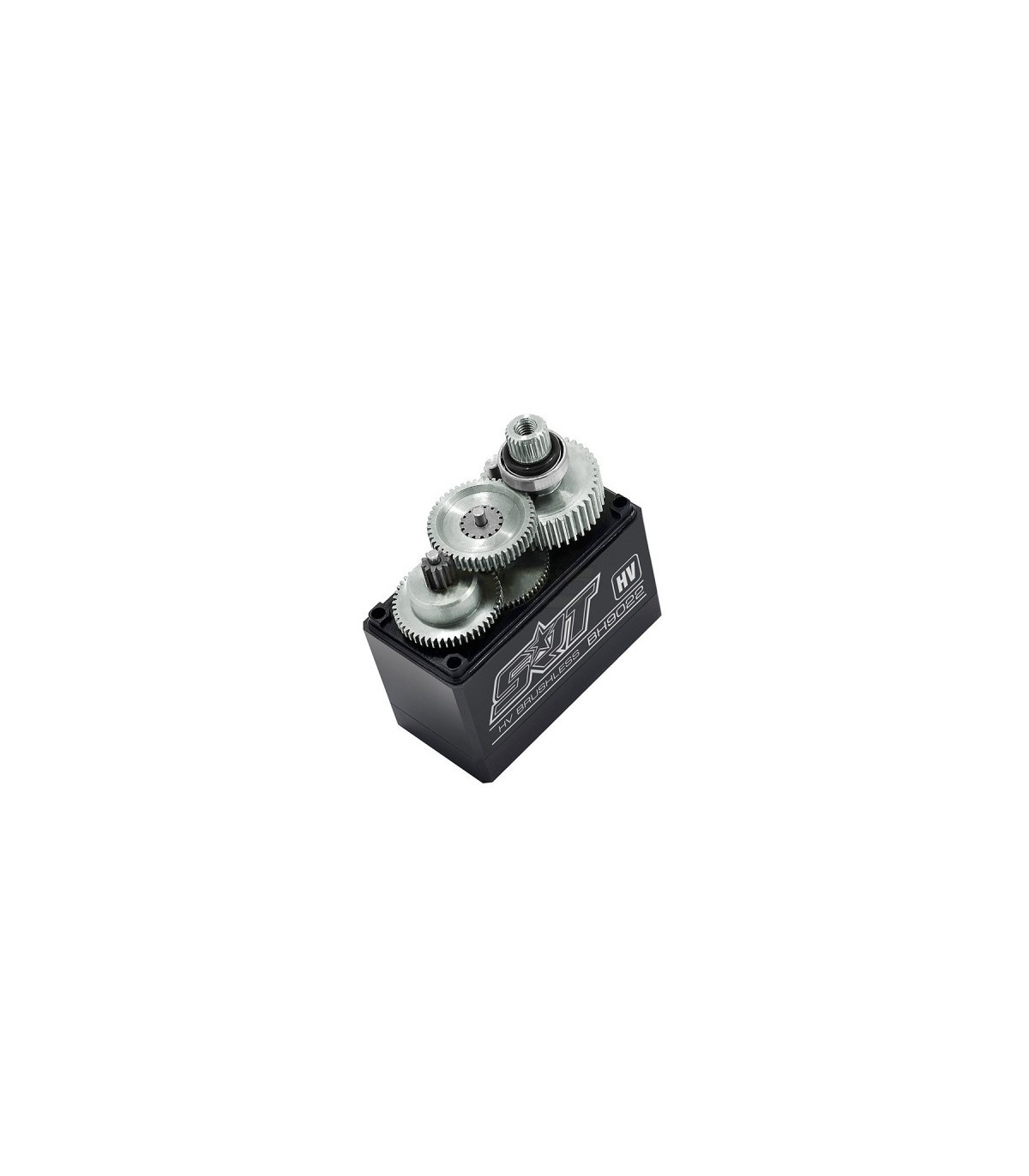

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520?s / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.085 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.060 sec/60 degrees at no load
stall torque (6.0v): 18.0kg.cm (249.9 oz/in)
stall torque (7.4v): 20.0kg.cm (277.7 oz/in)
stall torque (8.4v): 22.0kg.cm (305.5 oz/in)
potentiometer drive: direct drive

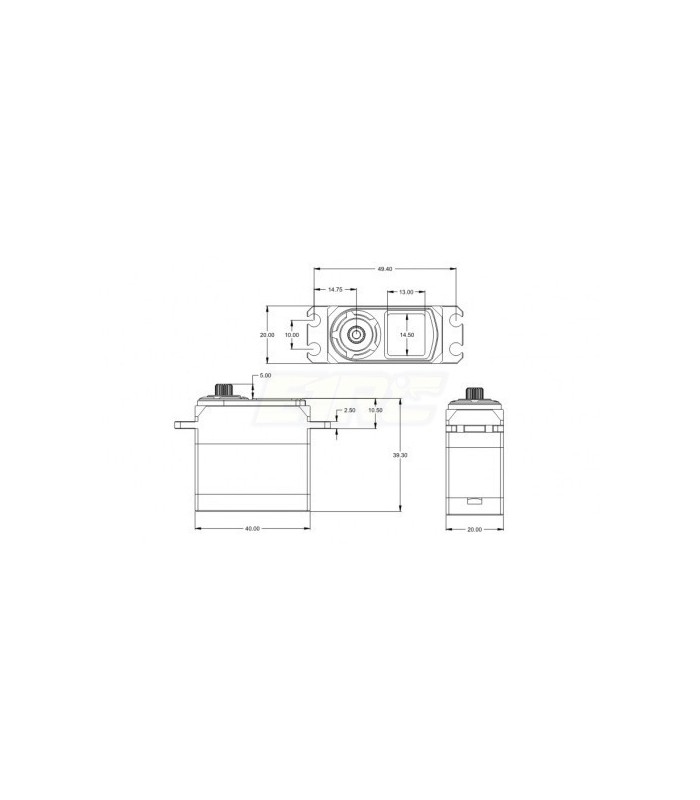

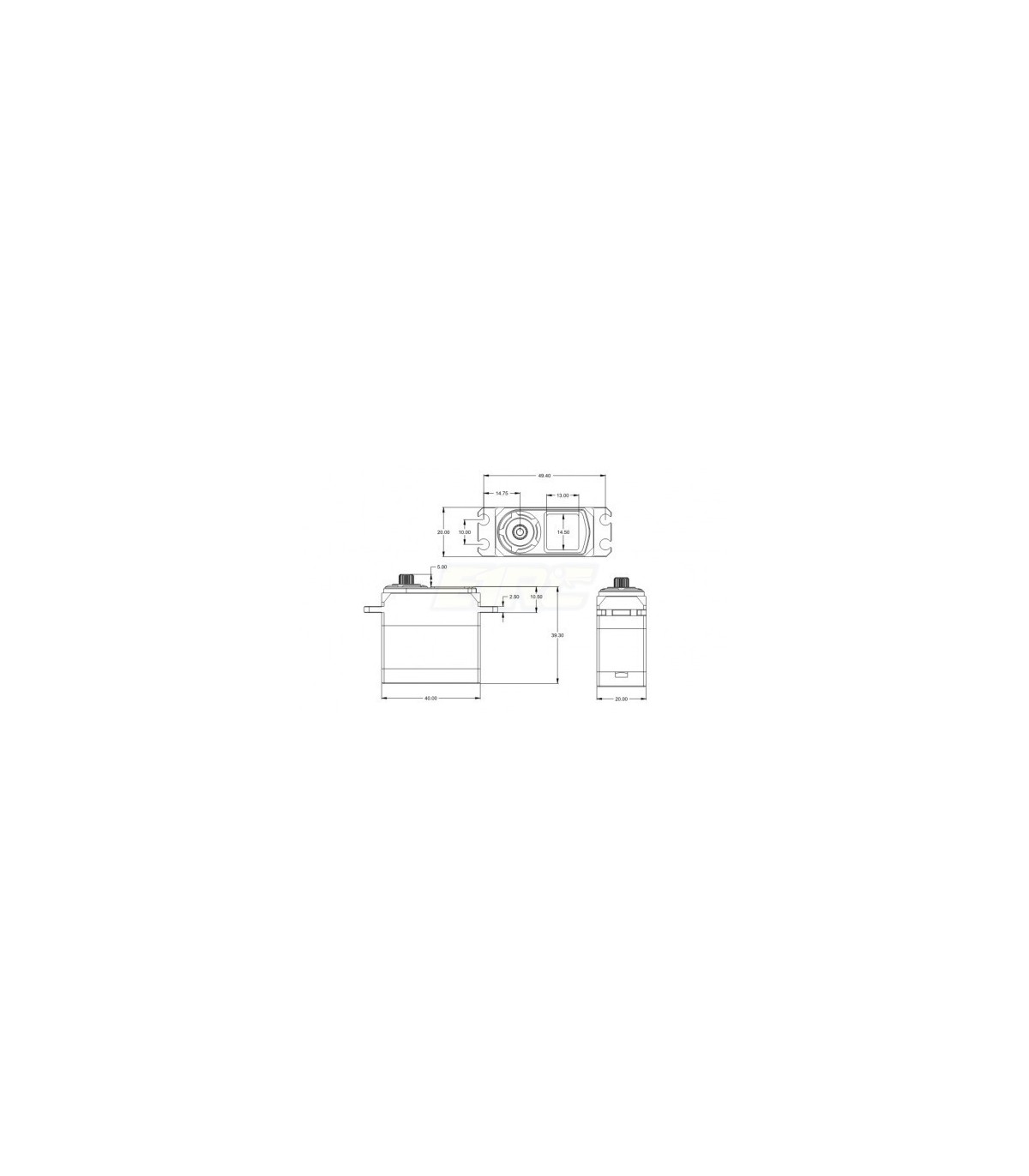

dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 250 mm

SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. These are standard size servos for High-Voltage applications up to 8.4V, featuring all metal case construction for the ultimate performance.
