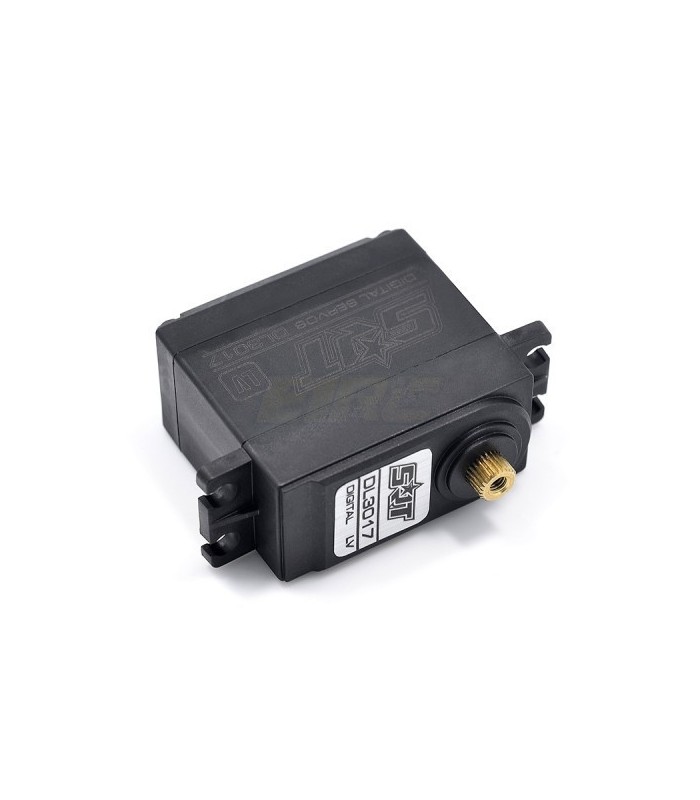

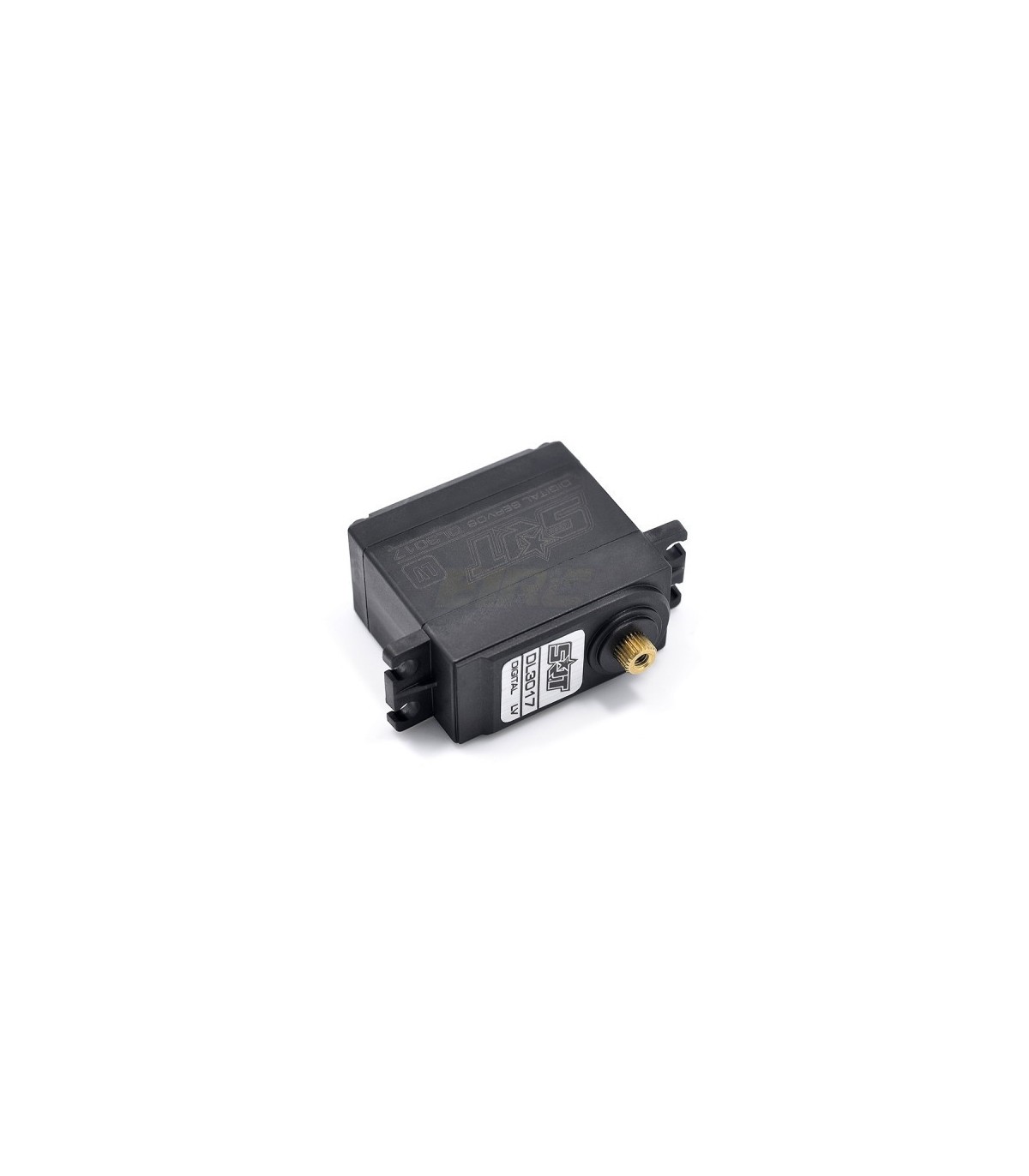

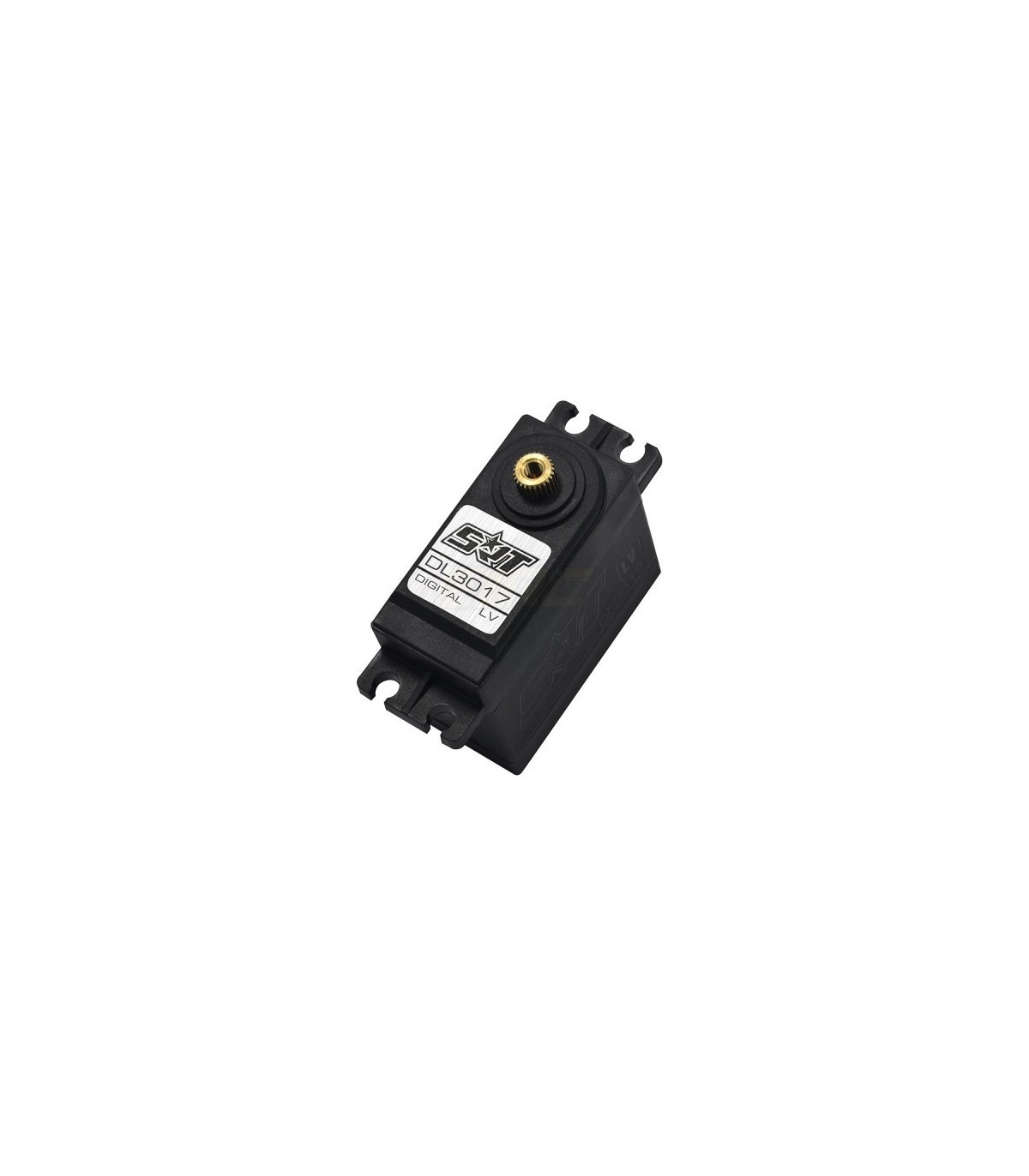

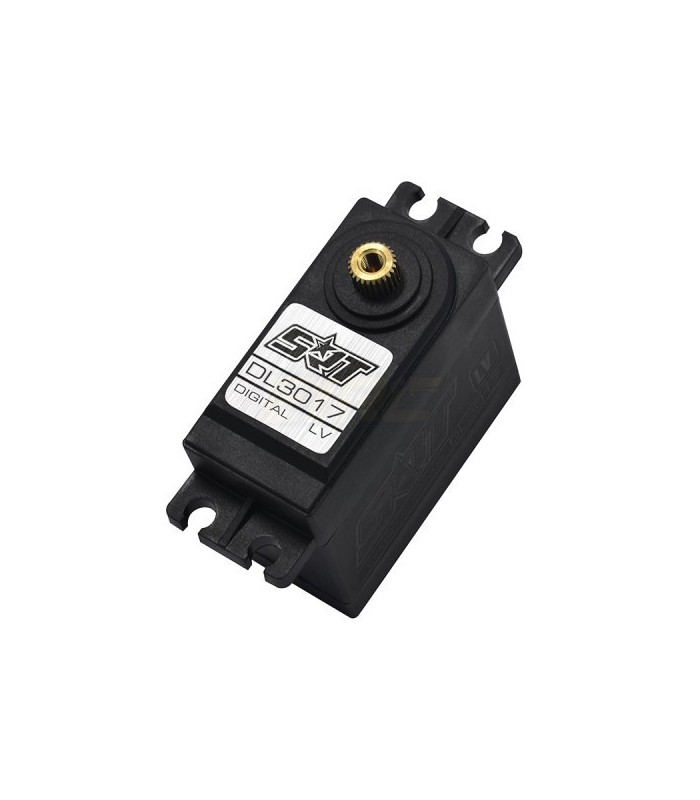

17kg 0.15S LV digital servo with plastic case

- Ideal for 1/10 on-road and 1/8 off-road scale applications, as well as large-scale airplanes and jets
- Incredible efficiency and low power consumption
- 2 ?sec Dead Band

Application:
1/10 on-road, 1/10 off-road, 1/8 on-road, 1/8 off-road, as well as large-scale airplanes and jets, electric boats, and robots

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC

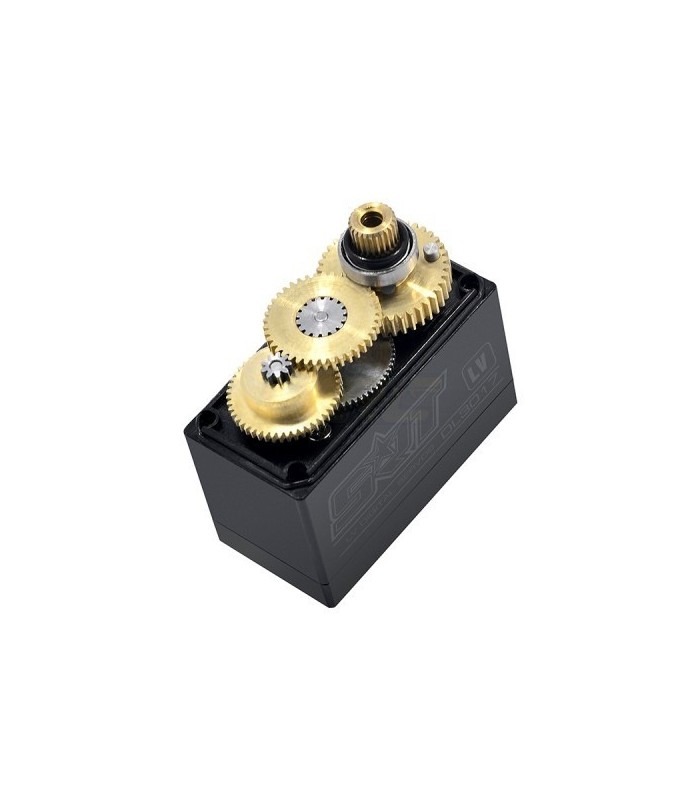

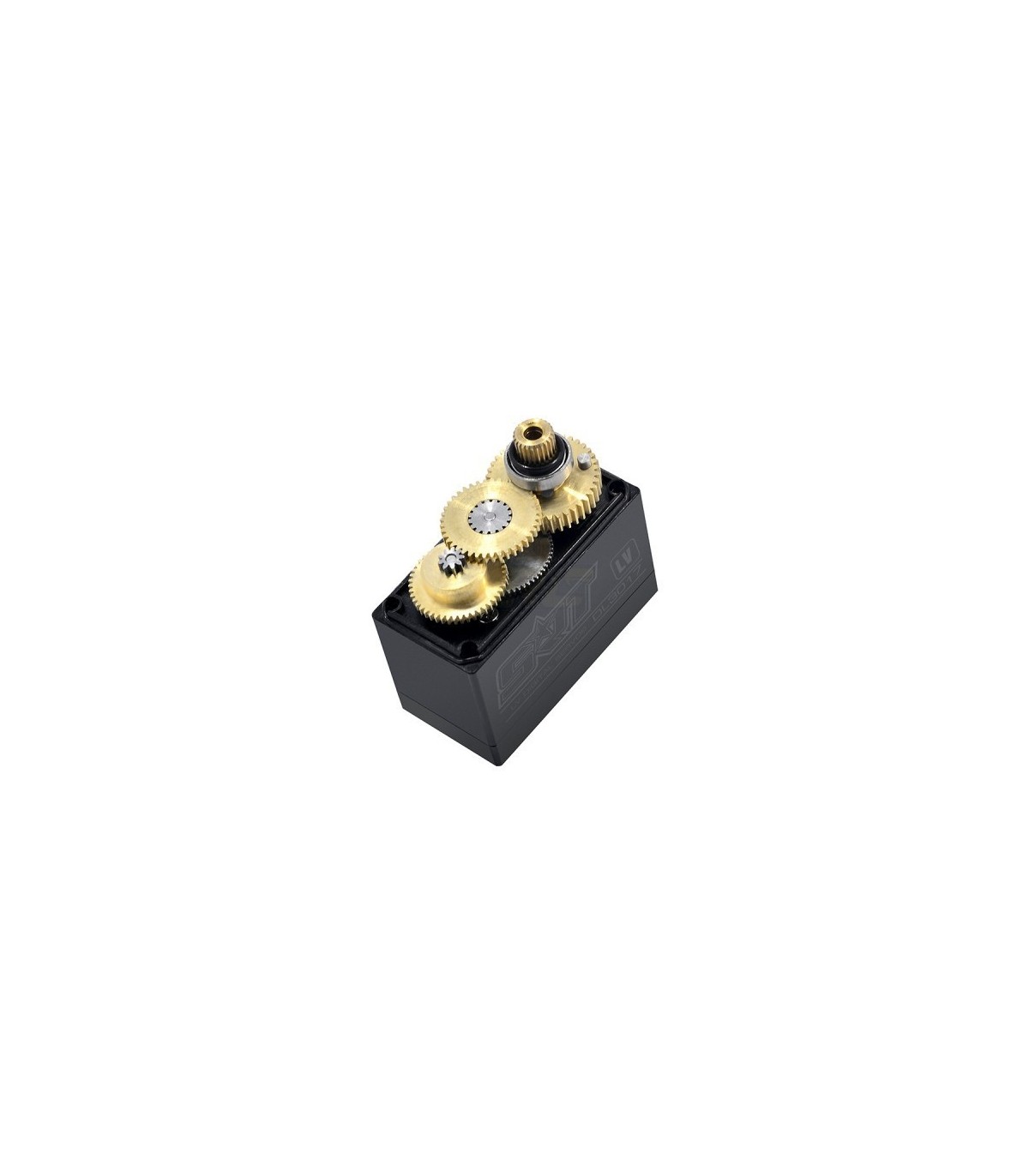

Gear Type: Metal
Gear Material: Titanium & Copper
Control System: Pulse Width Control
Working Frequency: 1520?s / 330Hz
Operating Voltage: 4.8-6.0V
Operating Temperature Range: -10 to +60 degrees
Operating Speed (4.8V): 0.17 sec/60 degrees at no load
Operating Speed (6.0V): 0.15 sec/60 degrees at no load
Stall Torque (4.8V): 15.5kg.cm (215.3 oz/in)
Stall Torque (6.0V): 17.0kg.cm (236.1 oz/in)
Potentiometer Drive: Direct Drive

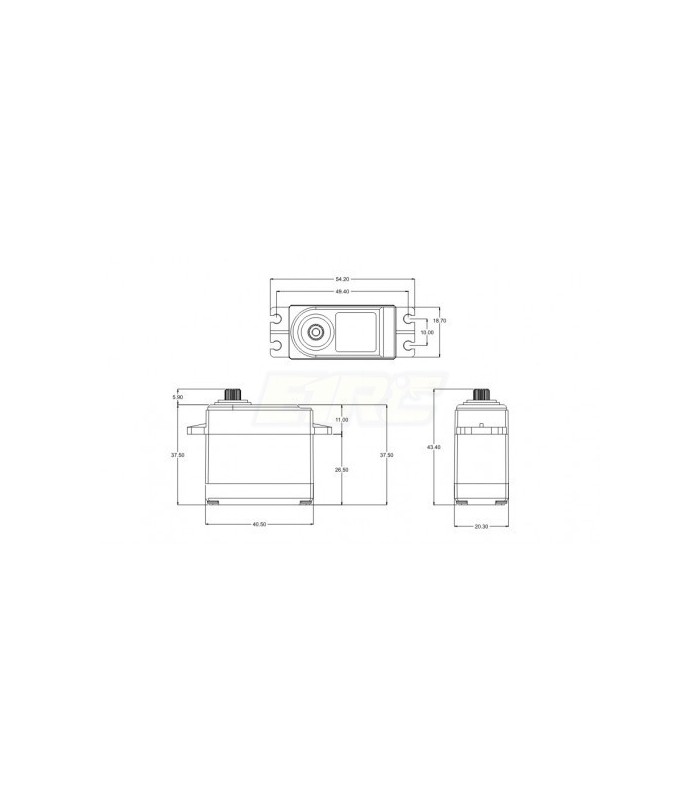

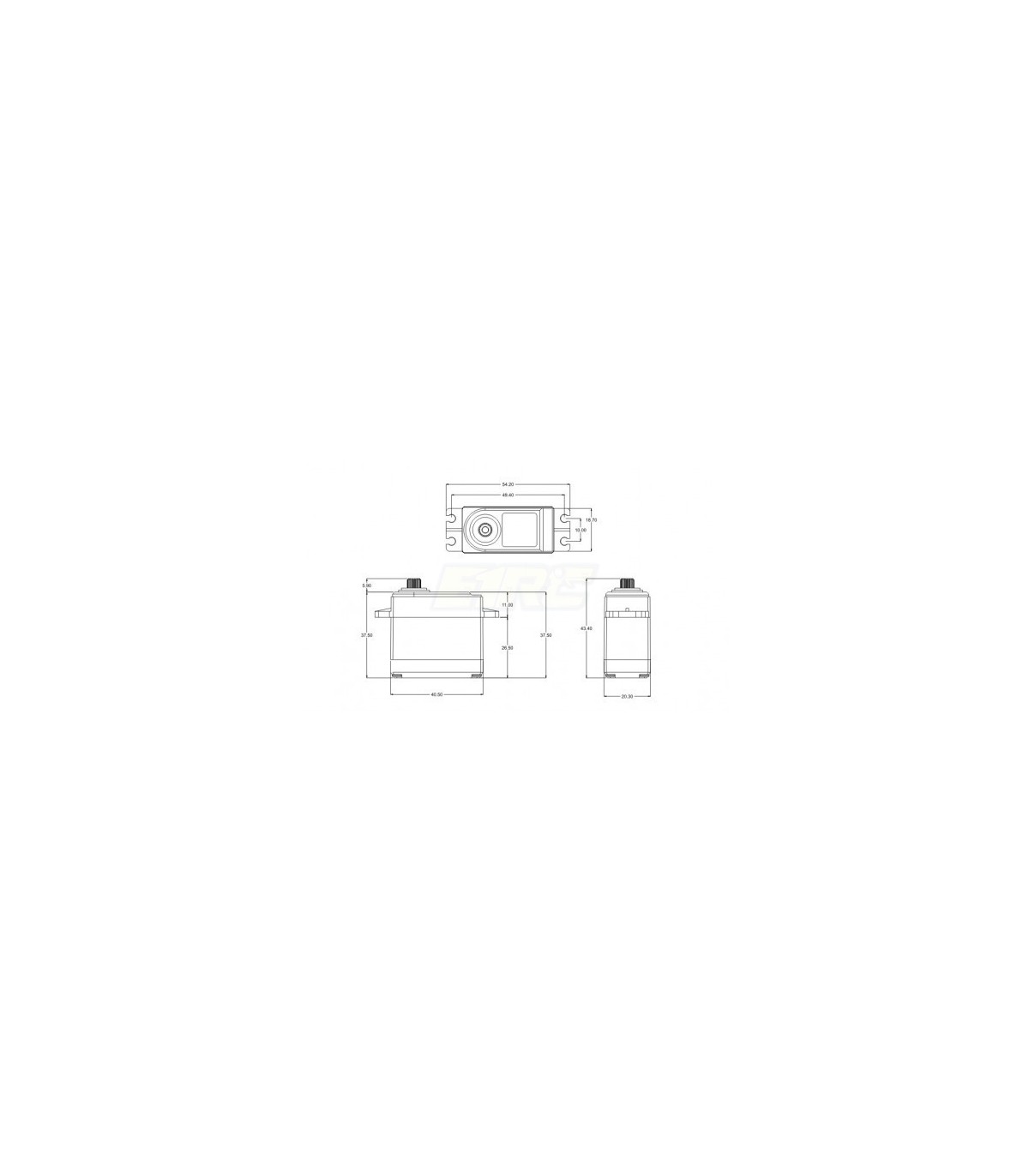

Dimensions: 40.7x20.5x39.5 mm / 1.6x0.8x1.55 in
Weight: 63.0g (2.22 oz)
Connector Wire Length: JR 250mm

SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle, airplane, boat, or robot application. These are standard size servos for high-voltage applications up to 8.4V, featuring all-metal case construction for ultimate performance.
