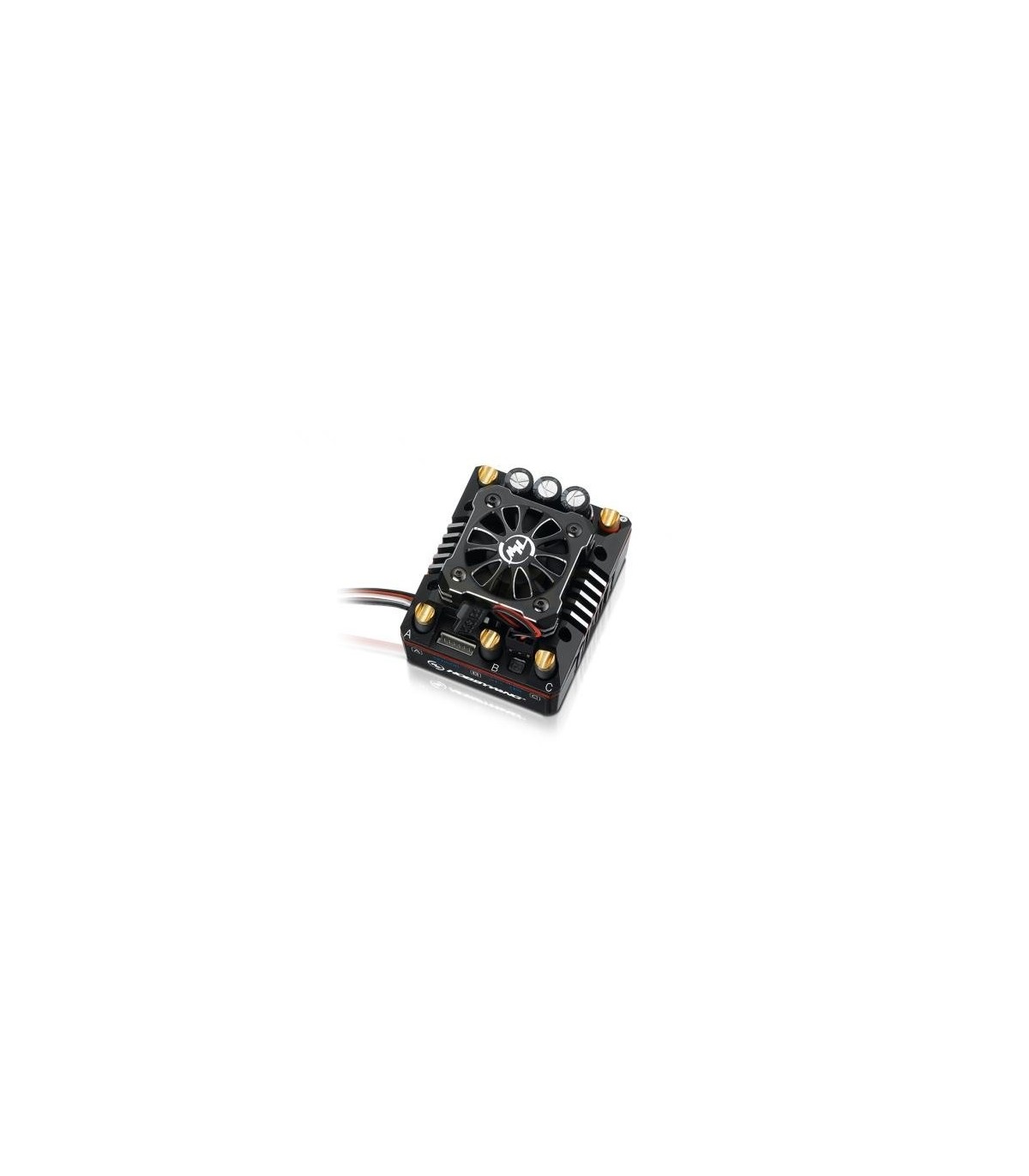

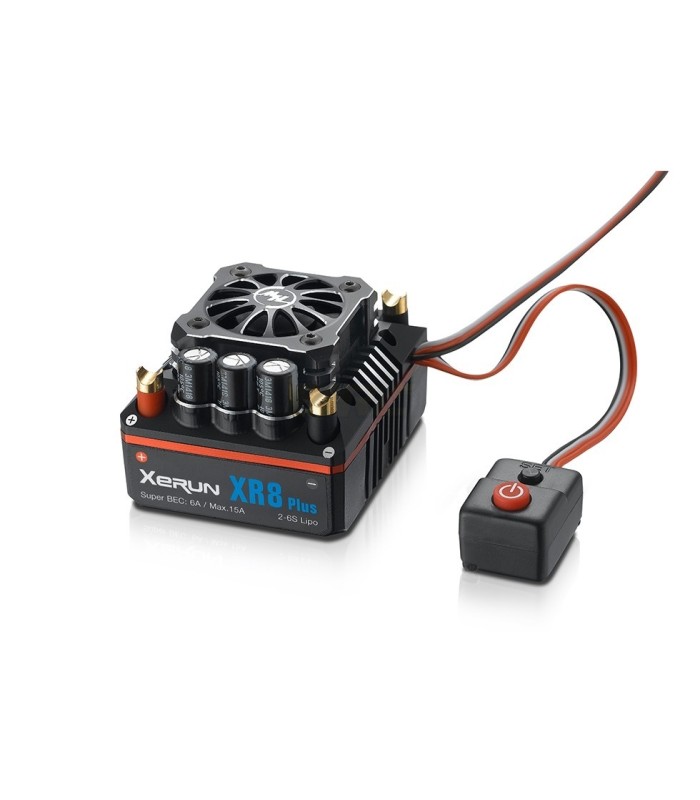

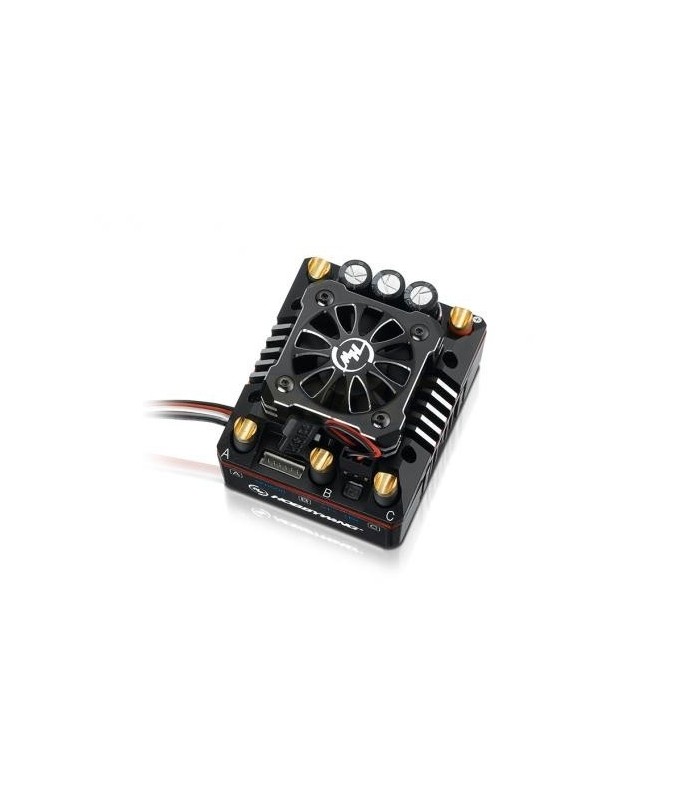

XeRun XR8 Plus 1/8 150A

The Xerun XR8 Plus from Hobbywing was developed to provide unparalleled power, performance, and reliability for demanding 1/8 scale racing applications. Built with high-quality components and loaded with cutting-edge firmware, the XR8 Plus has enough responsiveness to protect against damage due to abuse, overuse, or even human errors. With its incredible power output and adjustable parameters, the XR8 Plus will deliver the smooth throttle response and linear throttle/brake qualities demanded by discerning drivers.

Features:

High Voltage Built-in BEC: The XR8 Plus is the first 1/8 ESC to include an integrated HV BEC with a 15 amp output current and an adjustable output voltage of 6 to 7.2V. This BEC is designed to easily handle power-hungry servos.

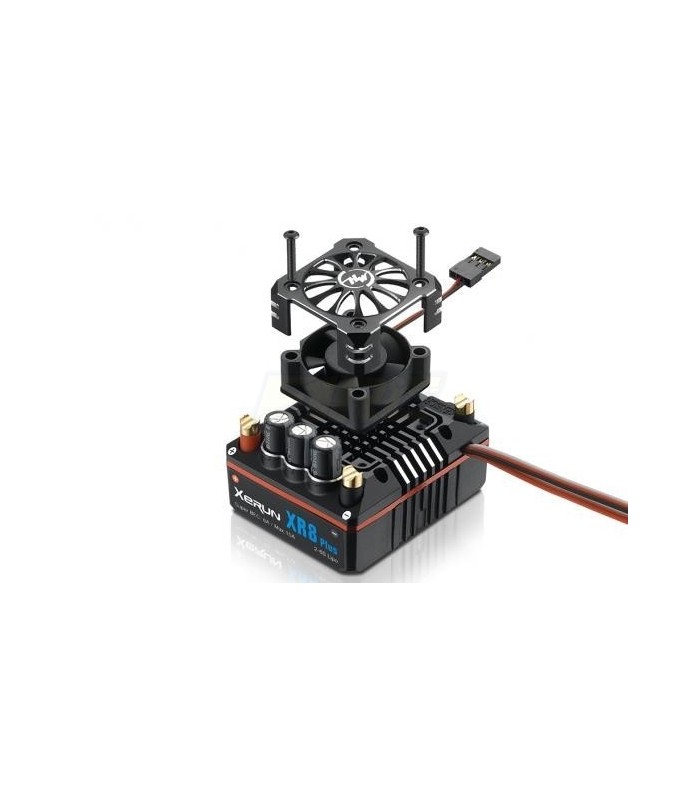

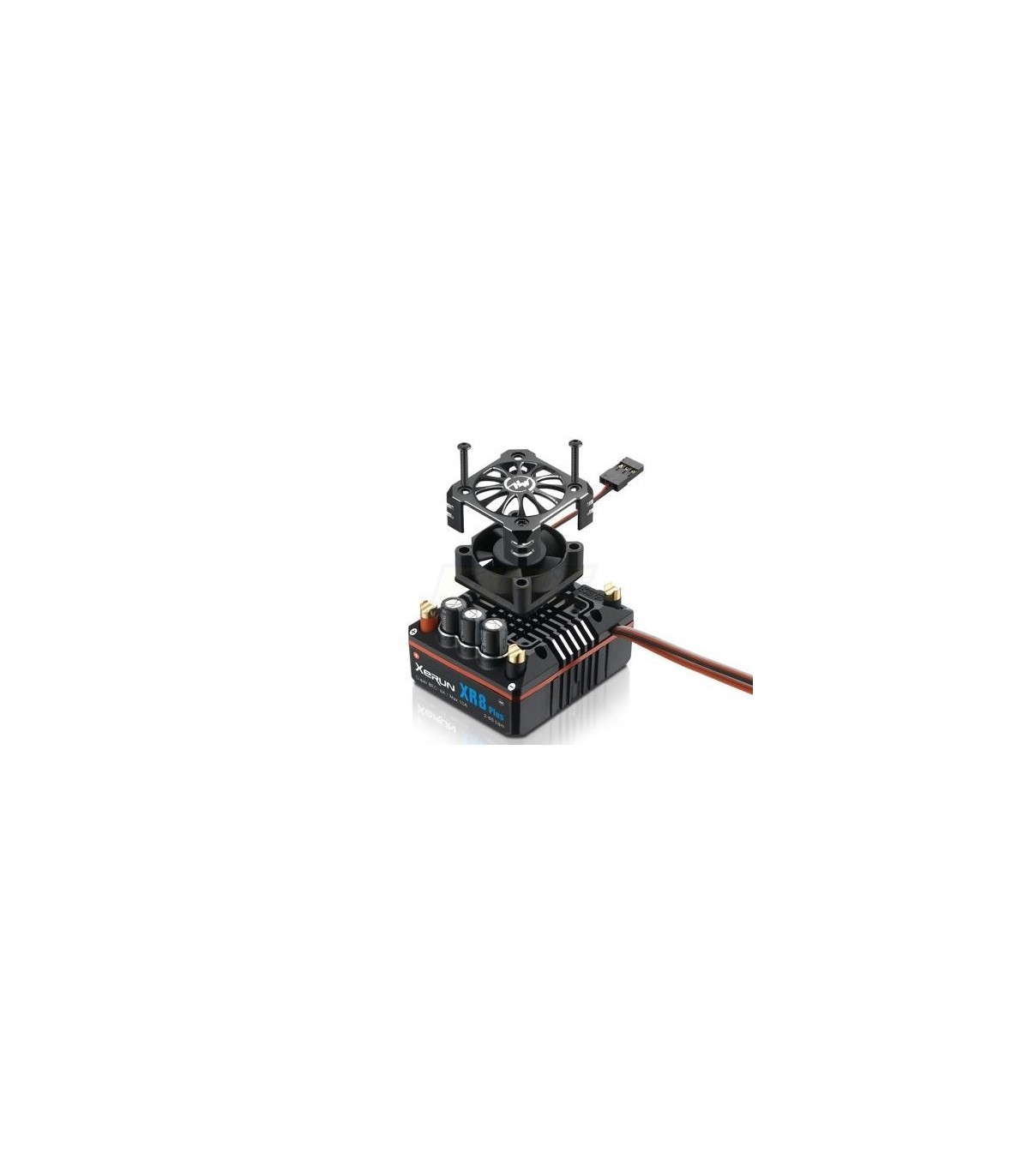

Reliable Cooling System: The patented cooling technology uses patented heat-conductive copper heat sinks to quickly and effectively transfer all internal heat from the MOSFET plate to the integrated machined billet aluminum heat sink housing. The cooling fan uses a shock-resistant mounting system that reduces the likelihood of fan damage from repeated impacts during 1/8 scale road racing jumps.

The XR8 Plus offers exceptionally smooth throttle acceleration (patent pending), simulating the inertia and thrust of a large-scale car driving experience. This greatly enhances the performance of builds using large high-power motors, as electromagnetic resistance becomes a significant factor in sudden deceleration when in the acceleration position, negatively affecting race performance and handling.

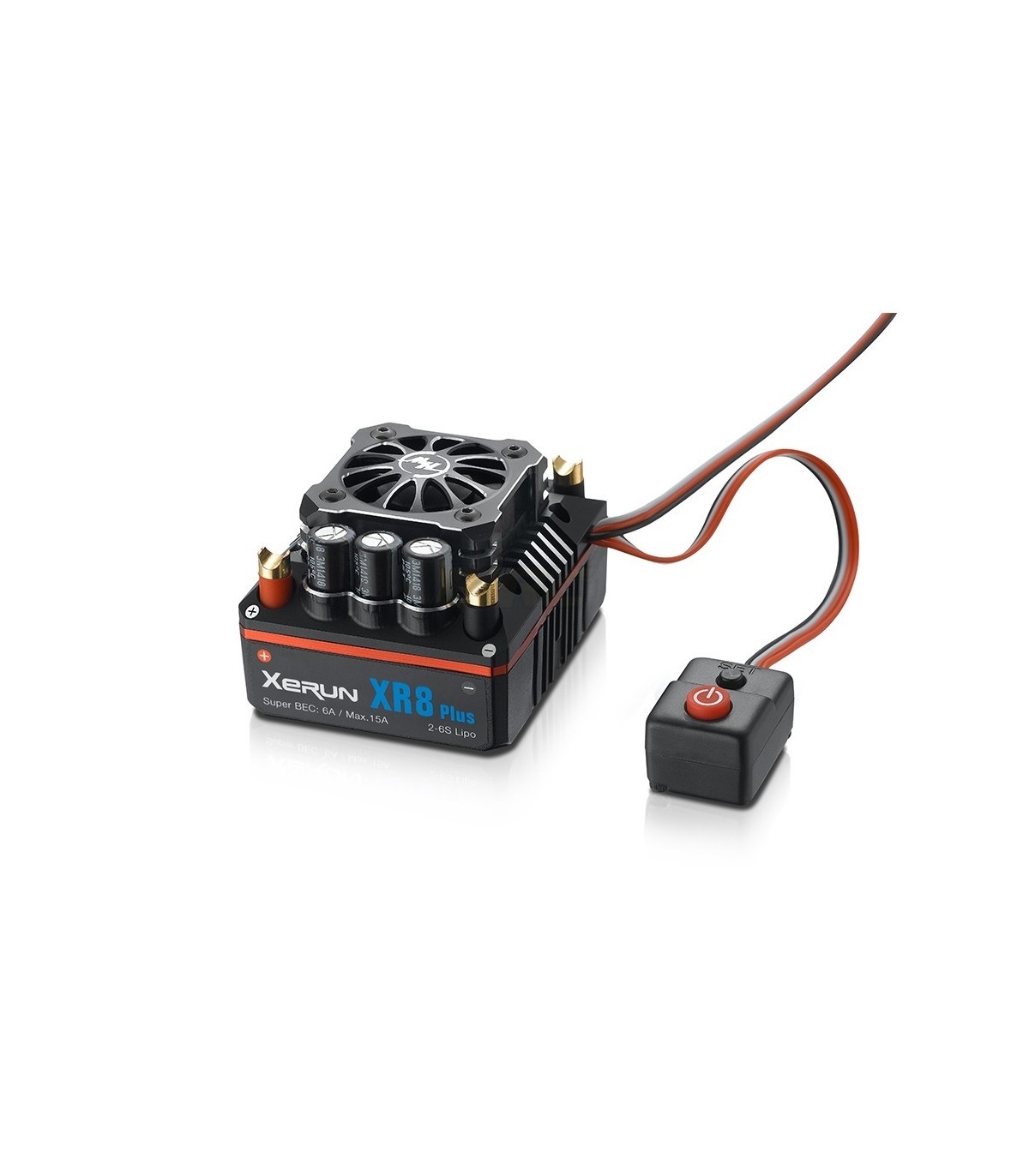

Advanced and Safe Electronic Switch: The XR8 Plus features an electronic switch rated for over 50,000 on/off cycles. The switch is completely waterproof, dustproof, and shockproof.

Virtually Maintenance-Free: Thanks to the well-thought-out design, the XR8 Plus requires virtually no maintenance. Advanced error detection and thermal protection, an exceptionally robust housing, the latest in heat dissipation technology, and a shock-proof fan mount make this ESC capable of withstanding anything a racer can throw at it.

High-Performance Dynamic Timing Algorithm: The XR8 is the world's first competition-level 1/8 scale ESC to feature dynamic timing technology. This expands the adjustable power output range of the ESC while maintaining system efficiency and smoothness.

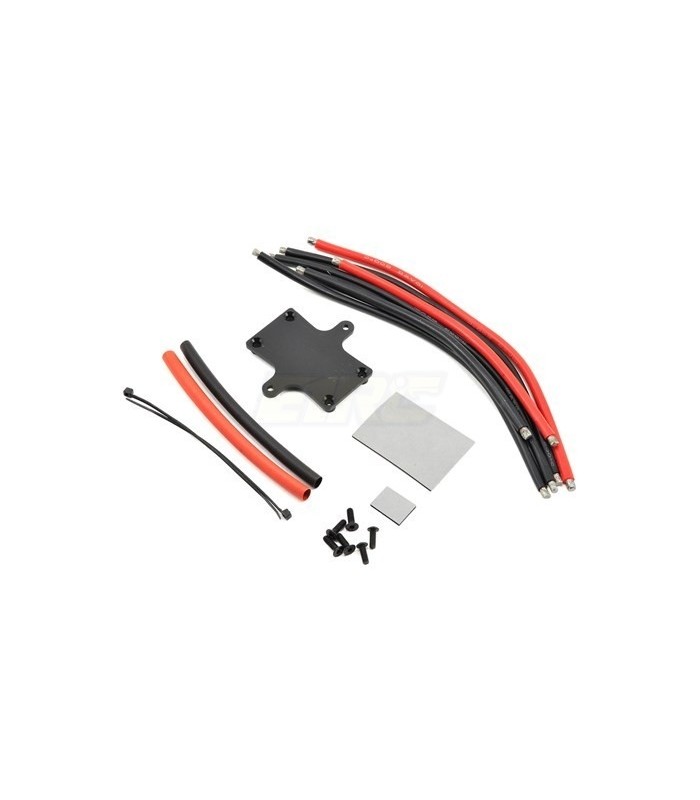

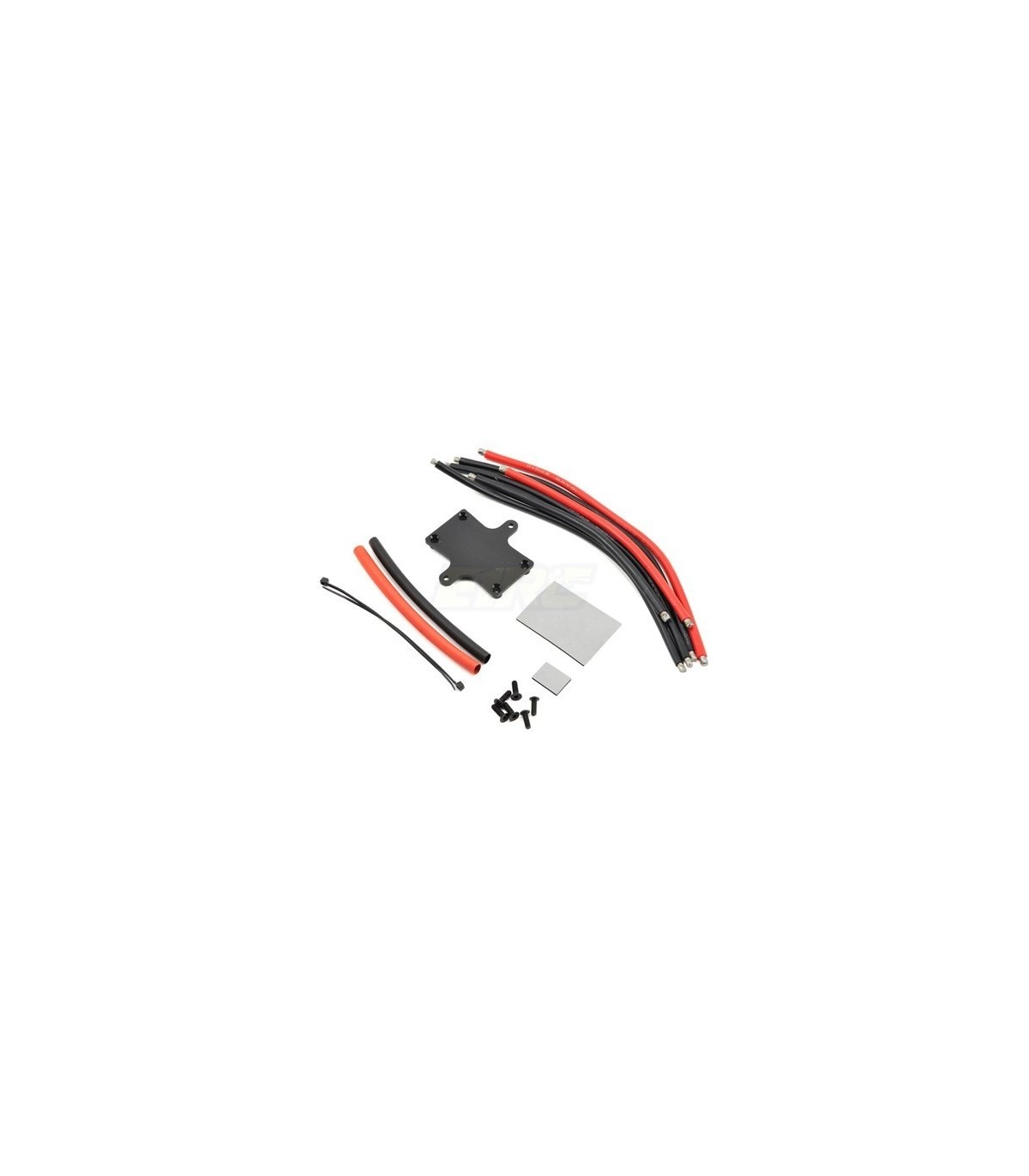

Included Accessories: Includes 10awg cable and mounting accessories. Programming box not included.

Specifications:

Current:

Continuous: 150A

Peak: 950A

Motor Type: Sensored / Sensorless Brushless Motor

Applications: 1/8 scale on-road / off-road, competition level

Motor Limit:

4S LiPo / 12-Cell NiMH: 3000Kv for 4274 size motor or smaller

6S LiPo / 18-Cell NiMH: 2400Kv for 4274 size motor or smaller

LiPo / NiMH Cells: 2-6S LiPo, 6-18 NiMH cells

BEC Output: Switchable 6V / 7.2V continuous current of 6A (Switch Mode BEC)

Cooling Fan: Powered by BEC output voltage

Connectors: Open Post, user-soldered

Size (LxWxH): 58.7x48x36.9mm

Weight: 127g (without wires)

Programming Port: FAN / PRG
