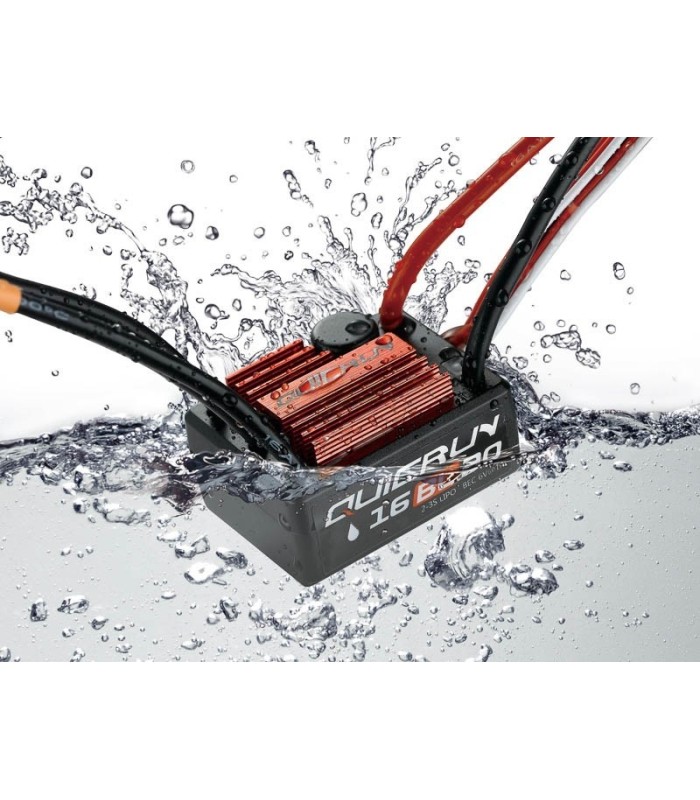

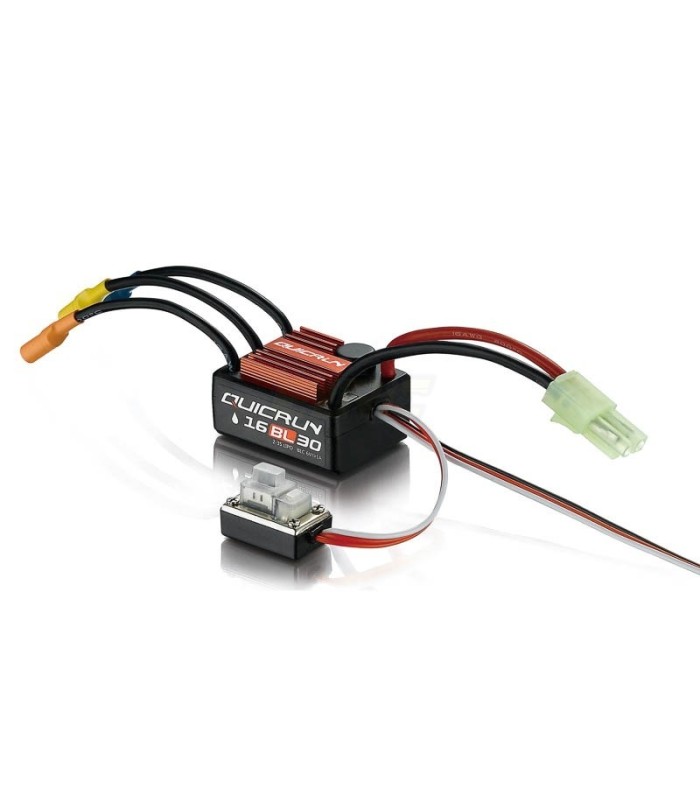

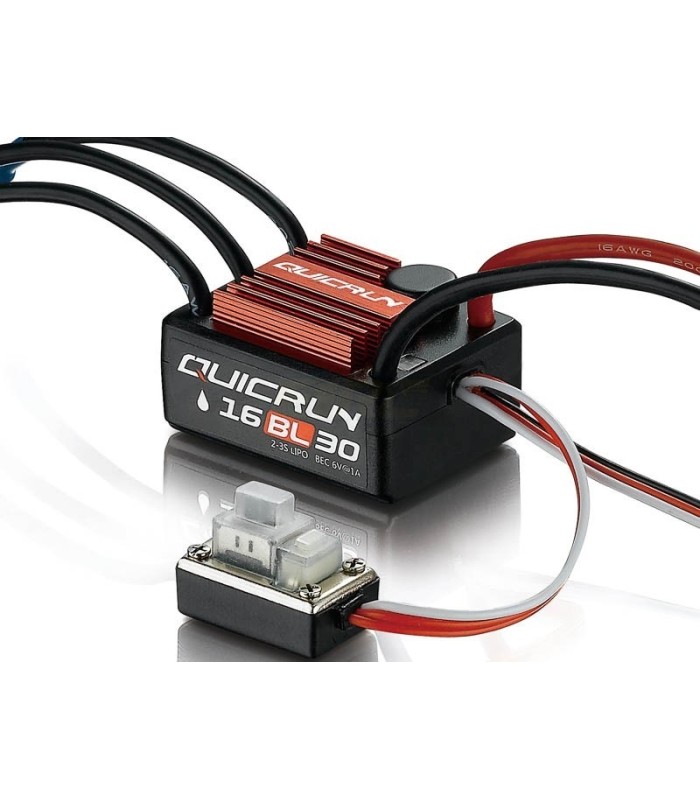

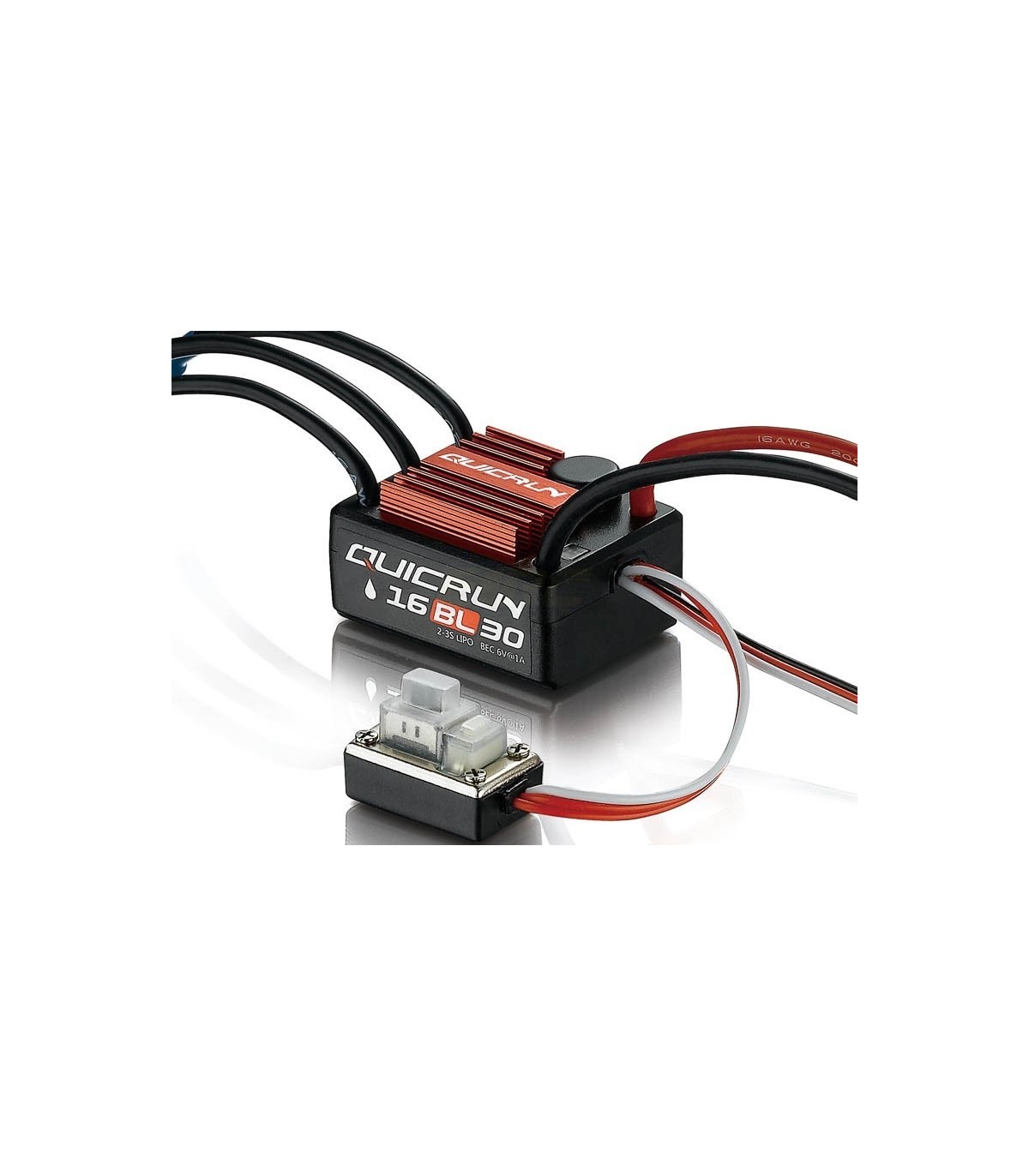

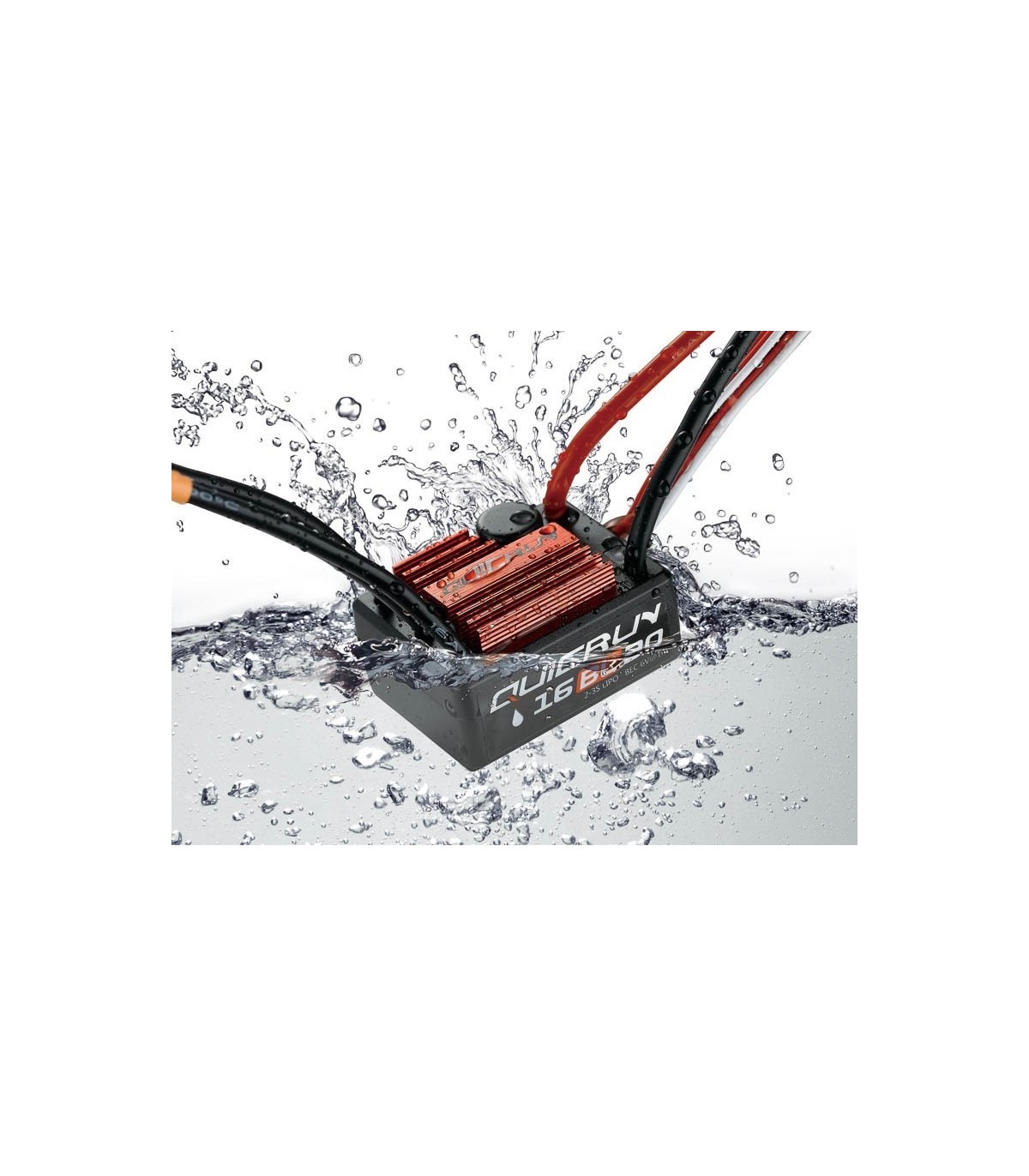

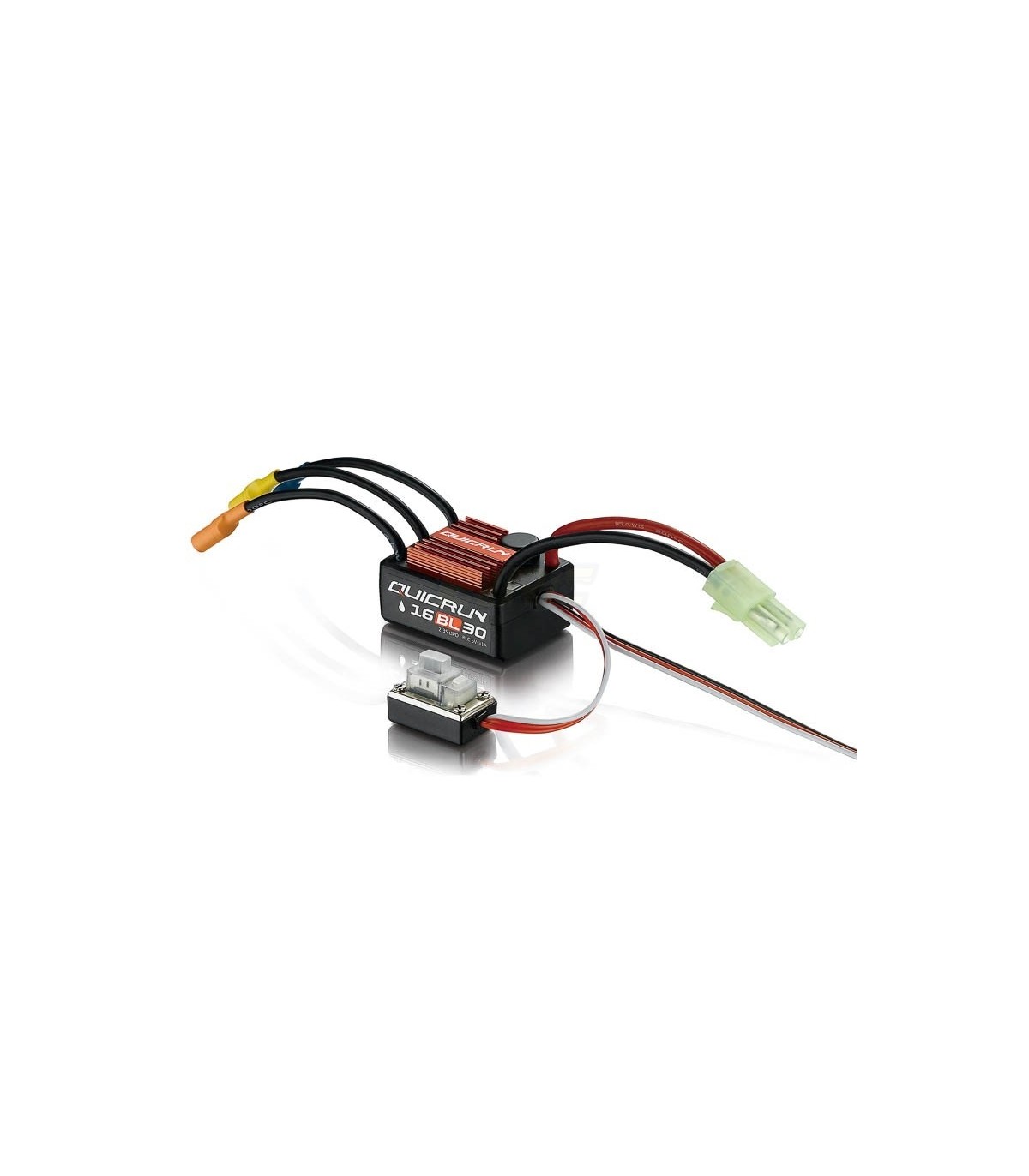

Quickrun WP16BL30 is a brushless 30 AMP ESC (Electronic Speed Controller).

The QuicRun series from HobbyWing includes both brushless and brushed systems. The brushless systems also come in sensorless and sensored versions, providing a suitable solution for every need. This series is very cost-effective and is mainly aimed at both beginner and advanced drivers. It also impresses with the excellent and well-known quality of Hobbywing products, as well as the easy setup.

Features:

Water and dust protection for use in any weather

(Note: Remove any water from the fan before using, clean and dry the controller immediately after use to prevent damage).

Proportional brake with adjustable maximum braking force and automatic brake

9 different acceleration programs can be selected, ranging from "smooth" to very "aggressive", depending on the model and track.

Various protection functions:

Low voltage protection for batteries

Thermal overheating protection

Gas signal loss protection

Simple programming via a "set" button on the controller

Compatible with the optional "LED Program Card" for even easier programming anytime, anywhere.

Specifications:

Continuous / Short-term current: 30A / 180A

Internal resistance: 0.002Ohm

Supported motor type: Sensorless brushless motors

Application: 1/18 and 1/16 buggy / monster on-road / off-road

Motor Limit:

For 2S Lipo or 6-cell NiMH:

On-road: 2435 size motors or smaller with KV <8000

Off-road / Buggy / Monster: 2453 size motors or smaller with KV <5000

For 3S Lipo or 9-cell NiMH:

On-road: 2453 size motors or smaller with KV <5500

Off-road / Buggy / Monster: 2453 size motors or smaller with KV <3500

Batteries:

4-9 cell NiMH

LiPo 2-3S

BEC Output: 6V / 1A (linear mode)

Dimensions (LxWxH): 36 x 28 x 16 mm

Weight: 38g

External program connection: No

Fan operating voltage: Fanless
