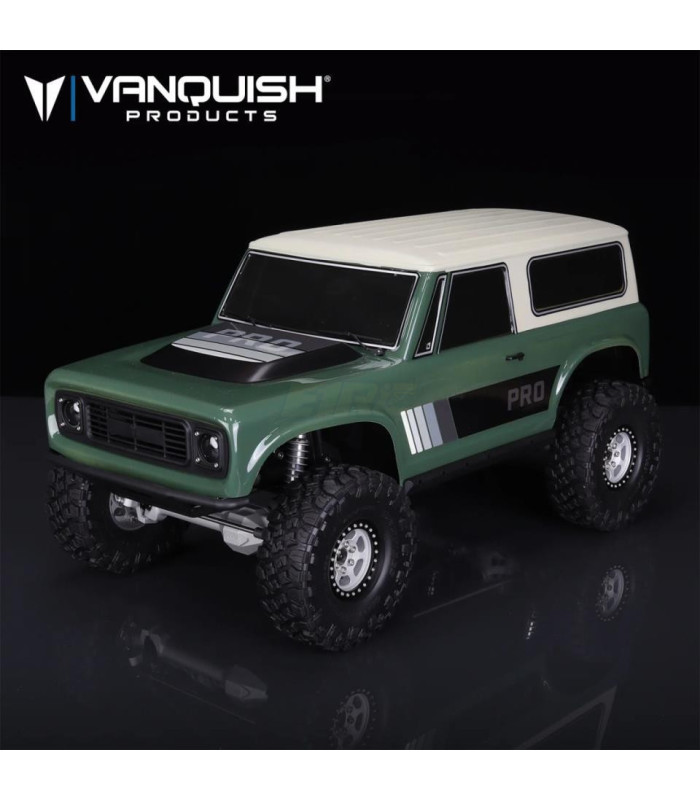

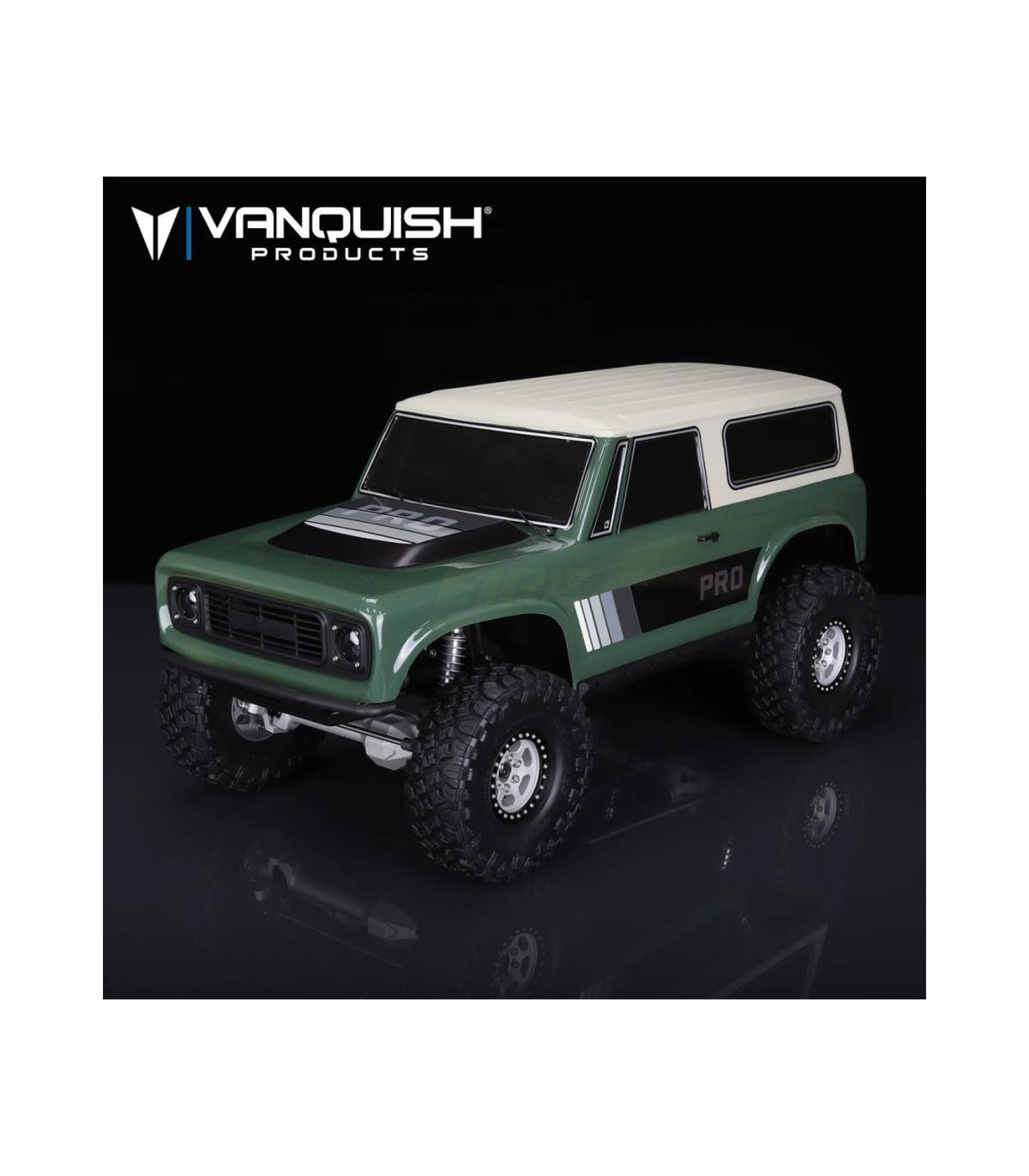

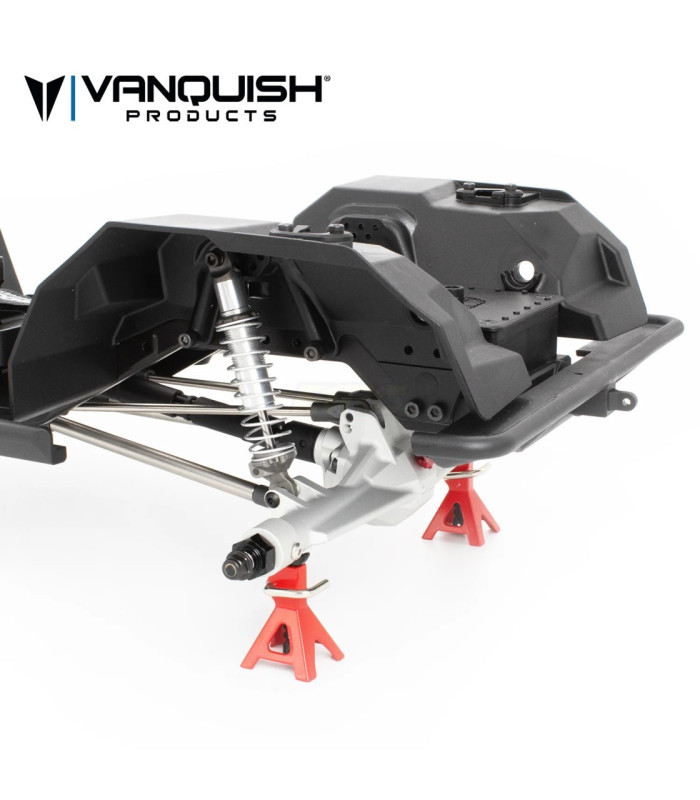

Vanquish VS-410 Origin classic pro Kit Clear axles

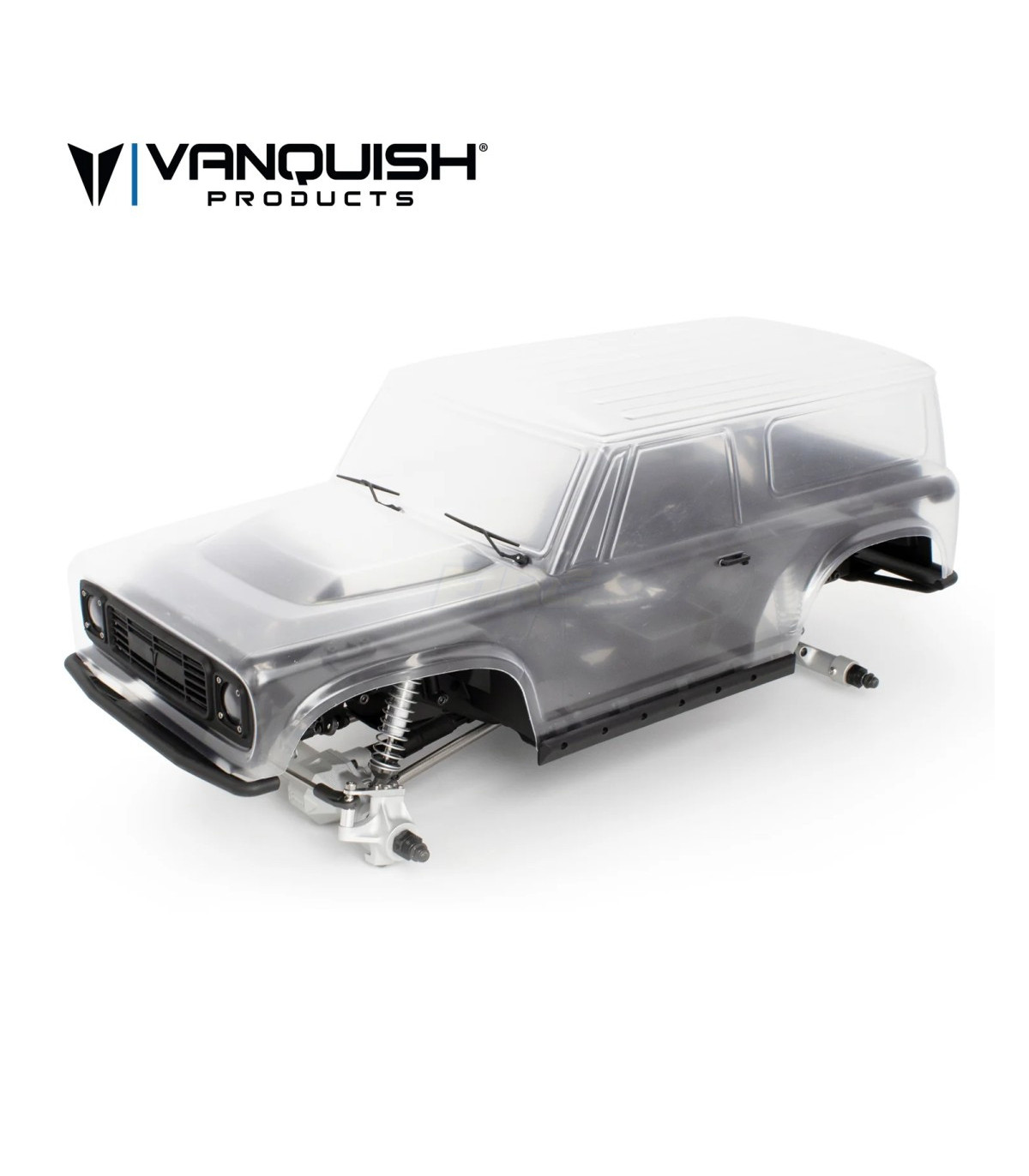

The Origin Classic Pro is based on the proven VS4-10 chassis, revives the original body design of the first Vanquish Products kit, and features a clever, click-free mounting system integrated into the molded inner fenders. These new inner fenders have adjustable shock positions with integrated shock towers ? a first for the VS4-10 platform! The VFD transmission delivers consistent power with a low, forward-biased weight distribution.

Included in the package are milled aluminum F10 solid axles, which offer reliable stability and a premium look thanks to their anodized finish. Also included are an exclusive set of 1.9-inch Battle Born Wheels X-Ray wheels in silver, as well as broad compatibility with a wide range of optional parts.

VFD transmission

The VFD transmission was developed to offer an optimal balance of performance, aesthetics, durability, and versatile accessory compatibility. During its design, the motor was positioned as far forward and low as possible, placing the weight exactly where the driver wants it. The VFD Spec transmission features a factory-installed 6.5% overdrive, providing improved torque and climbing performance without compromising your electronics. The transfer case features unique, interchangeable bearing plates that allow for adjustable bearing positioning. The modular design of the bearing plates also allows for optional transfer case ratios. The VFD transmission is compatible with 540 brushed and brushless motors*.

Inside, the VFD features hardened chromoly shafts, sintered metal gears, and replaceable bearing plates that reinforce critical stress points for longevity. A slipper eliminator ensures maximum power transfer, while the molded gearbox housing maintains its scale appearance. The extended skid plate provides additional engine protection in rough terrain.

• Standard overdrive: 6.5%
• Sintered internal gears
• Hardened chromoly shafts
• Injection-molded VFD-extended skid plate for motor protection
• Battery and electronic compartments formed using injection molding
• Fully ball-bearing gearbox
• Injection molded gearbox housings
• Injection-molded 6 mm motor plate
• Injection-molded spur gear cover
• 32P-52T spur gear and 15T steel pinion

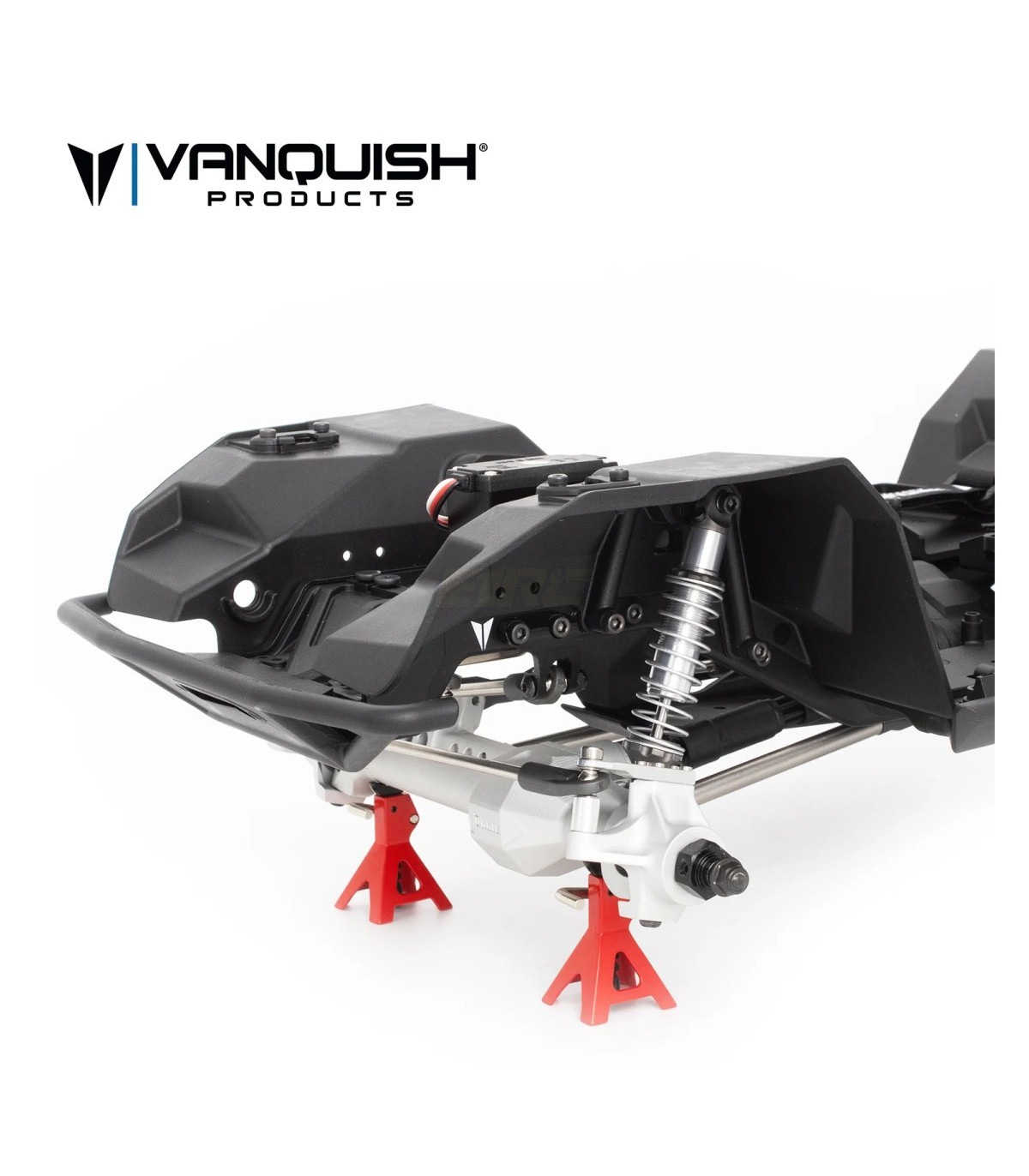

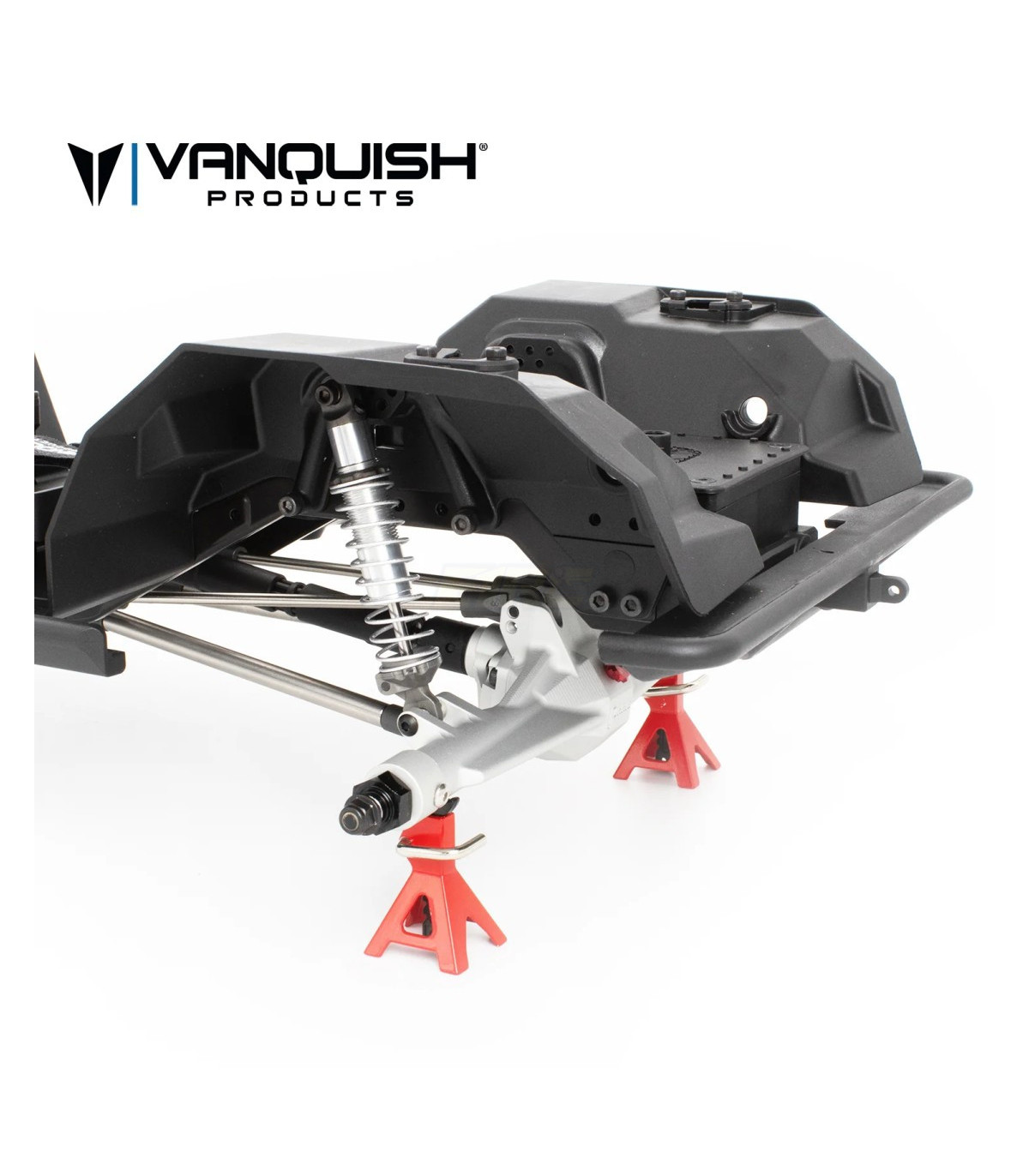

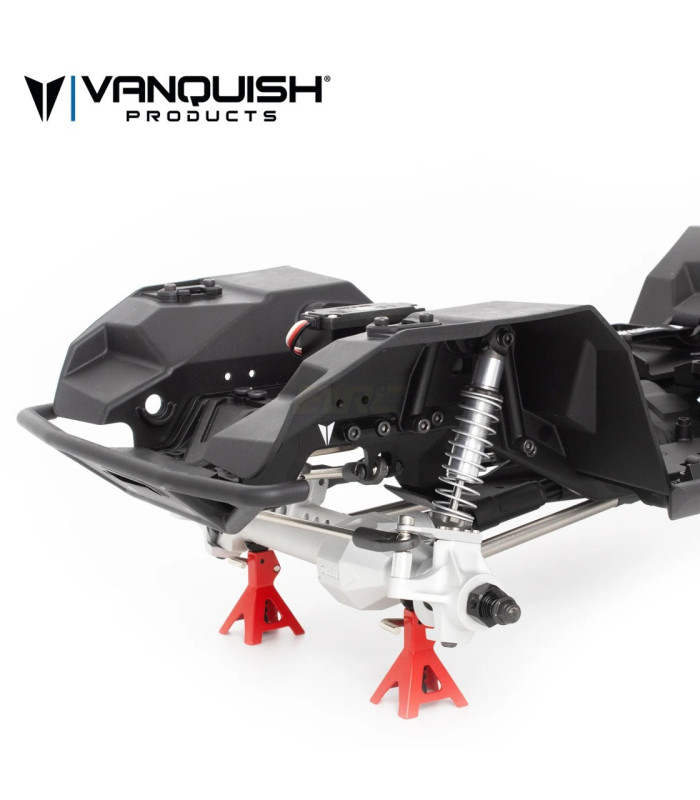

F10 Aluminum Rigid Axles

The F10 solid axles, made from CNC-machined aluminum, benefit from Vanquish Products' long-standing expertise in manufacturing the industry's best aluminum axles. Manufactured in the USA from US-made aluminum, the F10 aluminum solid axles feature an extremely rigid construction with integrated bracing connecting both ends of the axle, as well as oversized C-profiles with integrated Panhard rod mounts.

• Universal shafts
• 49-degree steering angle
• Aluminum VS4-10 rigid axle steering knuckle
• High Caster reinforced C-hub
• High Pinion Hypoid Axle Gears (30/8)
• 5 mm output shafts with M4 wheel nut
• One-piece aluminum bearing holders
• Adjustable lower shock absorber position
• Made in the USA from US aluminum.

Battle Born Wheels 1.9" X-Ray

The 1.9-inch ?Battle Born Wheels X-Ray? rim, first introduced on the H10 Origin, returns as the rim of choice for the Origin Classic Pro.

• Clear anodized aluminum.
• This product is exclusive. The rims cannot be purchased separately.
• Including silver 475 SLW hubs
• Made in the USA from US aluminum.

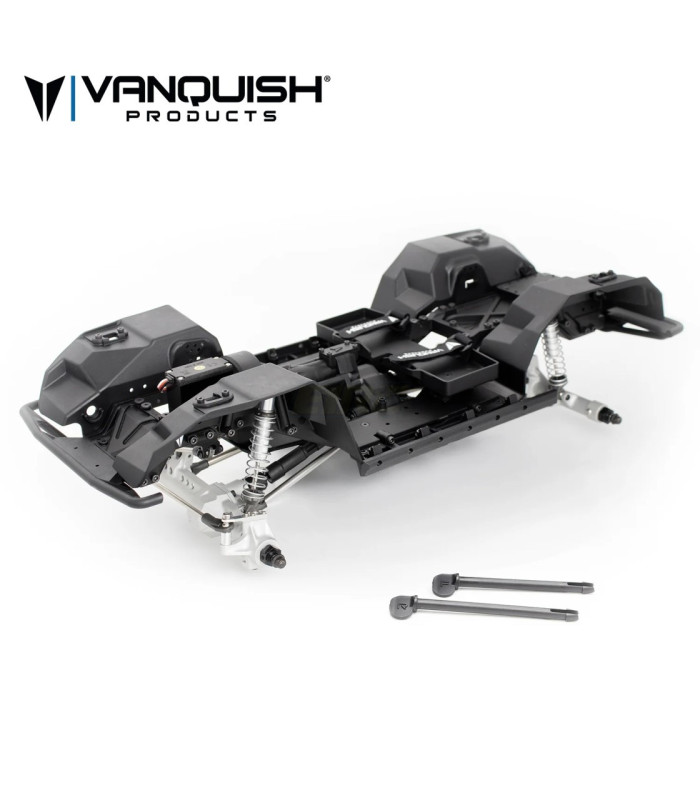

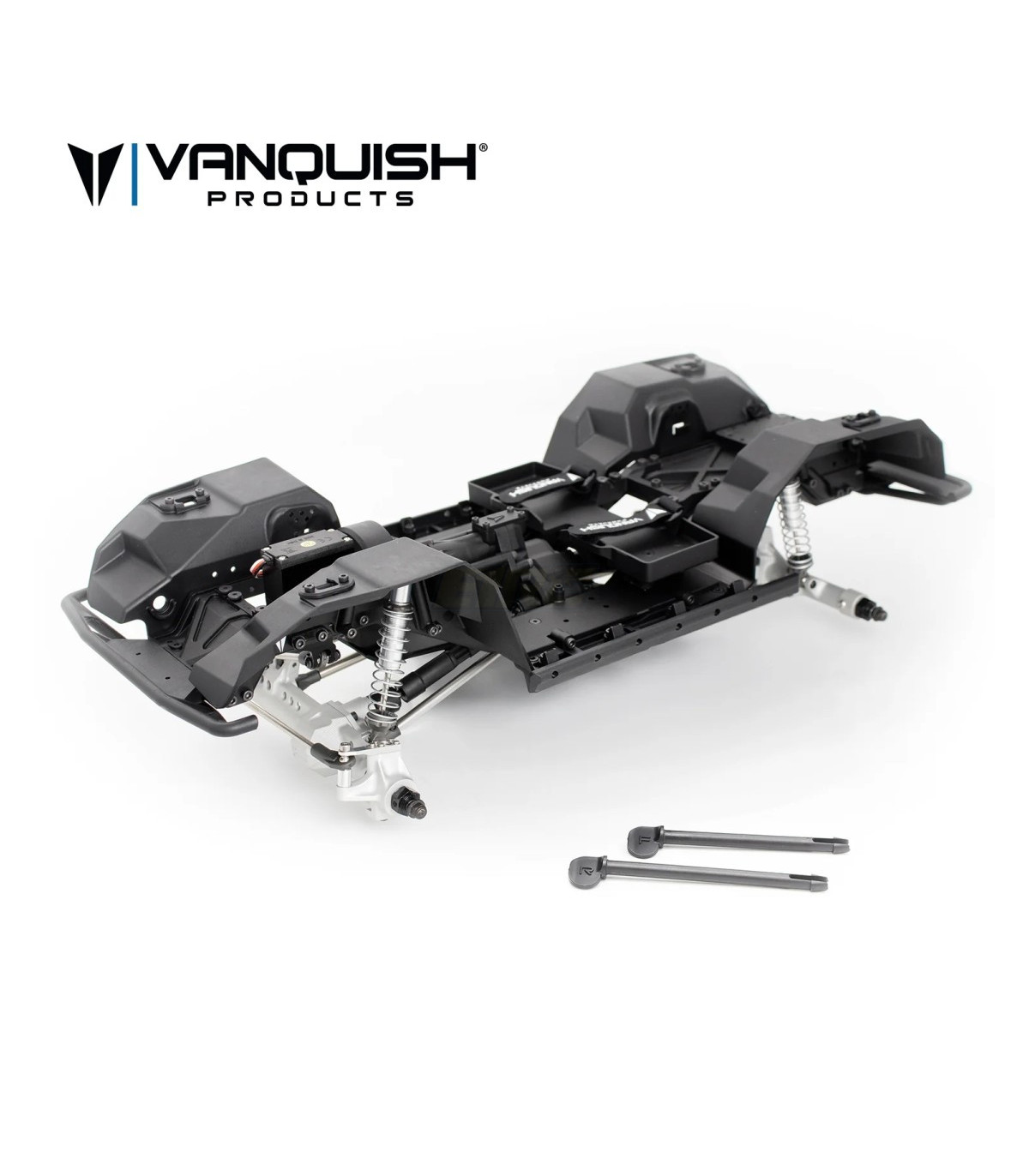

chassis

The Vanquish Products VS4-10 chassis is engineered to offer the perfect balance between scale appearance and uncompromised performance. Its steel C-profile design delivers true-to-scale detail. Molded front and rear cross braces reinforce the chassis rails at stress points for ultimate strength. The chassis also features dual servo mounts, a winch guide, and a fuel tank. The molded rock sliders have replaceable outer sections. The chassis Panhard rod mount is machined from aluminum to withstand extreme stresses in demanding terrain. The molded inner fenders double as adjustable shock towers to accommodate the tops of 90mm Incision S8E shocks.

• Heavy-duty steel C-profile frame rails with high ground clearance
• Integrated battery holder and electronics mounting points
• Stainless steel links

suspension

The VS4-10 is equipped with Incision 90mm S8E shock absorbers and offers a soft suspension setup with dual O-ring seals, locking spring perches, and polished steel piston rods. The 3-link front suspension with Panhard rod keeps the servo hidden, ensuring scale realism without compromising suspension travel.

• S8E Incision 90 mm shock absorber with bleed screw on the shock absorber cap
• Stainless steel links
• Stainless steel pivot balls
• Stainless steel offset pivot balls for adjusting the shock absorber width on the axle

Included are:

• Threadlocking lacquer
• lubricating grease
• 30WT shock absorber oil

Technical data

Required for assembly

• Tool
• Color
• 1.9 x 4.65 inch tires
• Remote control and receiver
• 540 engine (standard length)
• Steering servo (25T servo horn included in kit)
• regulator
• Battery
