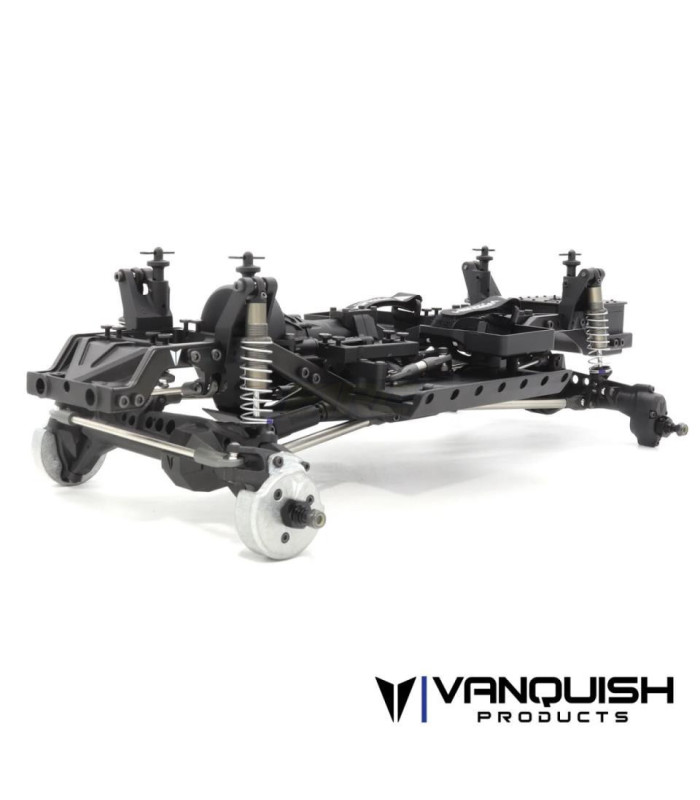

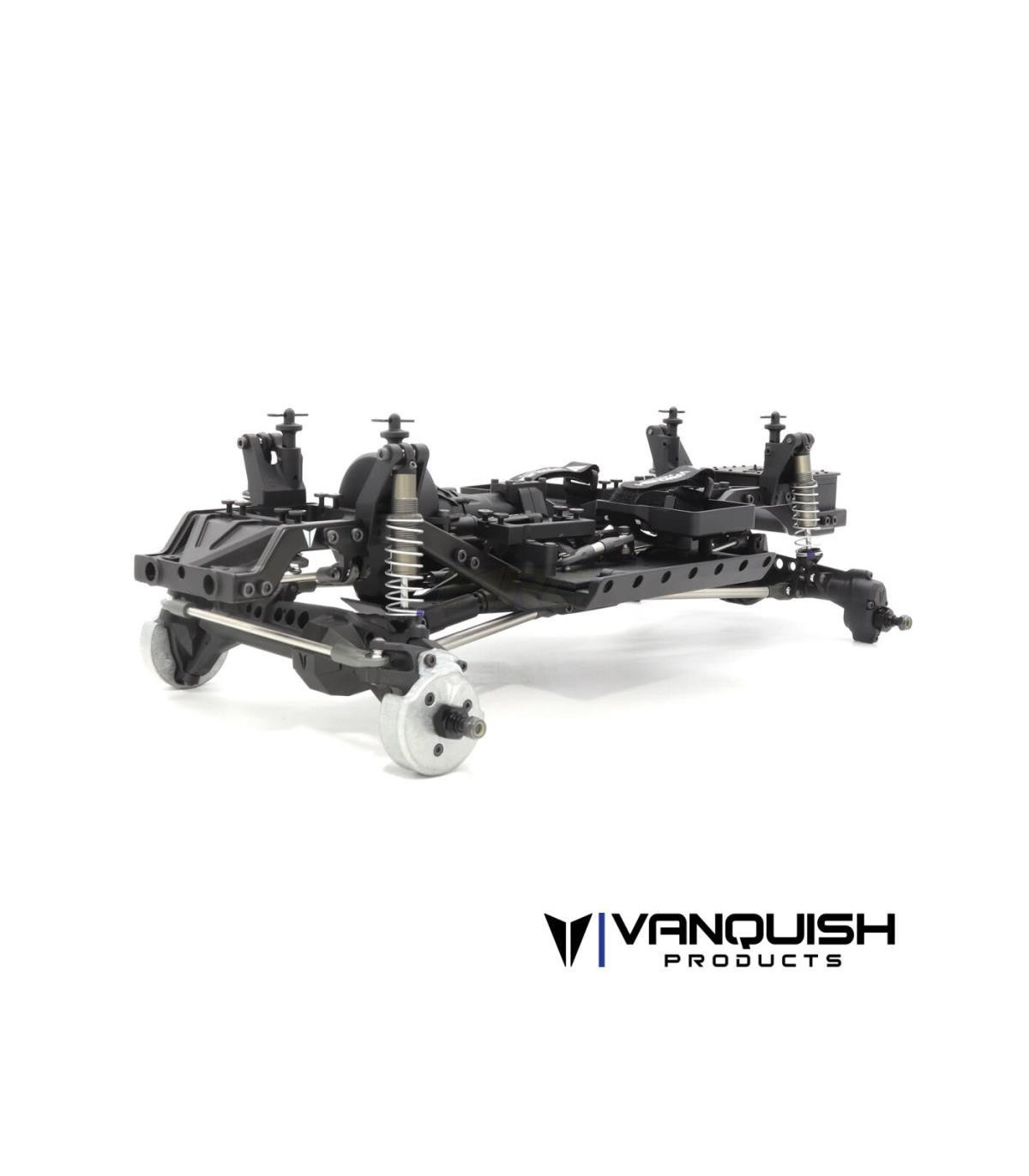

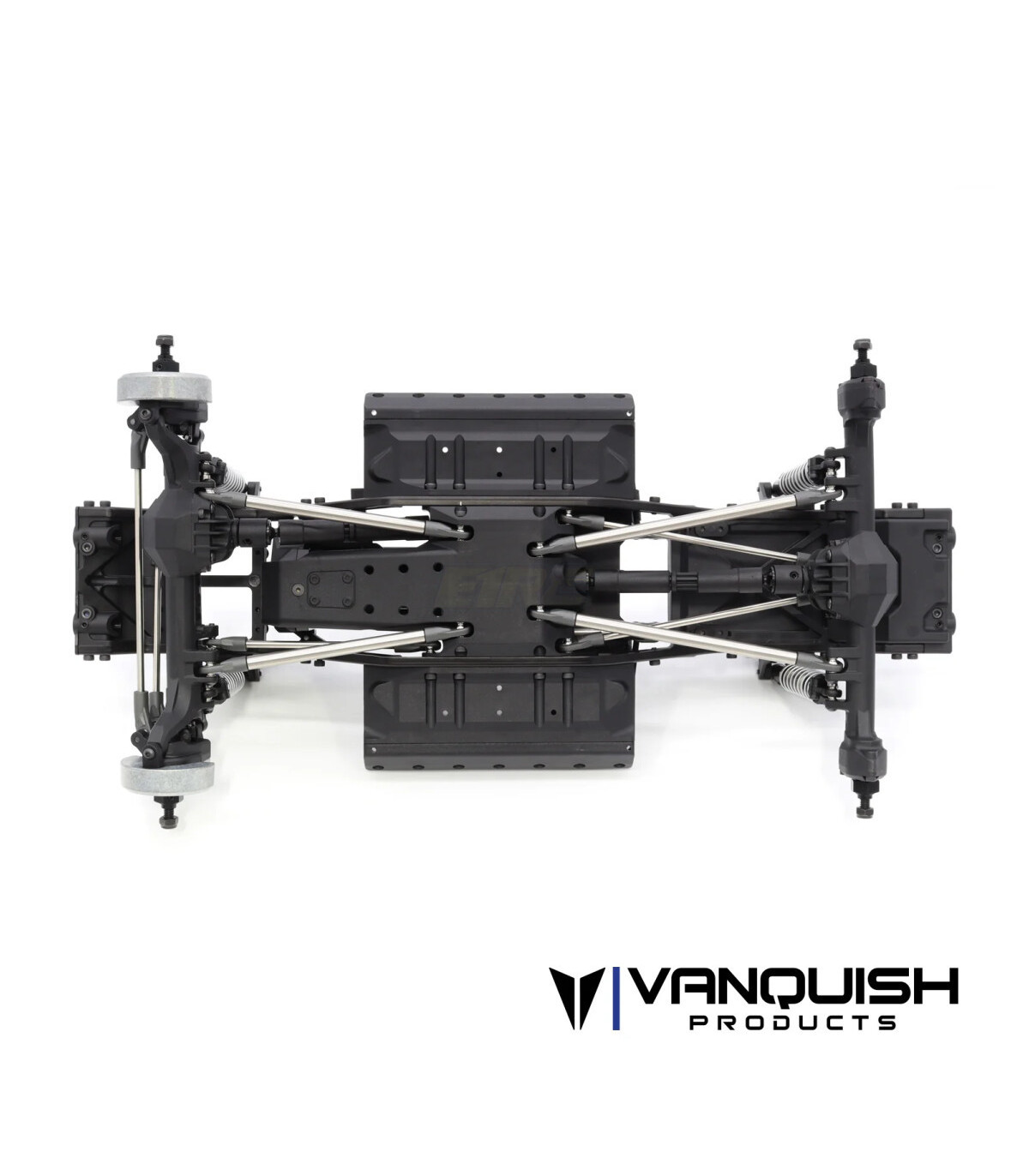

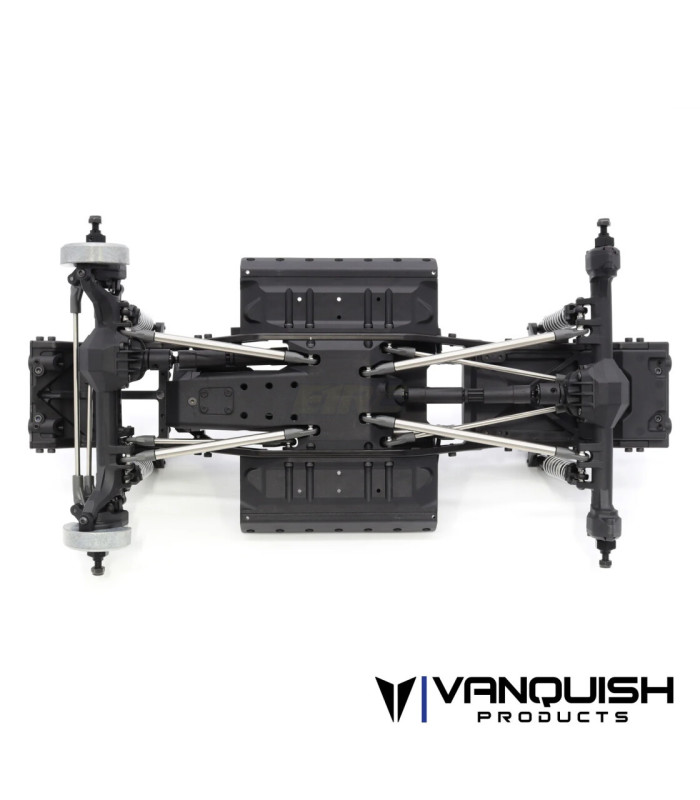

Vanquish VS4-10 Portal builders Kit

The Vanquish VS4-10 Portal Builders Kit is a high-quality, no-compromise 1:10 scale RC crawler kit. Designed for ambitious model builders, this chassis combines state-of-the-art technology, thoughtful design details, and the legendary build quality of Vanquish Products. The combination of F10 portal axles and the VFD Twin transmission ensures maximum traction, extreme ground clearance, and ultimate driving precision ? even in the most challenging terrain.

The design is based on a robust C-profile steel frame with thoughtfully positioned mounting points for electronics, battery, and body. The modular design allows for flexible adaptation to individual needs and modifications. Included are high-quality Incision shock absorbers with hard-anodized aluminum bodies and precision ISD10 driveshafts. The integrated VFD Twin transmission offers not only a selectable overdrive of 6.5% or 46%, but also a switchable dig function that disengages the rear axle in crawl mode ? perfect for tight maneuvers.

This kit is aimed at experienced modelers seeking maximum performance, attention to detail, and adaptability. All components are carefully matched and designed for durability under heavy use.

FEATURES:

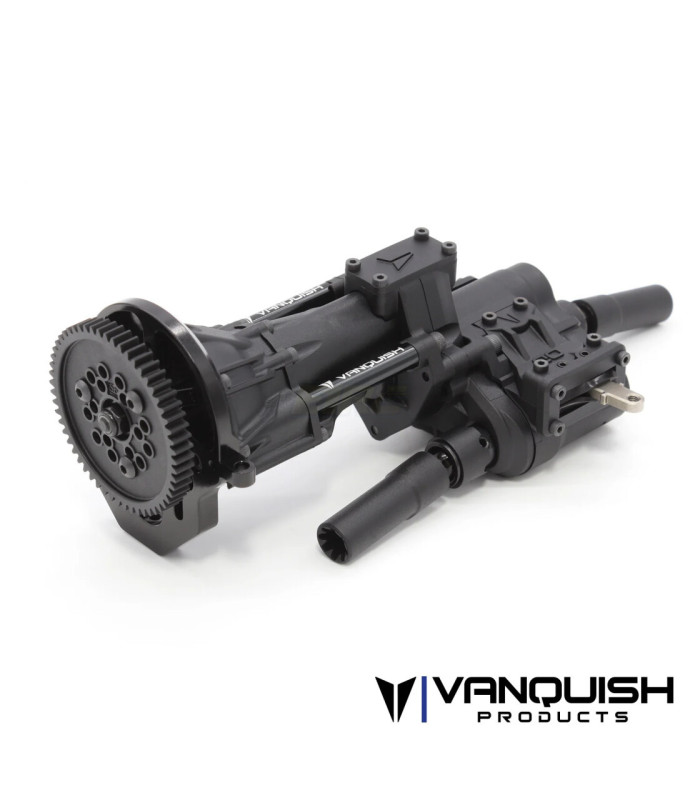

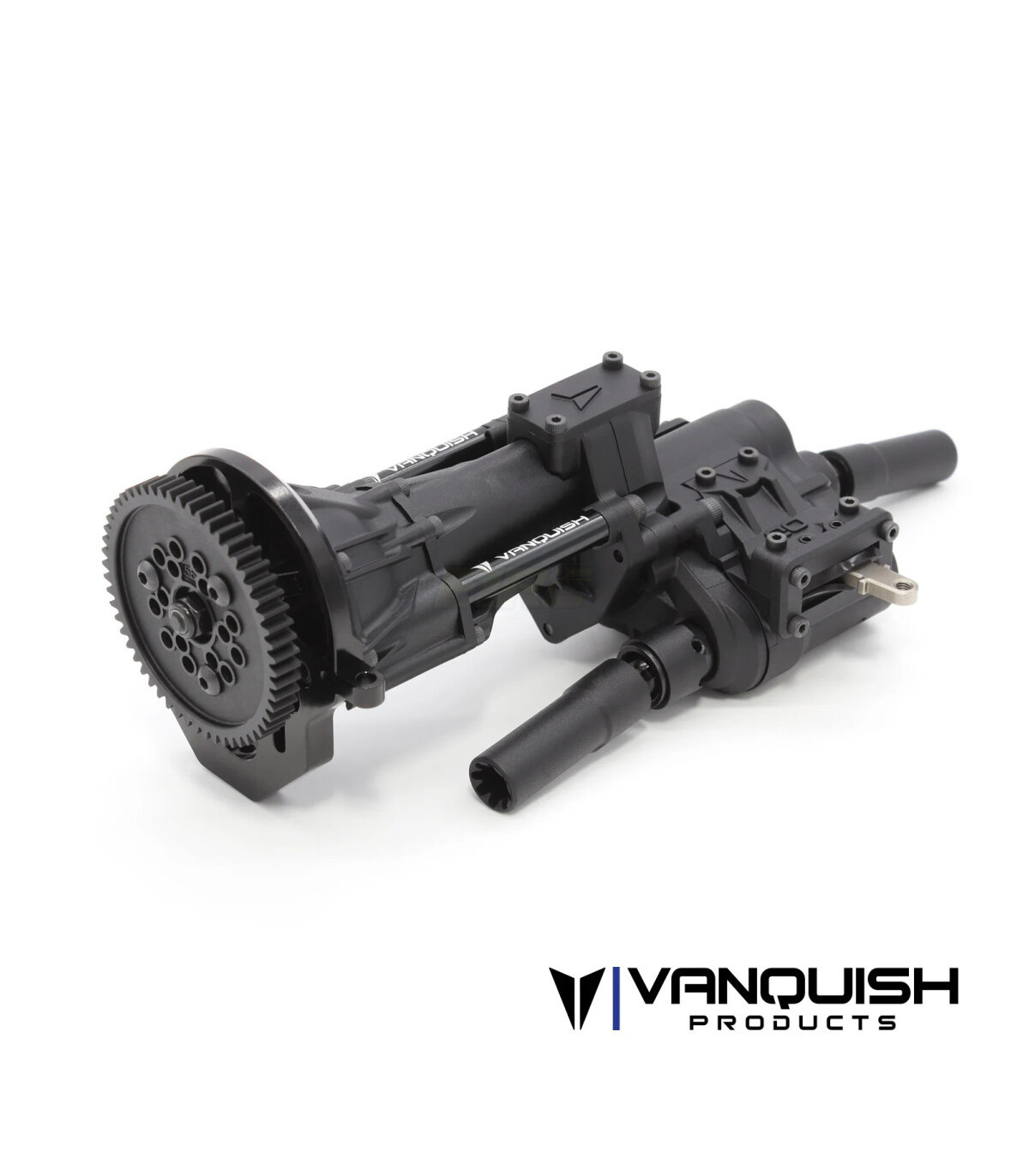

• VFD Twin transmission with 6.5% or 46% overdrive and selectable 3-position dig function

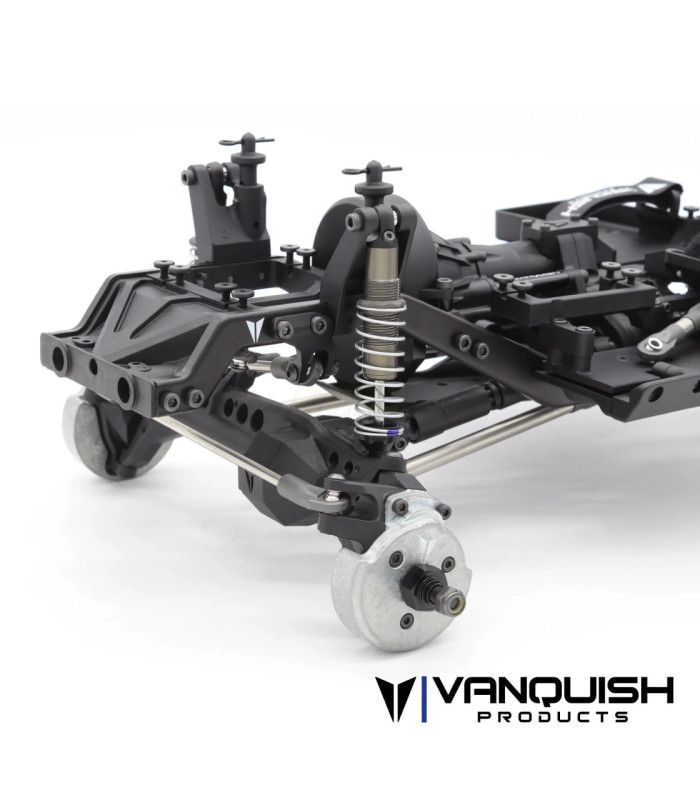

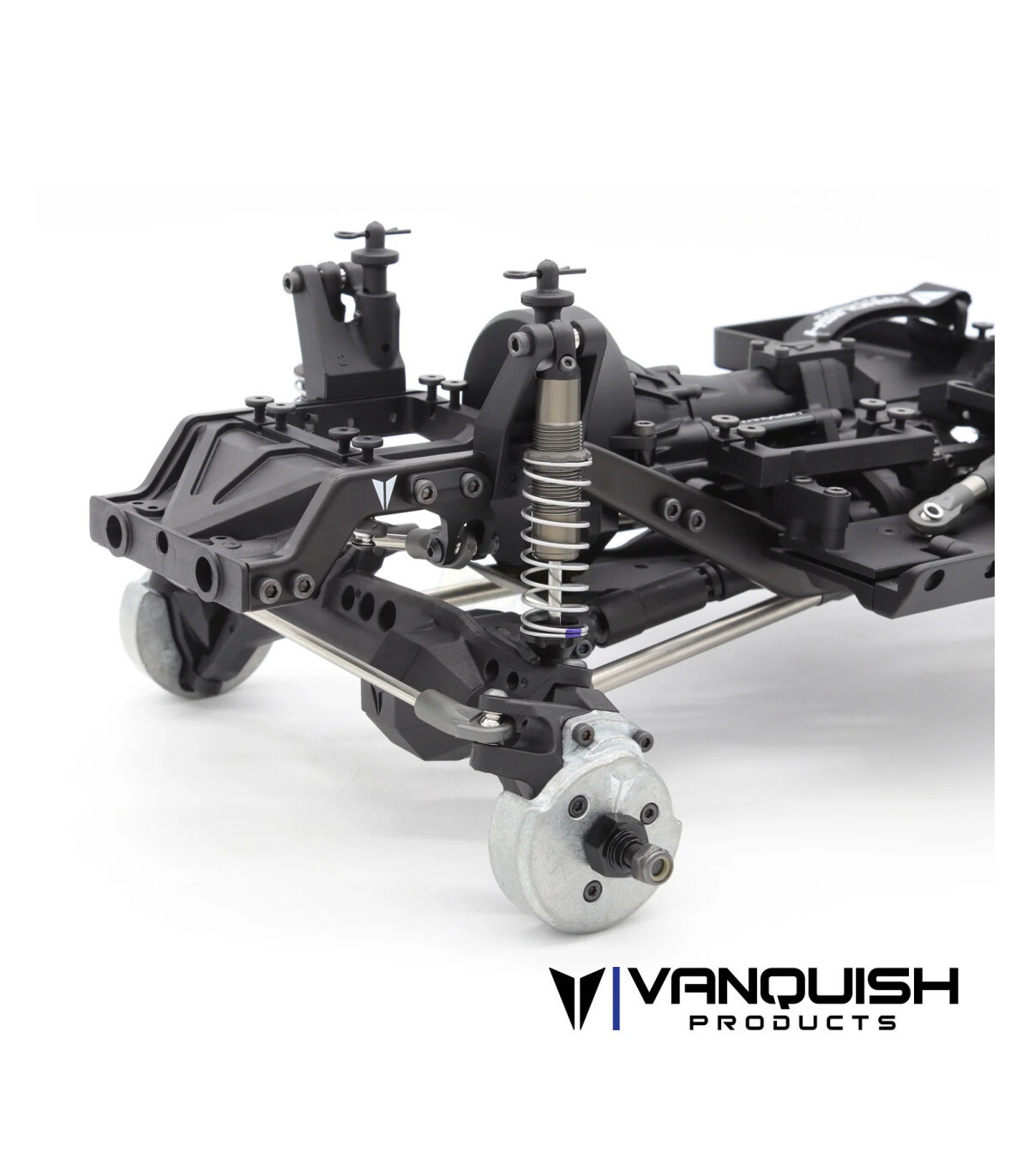

• Portal axles F10 with 49° steering angle, aluminum central housings and high ground clearance

• ISD10 drive shafts with true CV joints for maximum efficiency and freedom of movement

• Incision S8E shock absorbers (80 mm) with hard-anodized aluminum bodies and screw caps

• C-profile steel frame with a well-thought-out layout for maximum rigidity and modularity

• Rock sliders with integrated body mount and optional step mount

• Large battery compartment for LiPo batteries of various formats

• Includes threadlocker, grease, damper oil (30wt) and tools

Technical data:

• Scale: 1/10

• Wheelbase: 313 mm

• Total width (hex to hex): 200mm

• Axle ratio: 5.25:1

• Front gear ratio (6.5% overdrive): 53.7:1

• Front gear ratio (46% overdrive): 35.8:1

• Rear translation: 57.2:1

• Recommended tires: 1.9"

• Recommended rims: 1.9"
