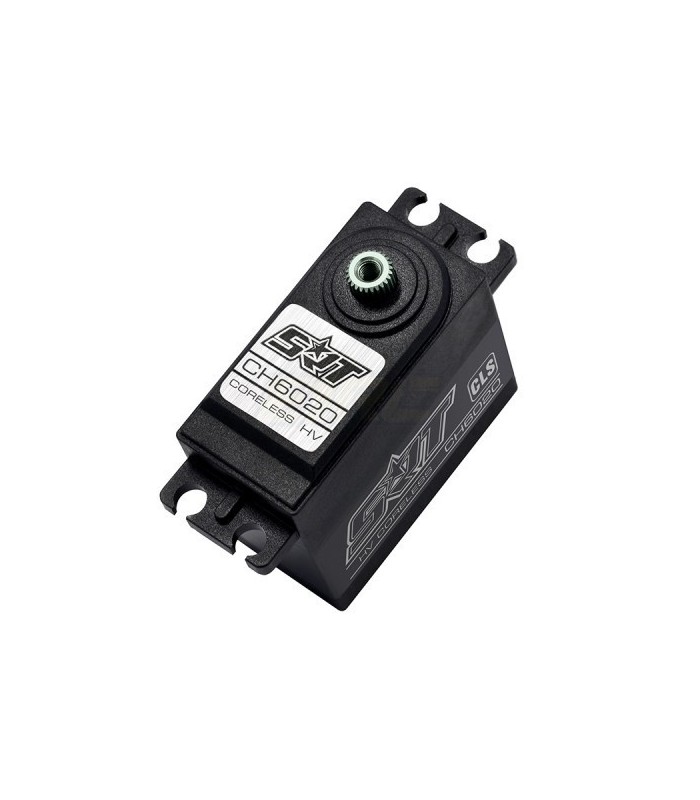

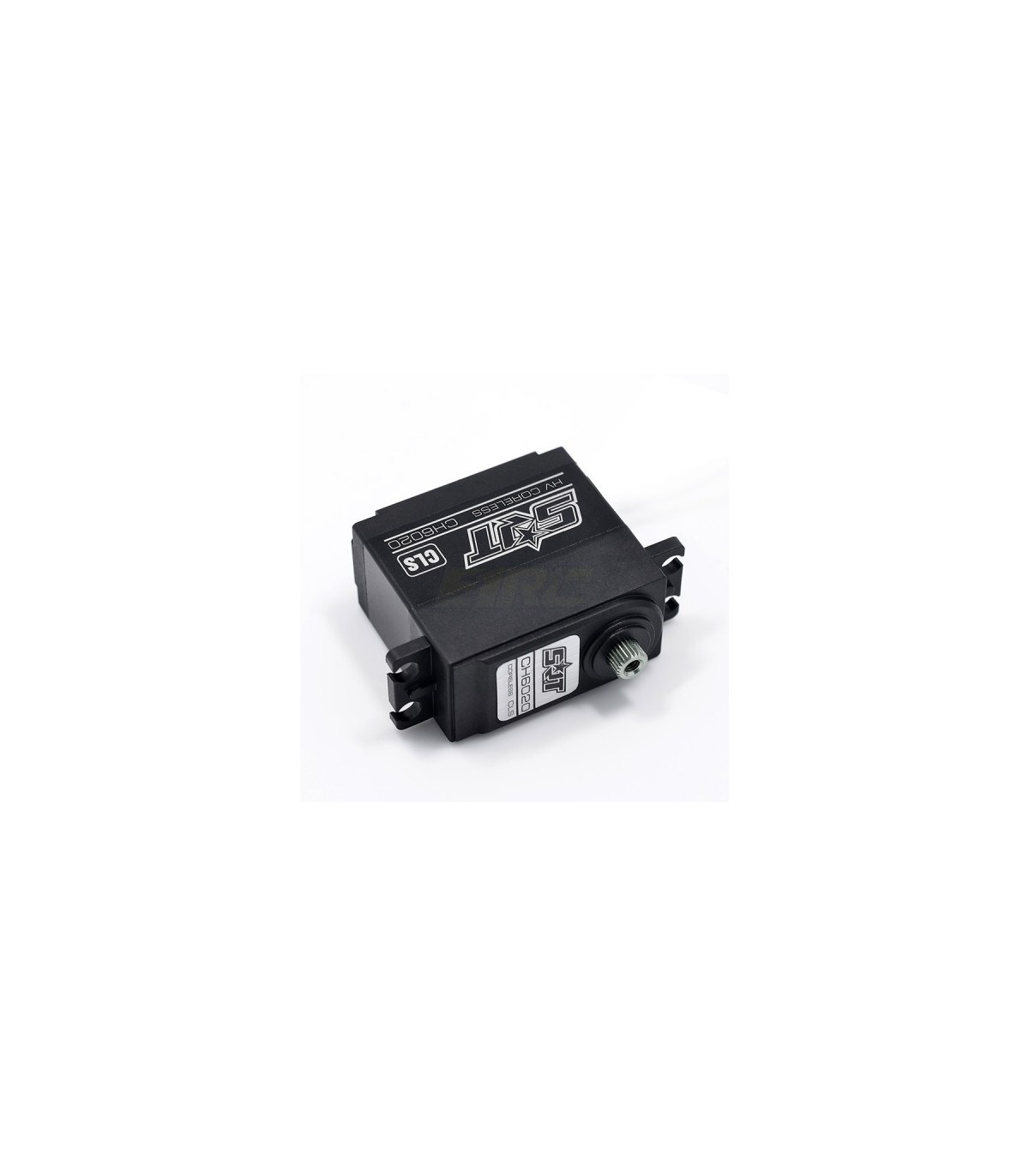

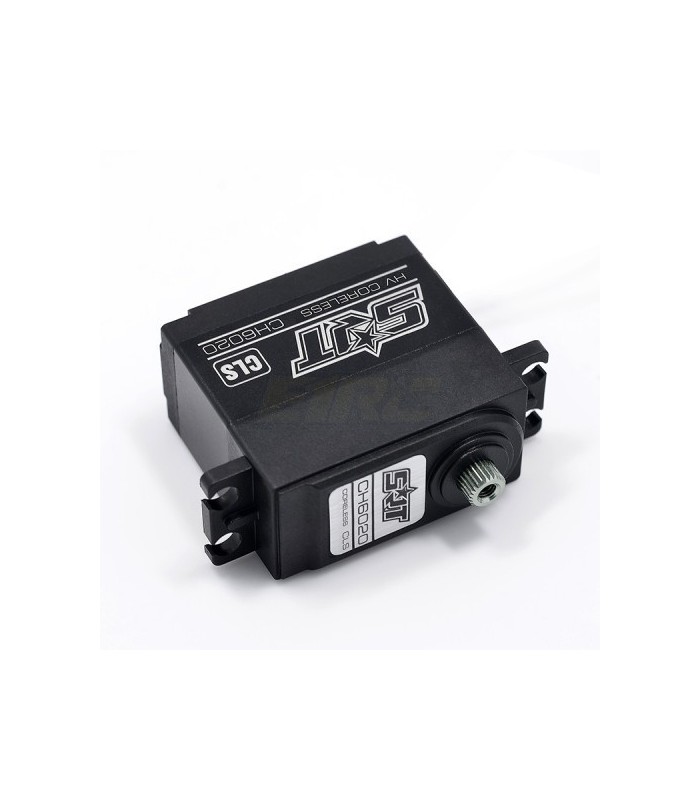

Servo 35Kg 0.10S 1/8 SRT HV digital with metal case and waterproof
Brand:
The Servo SRT W35 is a high voltage servo with up to 35kg of torque and waterproof, ideal as a steering servo for crawlers due to its steel and titanium gears.
Features:
? Ideal for 1/8 and 1/10 On-Road and Off-Road, crawler, etc.
? Aluminum box
? Waterproof
? Superior precision
? NMB dual main bearings
? 25T pinion teeth output
PRODUCT SPECIFICATIONS
Type: digital
Having: Dual
Type of motor: Coreless. Coreless

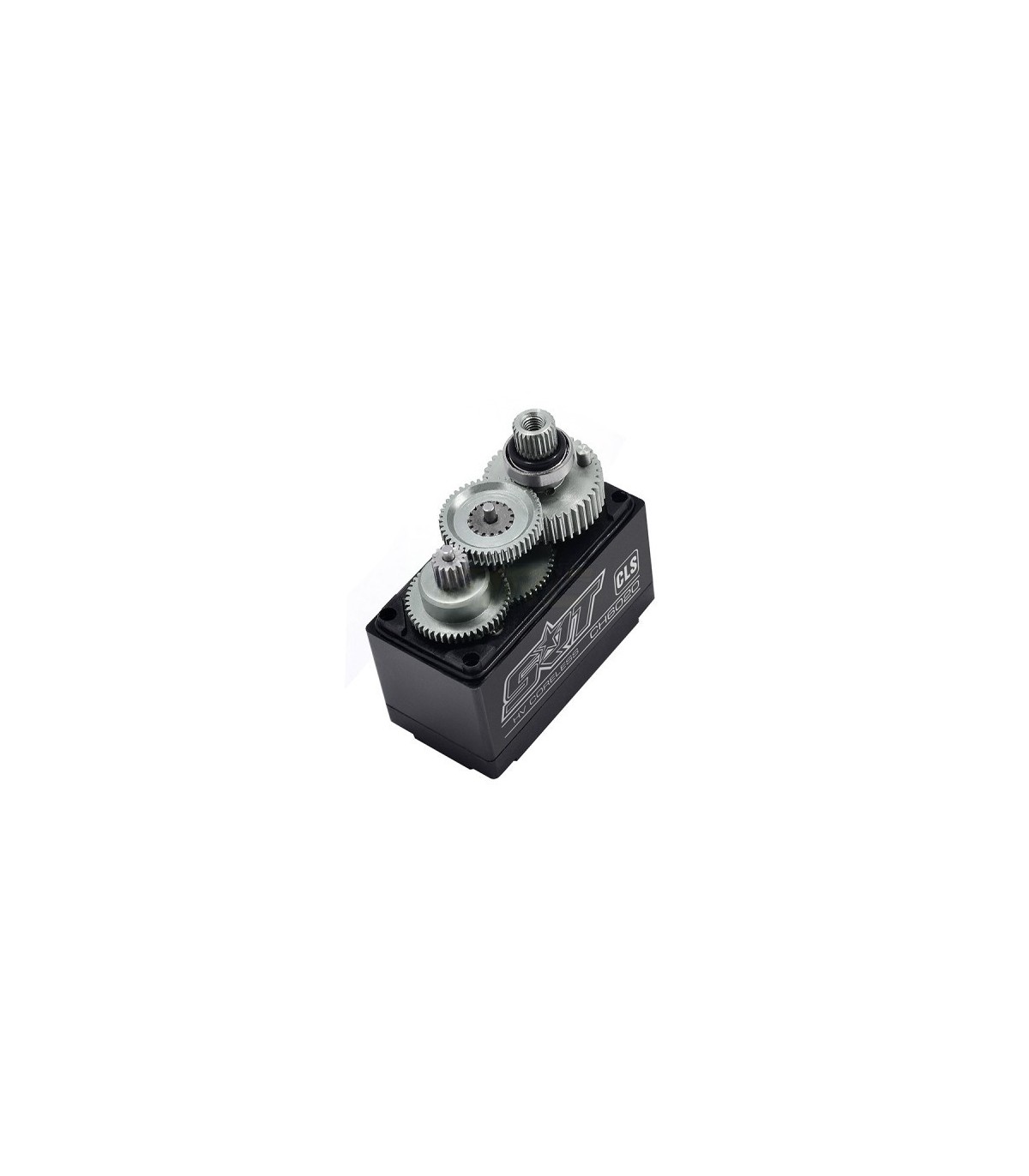

Type of gear: Metal
Gear material: Titanium and aluminum
Control system: pulse width control
Working frequency: 1520 microseconds / 333 Hz
Operating voltage: dc6.0-8.4v
Operating temperature range: -10 to +60 degrees
Operating speed (6.0v): 0.15 sec/60 degrees unloaded
Operating speed (7.4 V): 0.12 sec/60 degrees unloaded
Operating speed (8.4v): 0.10 sec/60 degrees unloaded
Lock pair (6.0v): 25.0kg.cm (347.2 oz / in)
Locking pair (7,4 v): 30.0 kg.cm (416.6 oz / in)
Pair of stop (8.4v): 35.0 kg.cm (486.1 oz / in)
Potentiometer drive: direct drive
Dimensions: 40.7x20.5x38.6 It appears that the text provided is incomplete. Can you please provide more context or clarify your request?1.60x0.81x1.52 in
Weight: 82.5 g (2.91 oz)
Cable connector length: jr 360mm
