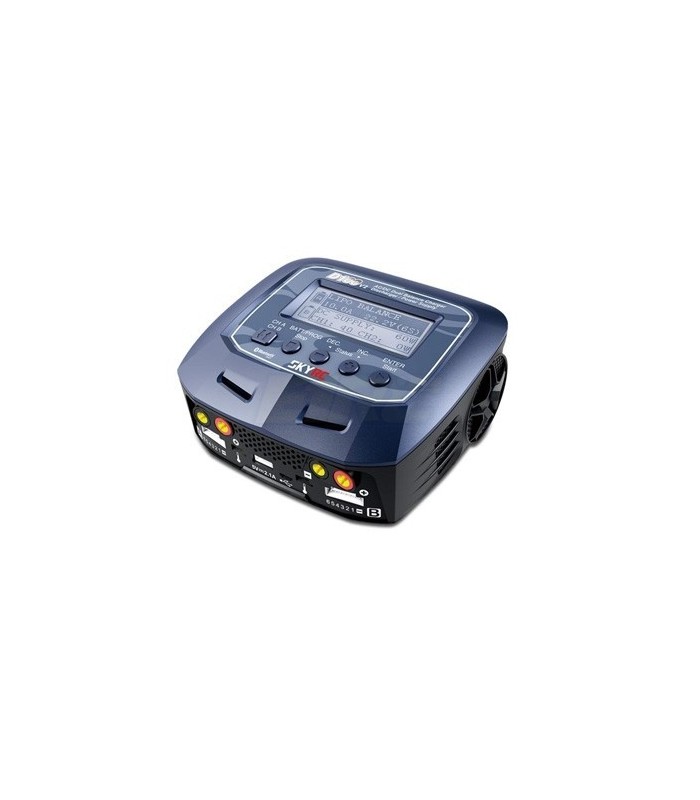

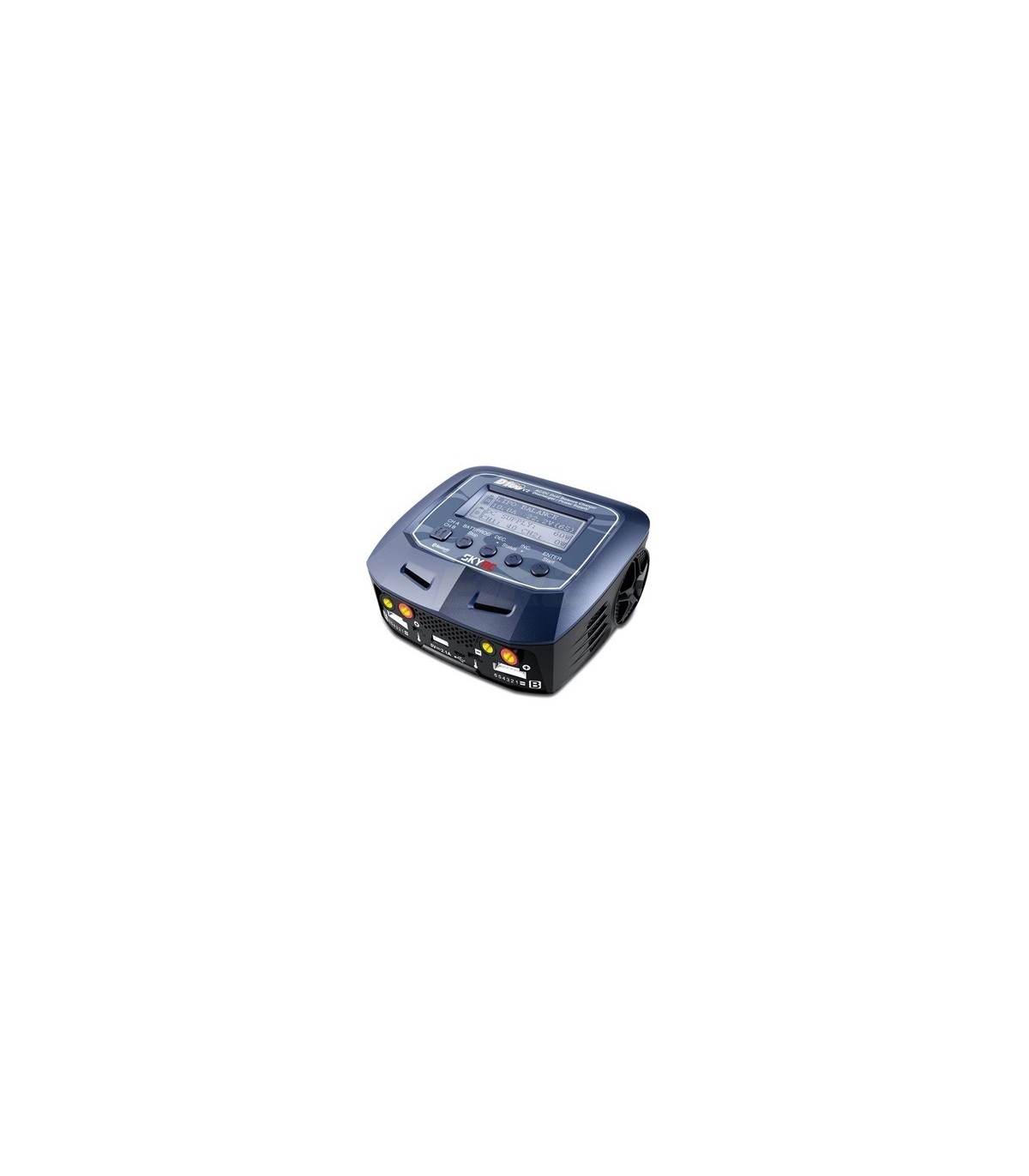

Charger Sky Rc D100 v2 AC/DC Dual Balance Charger

SkyRC D100 v2 is a dual-channel charger with two independent circuits that can charge batteries of different chemistries (LiPo / LiHV / LiFe / Lilon / NiMH / NiCd / PB) simultaneously. Capable of functioning as a power supply with a maximum output of 100W, it helps hobbyists power DC equipment. With its unprecedented voice guide function, even a first-year student can use this charger without any obstacles. Additional feature includes our "SCAN TO GO".

Voice Guide

The goal is to make the charger easier to use and customizable. A speaker compatible with English and Chinese has been included separately on the left side of the charger, which can reduce incorrect operation times.

Power Distribution

The charger supports power distribution between channel A / channel B and power supply with a total power of 100W in AC mode.

DC Power Supply

The ability to supply DC power of 100W / 13.8V dramatically expands its range of use, making it a fantastic partner for hobbyists powering DC equipment.

Dual Channel Charger

SkyRC D100 v2 allows you to plug in 2 batteries in one charger simultaneously, and it will intelligently and automatically charge 2 batteries at once.

LiHV Mode Available

The additional LiHV mode can charge the new generation of LiPo batteries with an end charge voltage of 4.35V.

SkyCharger App

Bluetooth 4.0 connectivity allows the user to conveniently control and monitor the D100 v2 through an app on a portable device like a smartphone, iPad, or iPhone. The iOS app can be downloaded from the iTunes Store, and the Android app from the Google Play Store. The app operation is self-explanatory and is the same on iOS and Android. No explicit pairing is required; after download and installation, simply turn on Bluetooth on your mobile device and launch the app. D100 v2 and your device will establish the Bluetooth connection automatically.

SCAN TO GO

A very exclusive feature of D100 v2 is SCAN TO GO (automatic charging system). As the range of battery types and capacities expands, each battery requires its own dedicated charging process. It's easy to set up the charger incorrectly for a specific battery type, which can damage the battery or even cause an accident.

The revolutionary SCAN TO GO provides a solution to this problem by allowing the user to assign a QR code containing all the relevant battery data for charging or discharging. The user can create a unique QR code using the "SkyCharger" app. Print it out and stick it on the battery.

Using your smartphone, launch the "SkyCharger" app. Since all essential information is stored in the QR code, all you need to do is press the Scan button, and the charging or discharging process will start automatically.

Charge Master

The user can monitor pack voltage, cell voltage, and other data during charging, view charging data in real-time graphs, and also control charging and update firmware from "Charge Master".

Specification

AC Input Voltage: 100-240V

DC Input Voltage: 11-18V

Charging Power: AC 100W (supports power distribution)

DC 100Wx2

Discharge Power - 10Wx2

Charging Current - (0.1A-10.0A) x2

Discharge Current - (0.1A-2.0A) x2

DC Power Supply Output: 13.8V / max. 100W

Balancing Port Drain Current: 300mA / cell

Slow Charging Current - 50mA-300mA and OFF

LiPo / LiFe / Lilon / LiHV Battery Cell Count - 1-6S

NiMH / NiCd Battery Cell Count - 1-15S

Pb Battery Voltage - 2-20V
