Cargador M6D Lipo 1-6S 15A Duo DC 7-28V Toolkit

The M6D charger is smaller, lighter and almost as powerful as the M6DAC charger. With the two available charging channels and the helpful features for discharging, cyclic charging and general settings, You can hardly go wrong with this smart dual device. Due to the special design, the charger is even able to not only supply two batteries with new energy. This charging process can take place both synchronously and asynchronously with the M6D and that is what makes this charger so versatile.

This means that if, for example, two batteries are charged in synchronous mode, the actual charge is the same and the charger can thus provide the maximum charging current of up to 25A. In asynchronous mode, on the other hand, both batteries are charged separately and therefore only a current of max. 15A is possible here.

Features:

Up to 500W charging power and maximum 25A charging current

Max. 250W discharge power

Including DC input (7-28V)

Simple usage with scroll wheel and one button

Multilingual user interface including voice output

Upgradeable via USB

Various security controls

Technical Specifications:

Input Voltage:

DC 7-28V, max. 30A

Charge Power:0.1-15A, 250W x2 (Asynchrone Mode)

0.1-25A, 500W (Synchrone Mode)

Discharge Power:0.1-15A, 250W x2 (Recycle Mode)

0.1-3A, 12W x2 (Normal Mode)

Charging Accuracy:<0.005V

USB C:2.1A, 5V (or Upgrade)

Balance Current:800mA, 2-6S

Cells LiPo/LiFe/LiIon/LiHV1-6S

Cells: NiMH/NiCd1-16S

Pb Battery Voltage:1-10S

Voltage:1.0V-5.0V, 1-6S

Display:IPS 2.4'' 320x240px LCD

Dimensions:98x68x35mm

Weight:220g

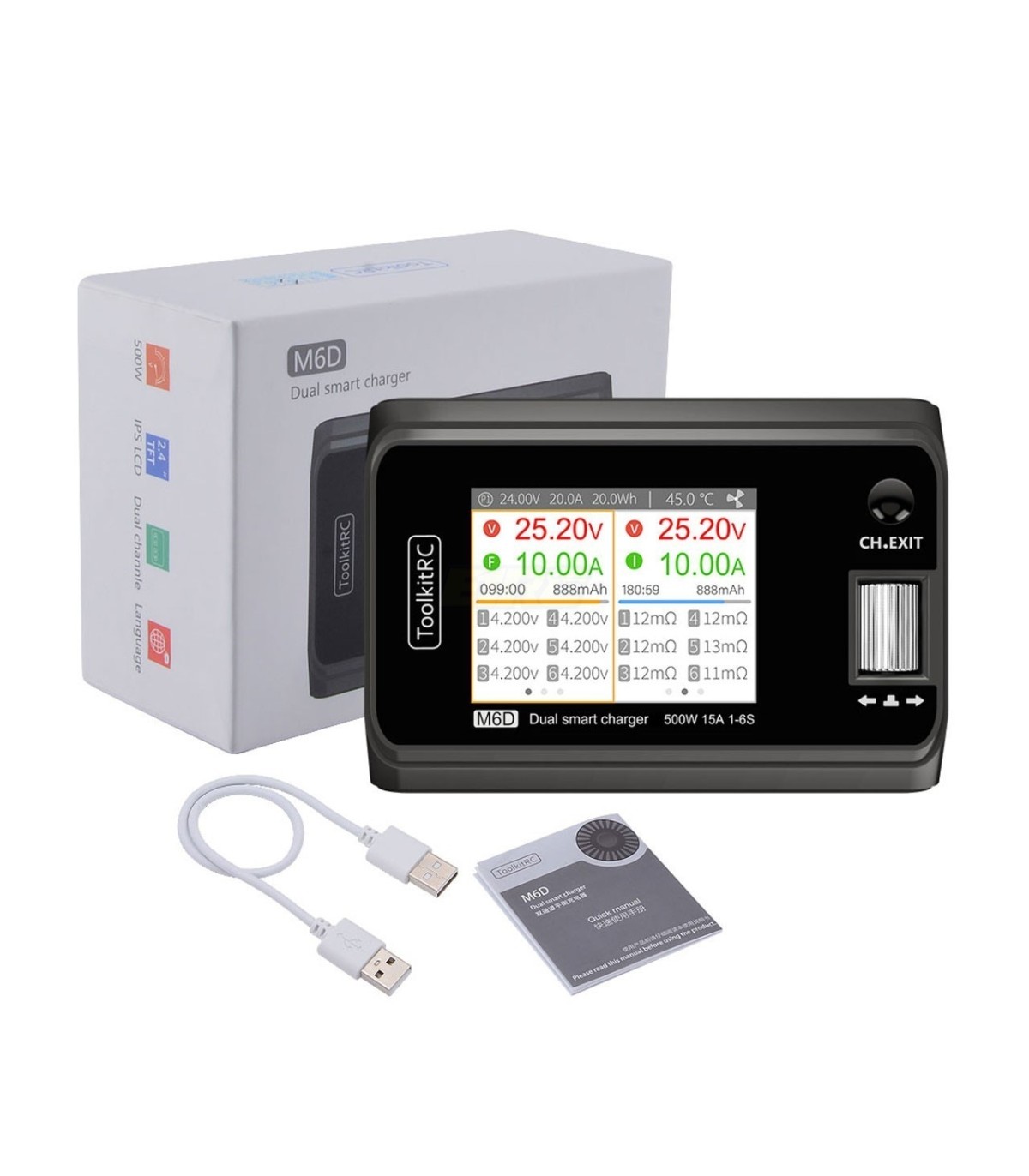

Delivery:

1x M6DAC Charger

1x Power cable

1x USB to USB-C cable

1x Display protection

1x Manual
