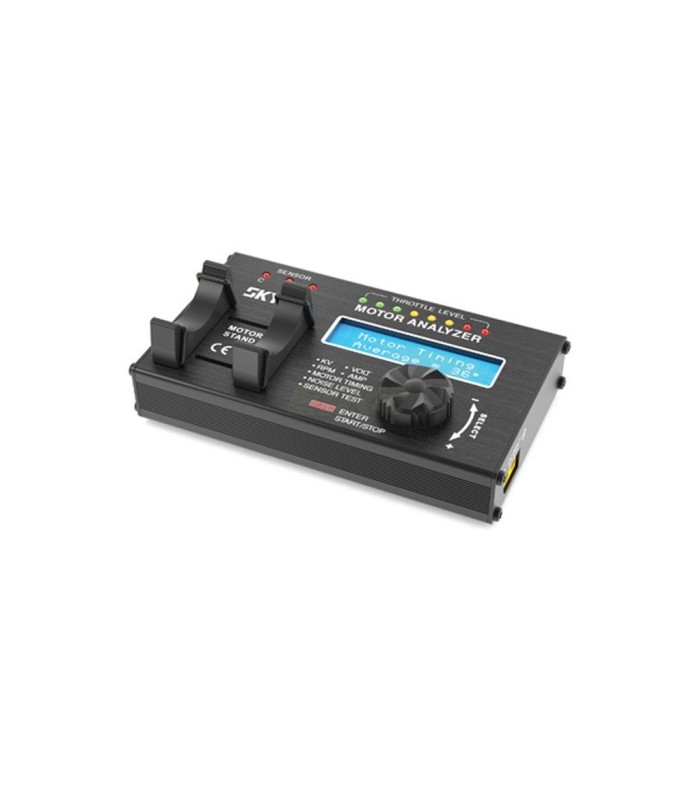

Brushless motor analyzer
Brand:
Specifications:
KV value accuracy: +/- 3%
Motor synchronization accuracy: +/- 4%
Motor synchronization range: 0-70 °
Noise level measurement range: 60dB - 120dB
Dimensions: 136.5 mm x 80.6 mm x 24.5 mm
Net weight: 282 grams (without cable)
Compatible Motor: Sensor or sensorless brushless motor (2 poles to 36 poles)
Current consumption less than 30 A at 8.4 V no load
Input voltage 7.4-8.4V (It is recommended to use a 7.4V 2S 1P LiPo battery)
LCD display: blue backlight, white text, 16 characters X 2 lines
Functions:
KV measurement
RPM measurement
Voltage measurement
Amp measurement
Motor synchronization check
Noise level
Hall effect sensor test
