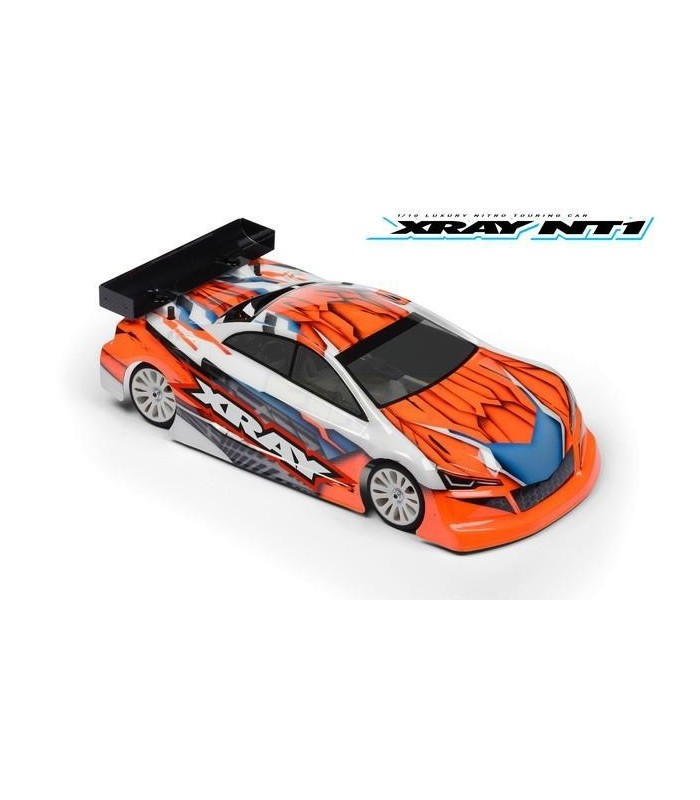

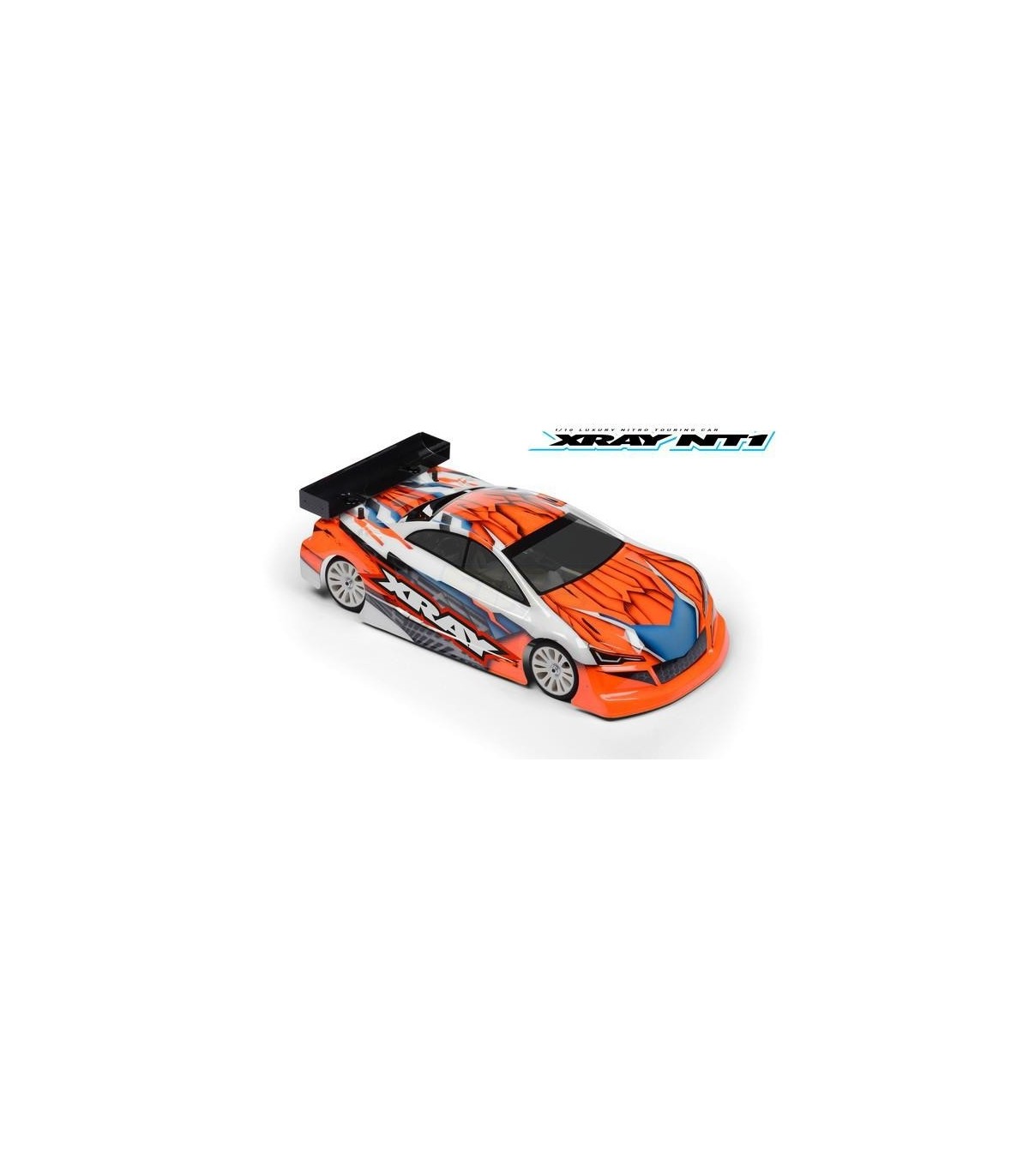

Xray 1/10 NT1 2023 luxury nitro

All-new chassis with narrowed front suspension pivots increases stability & traction

Hard composite suspension arms combined with the improved central chassis flex keeps the suspension geometry stable while the flex is transferred through chassis and radio plate to maintain traction

Narrower front and rear suspension holders for improved traction and stability

Lower down-stop mounting holders without the eccentric geometry make the car easier to set suspension down-stops

All-new front aluminum bulkheads accommodate new upper arm holder with adjustable flex

Redesigned front upper arm holder features new roll center positions in all 9 positions

Ultra-compact and super lightweight receiver box moves the weight lower and closer to the center of the chassis

Radio plate with new servo holders moves the throttle servo more rearwards, the steering servo more frontwards and receiver box with a more central location

Servo saver stand with key lock design

Fuel tube holders allows to be mounted directly on the radio plate for a clean look

Simplified aluminum 2-speed shaft holders eliminate unnecessary braces to make the chassis more flexible, while the wider positioning provide improved support for the 2 speed shaft

Pulley collar is optimized for the fixed position of the pulley on the 2-speed shaft

New rear aluminum bulkheads have a 2mm front/rear wheelbase adjustment for easy traction tuning depending on the track conditions.

Front position more traction, rear position more stability

Longer rear suspension pins for wide range of wheelbase adjustment

Both redesigned rear suspension holders and milled pockets in the chassis plate reduce the lowest pin position to generate more traction when needed

Anti-roll bar bearing bushings front and rear for different thickness of anti-roll bars

New redesigned rear anti-roll bar wire to accommodate narrower suspension and new shape eliminates any collision

Made in Europe.

Designed, developed, and fully manufactured in-house at the XRAY factory in Slovakia, Europe, using the most high-tech German and Swiss machines and premium European materials, crafted with XRAY's trademark attention to detail by our production specialists. The NT1 is truly a masterpiece.
