Fácil montaje / desmontaje
Facil mantenimiento
Disposición centralizada y compacta de piezas en el chasis
Piezas de alto rendimiento ultra duraderas
Chasis y brazos de suspensión MCD de quinta generación
Sofisticada mecánica 4WD impulsada por eje a tiempo completo
Eje y eje de transmisión cromados ultra reforzados
Sistema de malla de engranajes fácil
Bandeja electrónica de una pieza fácilmente extraíble
Chasis de aleación de aviones 7075 T6 liviano, anodizado y mecanizado por CNC
Espoletas largas reforzadas
Protectores laterales aerodinámicos sólidos y duraderos
Cajas de diferenciales de material compuesto delantero, trasero y central fácilmente extraíbles
Sistema de frenos ajustable delantero y trasero ultraduradero
Ranura de servo solo para freno trasero
Torres delanteras y traseras de aleación ligera 7075 para aeronaves de 5 mm
Agujeros de montaje de choque múltiples optimizados
Amortiguadores de aleación extendidos en espiral con sistema High Pressurized Cell ?
Engranajes de transmisión de acero ultra endurecido

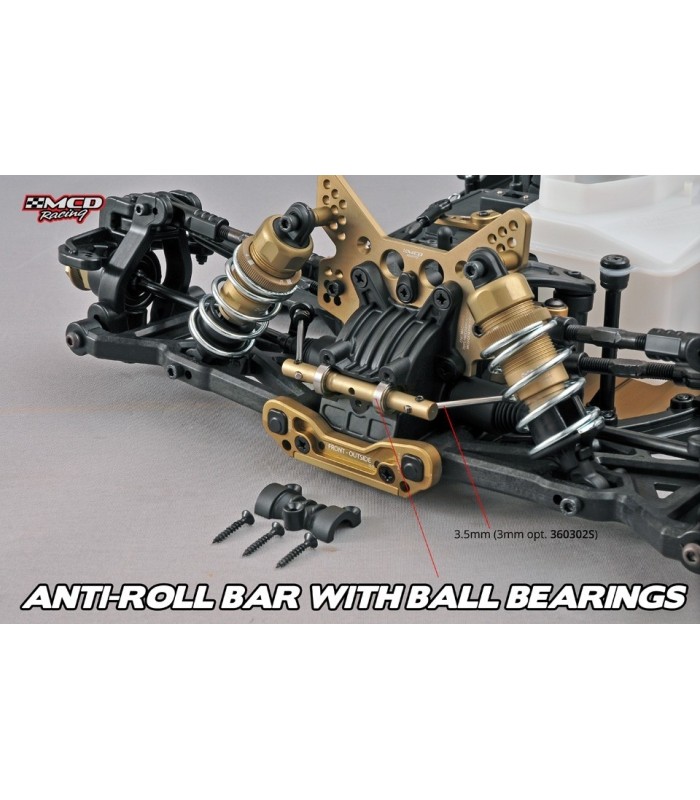

Barras estabilizadoras de doble rodamiento de bolas
Parachoques delantero y difusor trasero de poliamida sin efecto de estrés
Juntas de copa de bola de acero ultra duraderas
Sistema de ventilación de aire Super-Cooling V5
Filtros de aire Viper Racing con espuma de doble capa y manguera termoplástica
Escape de alto rendimiento Barracuda G
CG ajustable
Distribución de peso ajustable
Tanque de combustible moldeado con separadores que absorben las vibraciones
Diferenciales frontales con bloqueo automático de rampa seleccionable de 90 ° a 120 °
Barra de bloqueo sólida central
Diferencial planetario trasero
Accesorios de cuerpo completamente compuestos
Bota del eje de transmisión
|
| ON-ROAD COMPARISON CHART | | Part (Order Code) | Competition | Pro | FT-R | Ultimate | | Short Chassis | Long Chassis (MAX) | | Chassis | 5083 Alloy - Short | 7075 Alloy - CNC Machined - Anodized (400103A) | 7075 Alloy - CNC Machined - Anodized (400103A) | 7077 Alloy - CNC Machined - Anodized (400103A) | | Barracuda G Performance Exaust Set (750601X) | OPT | STD | STD | STD | | Clutch Bell Carrier | Composite | Alloy (415502A) | Alloy (415502A) | Alloy (415502A) | | Engine Clutch House Alloy (415701A) | OPT | OPT | OPT | STD | | DBB Ackerman Plate Standard 8mm (380203A) | OPT | STD | STD | STD | | Front Diff. | Planetary F/R | LSD F/R (200101X) | LSD F/R (200101X) | LSD F/R (200103X) | | Center Diff. | Solid Lock Bar | Solid Lock Bar | LSD Center (200201X) | LSD Center (200203X) | | Rear Diff. | Planetary F/R | Planetary F/R | Planetary F/R | LSD F/R (200103X) | | Diff. Case | Composite | Composite | Composite | Alloy (200402A) | | Front Diff. House Inner | Composite | Composite | Composite | Alloy (415102A) | | Rear Diff. House Inner | Composite | Composite | Alloy (415102A) | Alloy (415102A) | | Center Diff.Holder Set | Composite | Composite | Alloy (415202A) | Alloy (415202A) | | Front Wishbone Alloy (300104A) | OPT | OPT | STD | STD | | Front Hub L/R | Composite | Composite | Alloy (300603A) | Alloy (300603A) | | Rear Hub L/R | Composite | Composite | Alloy (300604A) | Alloy (300604A) | | L/R Caster Block | Composite(6°) | Composite(6°) | 0° Alloy (300704A) | 0°, ±4° Alloy (300705X) | | Pro-Bite Racing Clutch (290101X) | OPT | OPT | OPT | STD | | Turnbuckle Set | Steel | Steel | Steel | Alloy (301204X) | | Shock Absorbers | Composite | Alloy (320103X) | Alloy (320103X) | Alloy (320107X) | | Upper Shock Absorber Joint Cup | Composite | Composite | Composite | Alloy (320502A) | | Lower Shock Absorber M5 Joint | Composite | Composite | Composite | Alloy (320503A) | | M8 Upper Wishbone Rose Joint L/R Thread | Composite | Composite | Alloy (340102A) | Alloy (340102A) | | Servo Saver Upper Arm | Composite | Composite | Composite | Alloy (380102A) & Composite | | Steering Servo Turnbuckle | Steel | Steel | Steel | Alloy (381002A) | | Brake Plate | Composite | Composite | Alloy (415302A) | Alloy (415302A) | | Lay Shaft Carrier | Composite | Alloy (415402A) | Alloy (415402A) | Alloy (415402A) | | Rear Upper Stiffener Alloy (446201A) | OPT* | OPT* | STD | STD | | Front Stiffener | Composite | Composite | Composite | Alloy (445102A) | | Rear Stiffener | Composite | Alloy (445202A) | Alloy (445202A) | Alloy (445202A) | | Upper Stiffener Alloy | OPT** | OPT** | Alloy (446101A) | Alloy (446101A) | | Diff.House-Stiffener Spacer | Composite | Composite | Alloy (460102A) | Alloy (460102A) | | Carburetor / AirFilter Venturi | Composite | Composite | Alloy (725302A) | Alloy (725302A) | | Engine Insulator Alloy G230-G290 (726002A) | OPT | OPT | OPT | STD | | Radio/Servo Tray - Hydraulic Brake Compatible (930301X) | OPT | OPT | OPT | STD | | Brake Disc | Spring Steel | Spring Steel | Light Weight ABS (260102S) | Light Weight ABS (260102S) | | Front Wishbone Holder Set | Composite | Alloy (300203A) | Alloy (300203A) | Alloy (300203A) | | Rear Wishbone Holder Set | Composite | Alloy (300303A) | Alloy (300303A) | Alloy (300303A) | | Anti-Roll Bar Set F/R 3.5mm (360101X) | OPT | STD | STD | STD | | Front Tower | Alloy 5mm | Alloy 5mm (430303A) | Alloy 5mm (430303A) | Alloy 5mm (430303A) | | Rear Tower | Alloy 5mm | Alloy 5mm (430403A) | Alloy 5mm (430403A) | Alloy 5mm (430403A) | | *Required for assembly: 446201A, 415402A and 415302A | | **Required for assembly: 446101A and 446301A |
| Length | : 1010 mm | | Width | : 480 mm | | Overall height | : 375 mm | | Ground clearance | : 25-42 mm | | Weight | : 14.2kg | | Wheelbase | : 610-620 mm (adjustable) | | Trackwidth | : 410mm | | Chassis material | : 7075 Anodized T6 Alloy (4mm) | | Suspension | : Non-parallel non-line independent | | Caster angle | : 8°(6° - 10°(total caster) adjustable) | | Camber angle | : Adjustable | | Toe angle | : In-board and out-board adjustable | | Anti-squat | : 3°(adjustable) | | Rear-squat | : 5° | | Dive, Anti-dive | : 6°-10°(adjustable) | | Shock absorber | : Coil-over Oil-filled Internal High Pressure Cell | | Transmission | : Full-Time 4WD 3-Diff Shaft Driven | | Gear ratio | : 7,2:1 (18 available 7,2:1 to 10,67:1) | | Tyre size | : 65 x 160 mm |
|
