Short Course

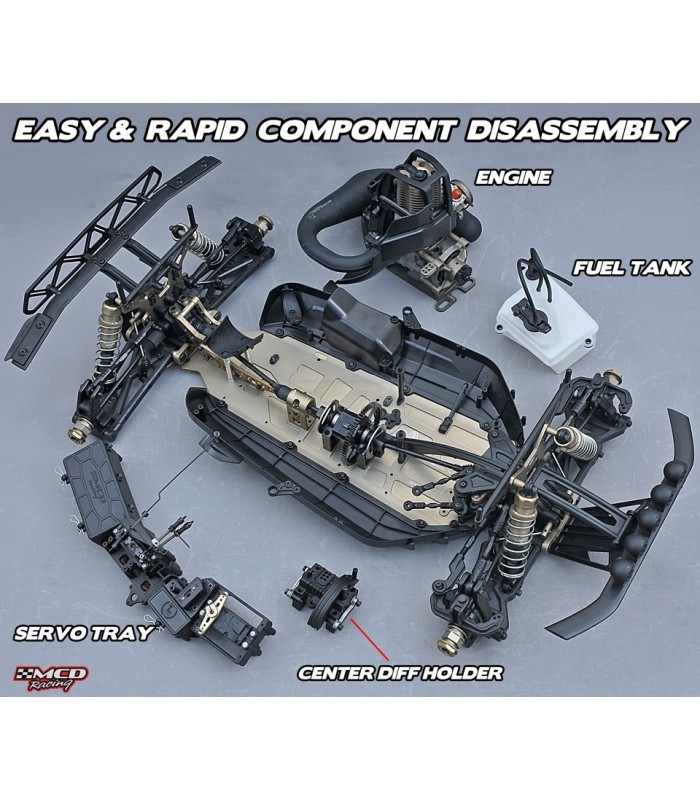

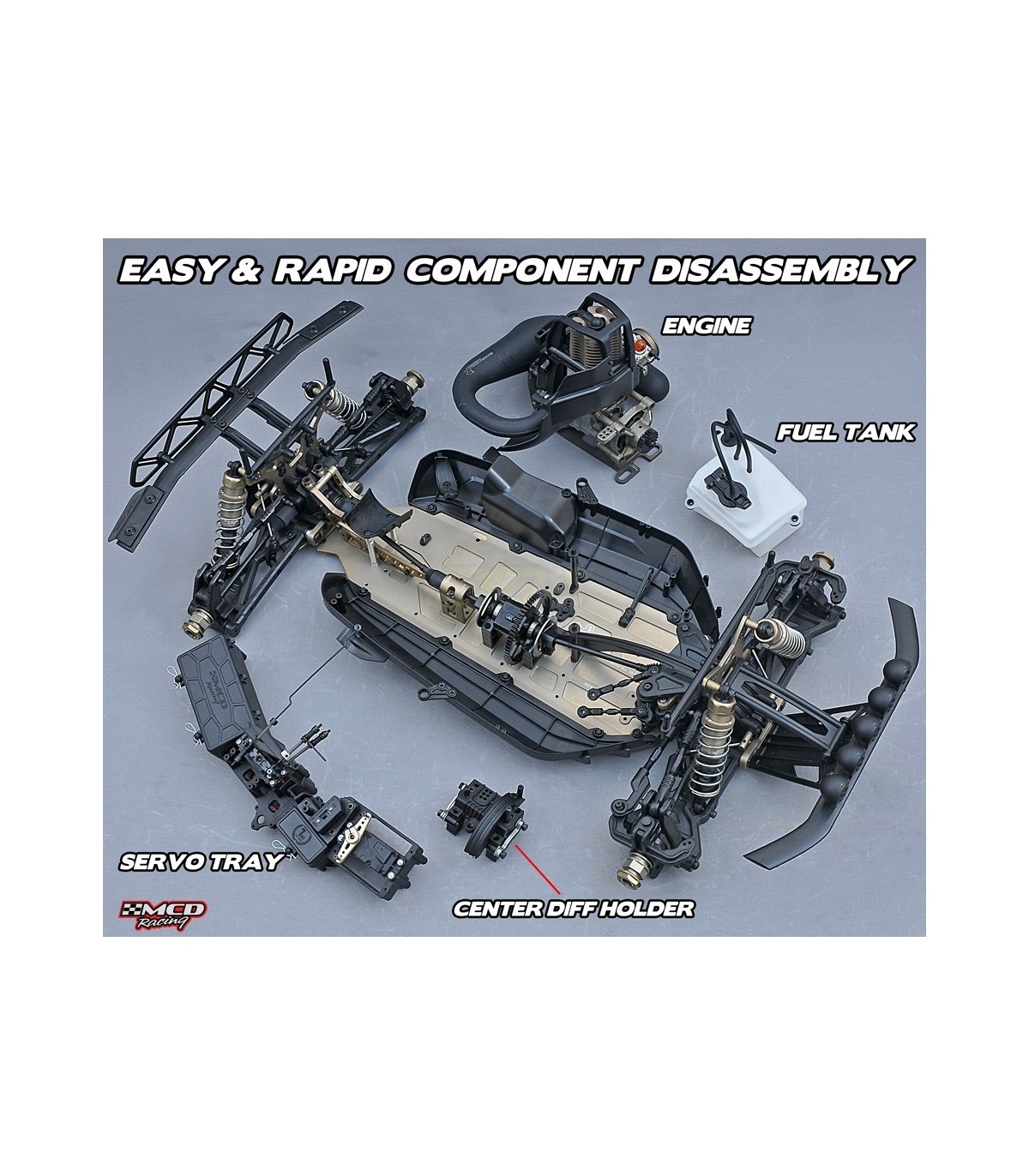

Fácil montaje / desmontaje
Facil mantenimiento
Disposición centralizada y compacta de piezas en el chasis
Piezas de alto rendimiento ultra duraderas
Chasis y brazos de suspensión MCD de quinta generación

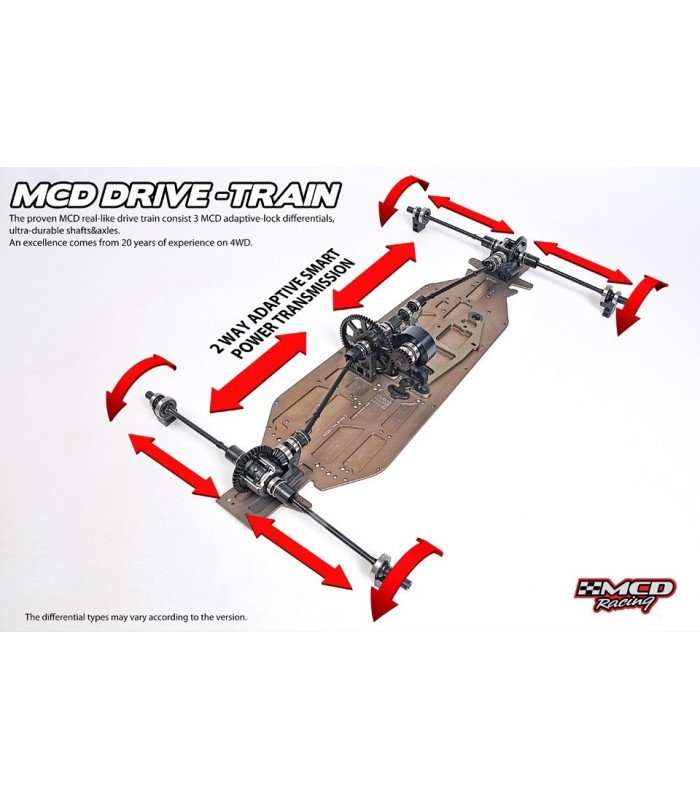

Sofisticada mecánica 4WD impulsada por eje a tiempo completo

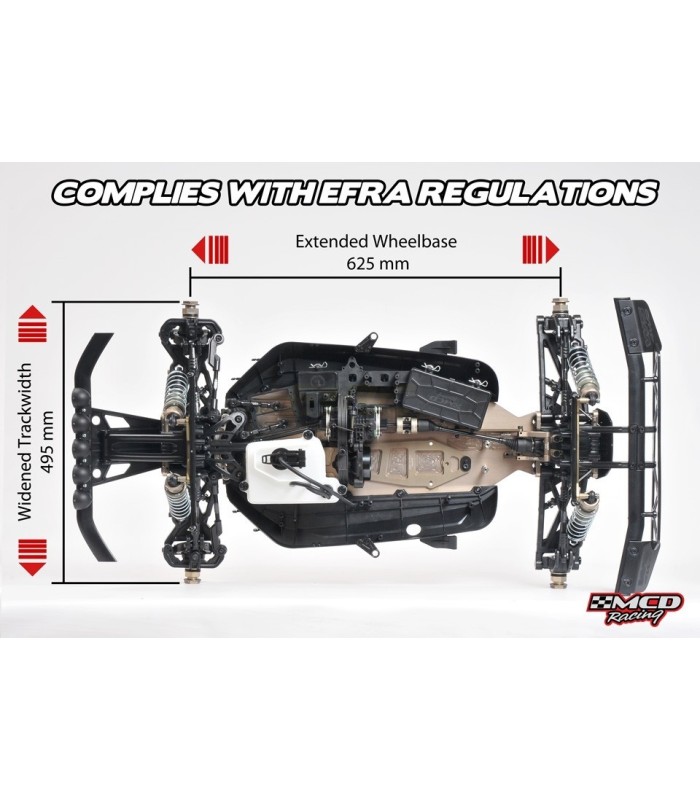

Dimensiones compatibles con EFRA
Eje y eje de transmisión cromados ultra reforzados
Sistema de malla de engranajes fácil
Bandeja electrónica de una pieza fácilmente extraíble
Chasis de aleación de aviones 7075 de peso ligero anodizado mecanizado CNC

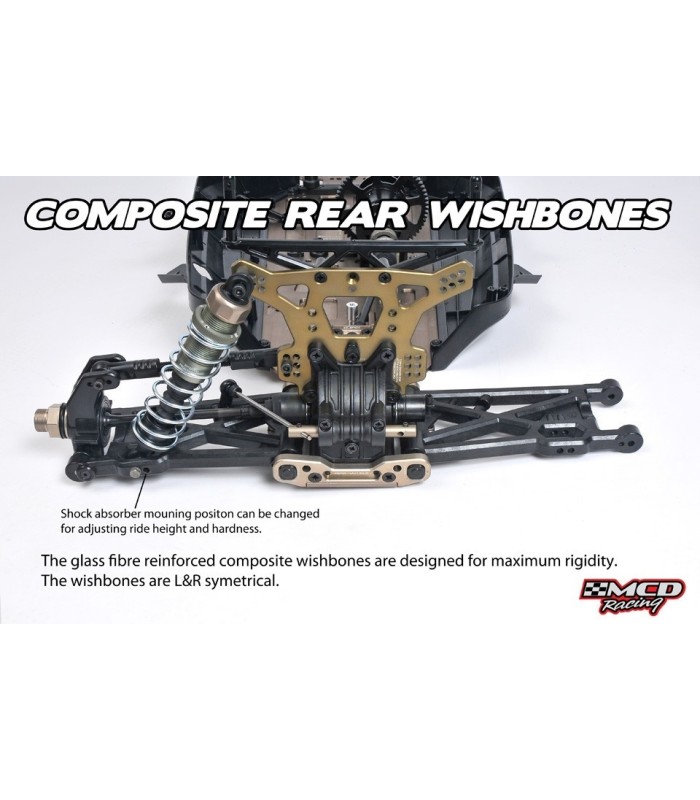

Espoletas largas reforzadas
Espoletas más blandas de repuesto
Protectores laterales sólidos y duraderos
Cajas de diferenciales de material compuesto delantero, trasero y central fácilmente extraíbles
Sistema de frenos ajustable delantero y trasero ultraduradero

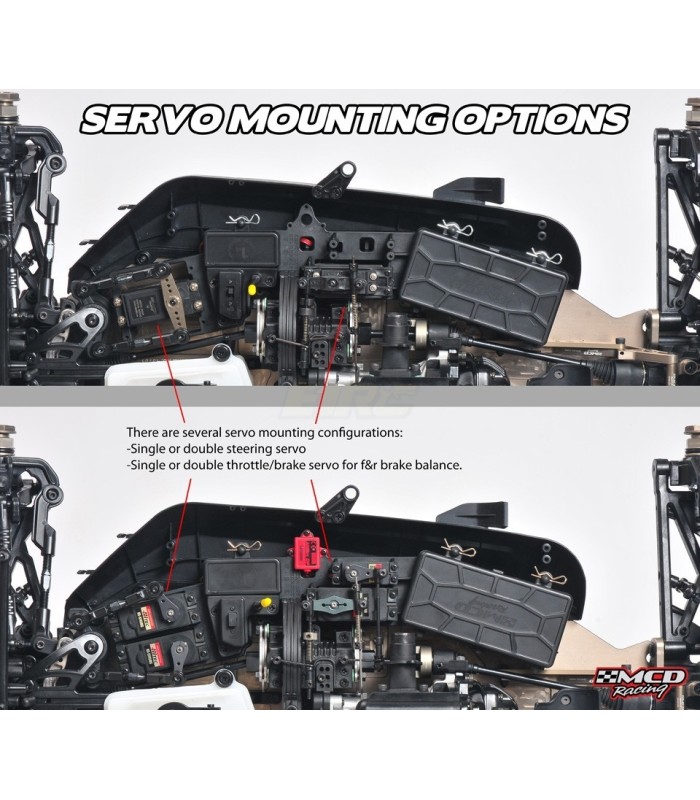

Ranura de servo solo para freno trasero
Torres delanteras y traseras de aleación ligera 7075 para aeronaves de 5 mm
Agujeros de montaje de choque múltiples optimizados

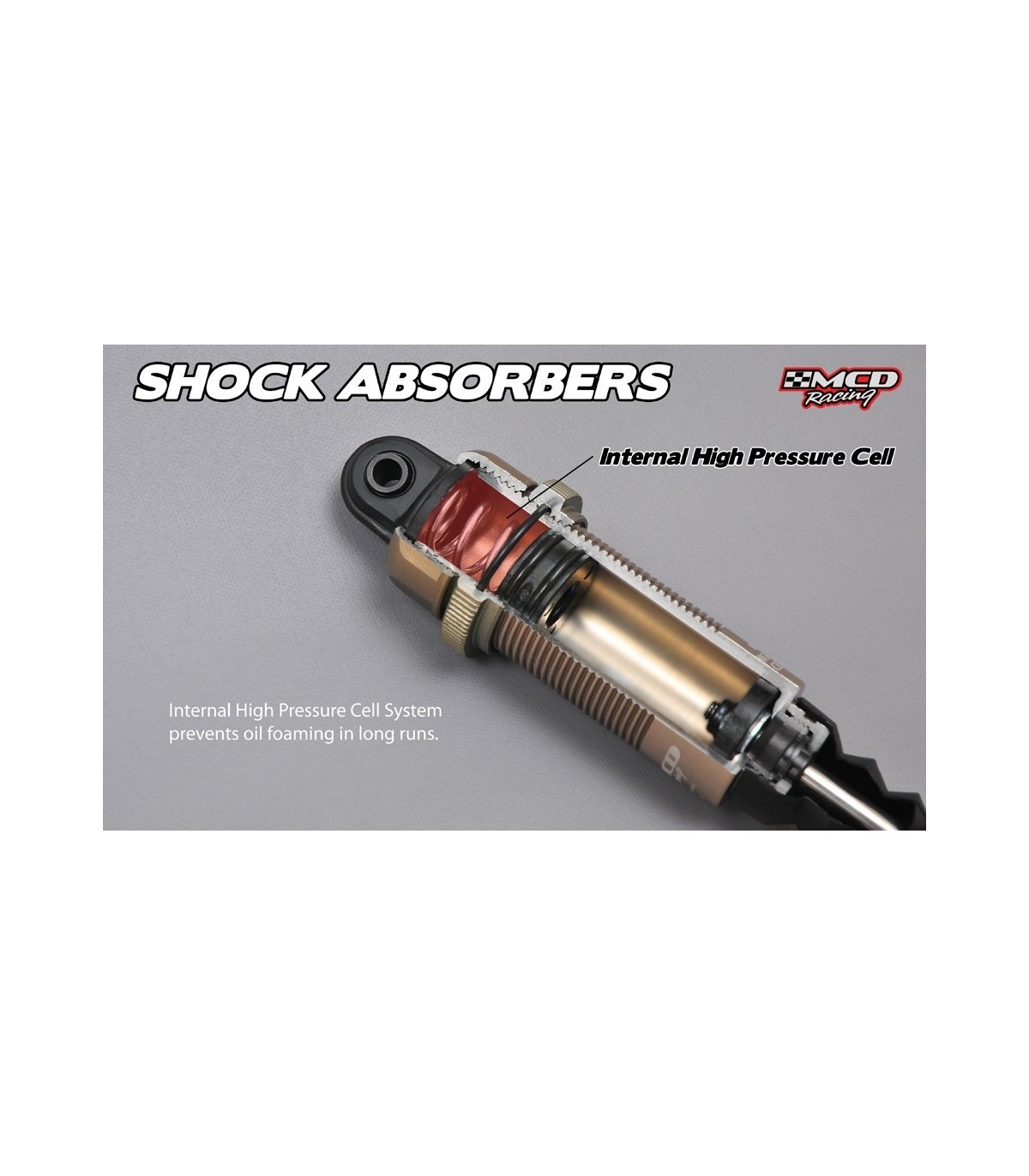

Amortiguadores de aleación extendidos en espiral con sistema High Pressurized Cell ?
Cuerpos de choque de aleación anodizada
Engranajes de transmisión de acero ultra endurecido

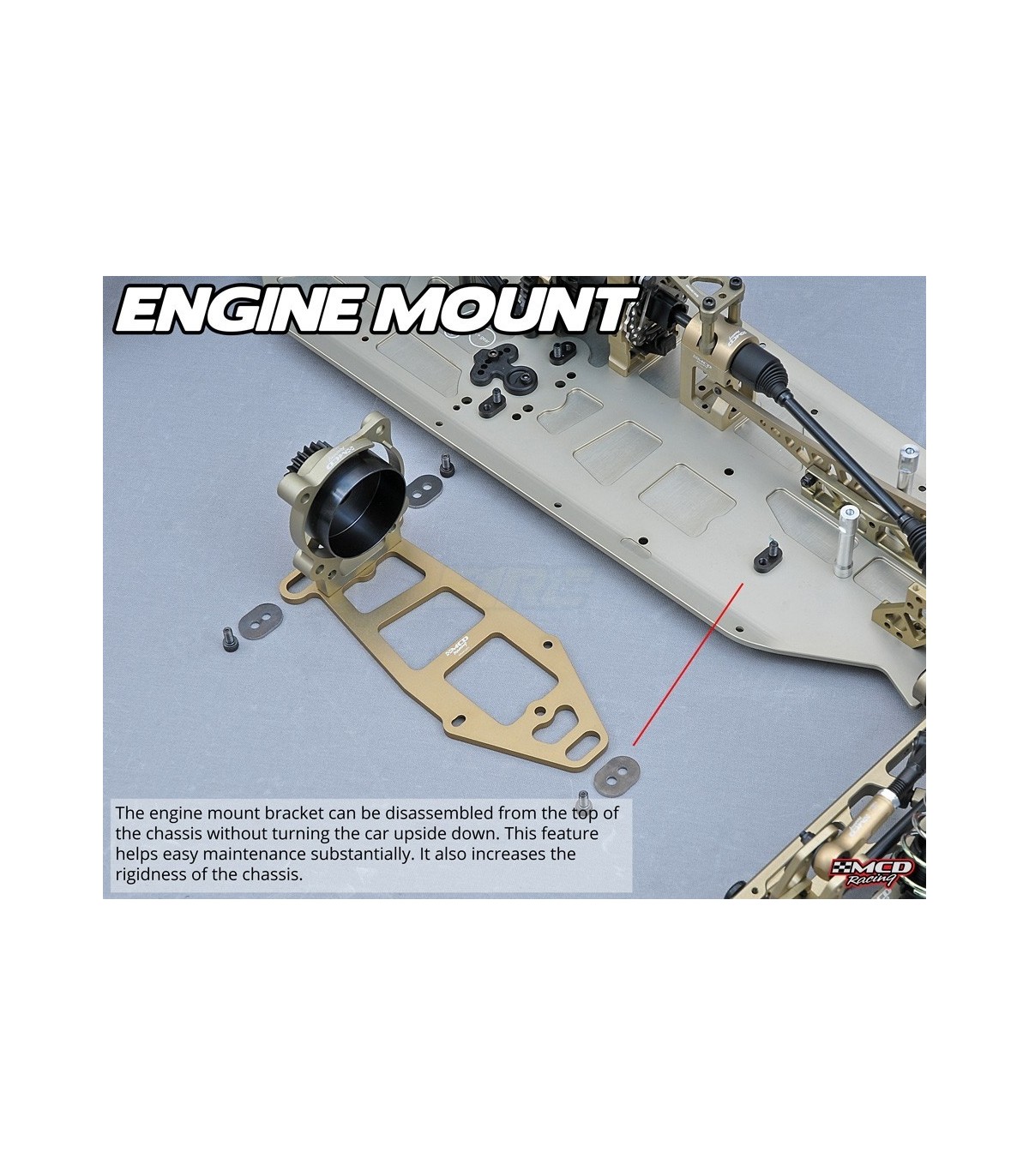

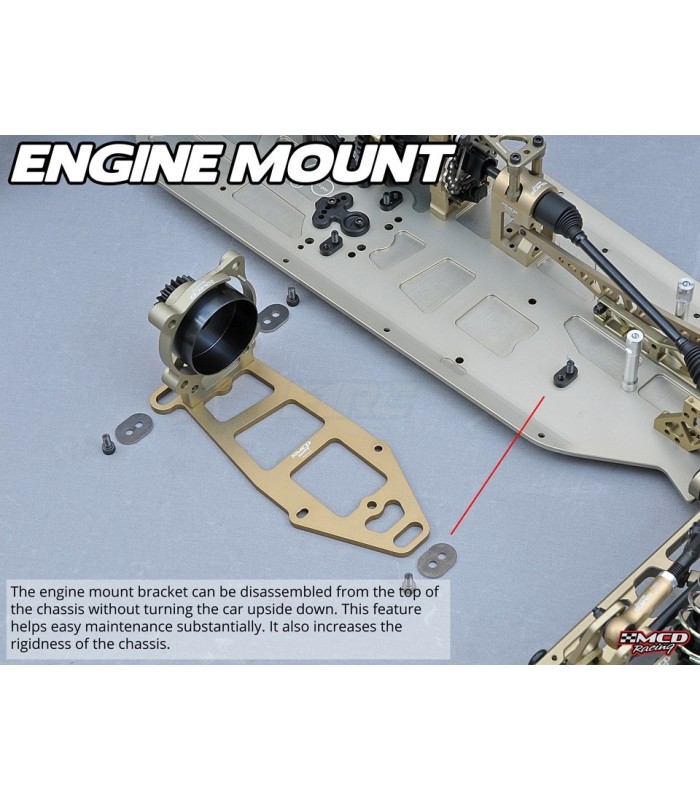

Soporte de motor de aleación anodizada mecanizada por CNC
Barras estabilizadoras de doble rodamiento de bolas
Parachoques delantero y trasero de poliamida sin efecto de estrés
Juntas de copa de bola de acero ultra duraderas
Diferenciales planetarios
Sistema de ventilación de aire Super-Cooling V5
Filtros de aire Viper Racing con espuma de doble capa y manguera termoplástica

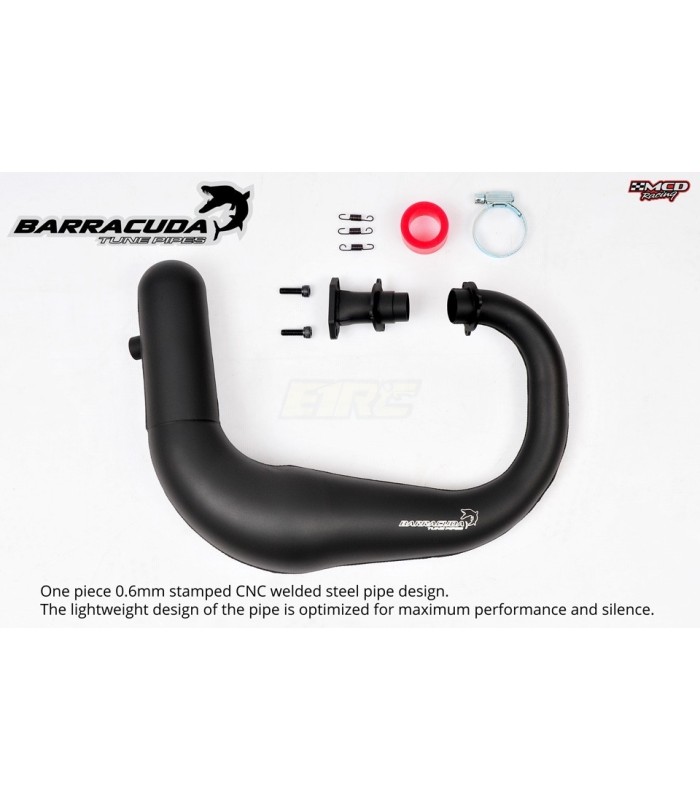

Escape de alto rendimiento Barracuda G
Disipador de calor del cilindro del motor (opcional)
CG ajustable
Distribución de peso ajustable
Tanque de combustible moldeado con separadores que absorben las vibraciones
Accesorios de cuerpo completamente compuestos
Soportes de pasadores de bisagra de aleación
Refuerzo delantero mejorado

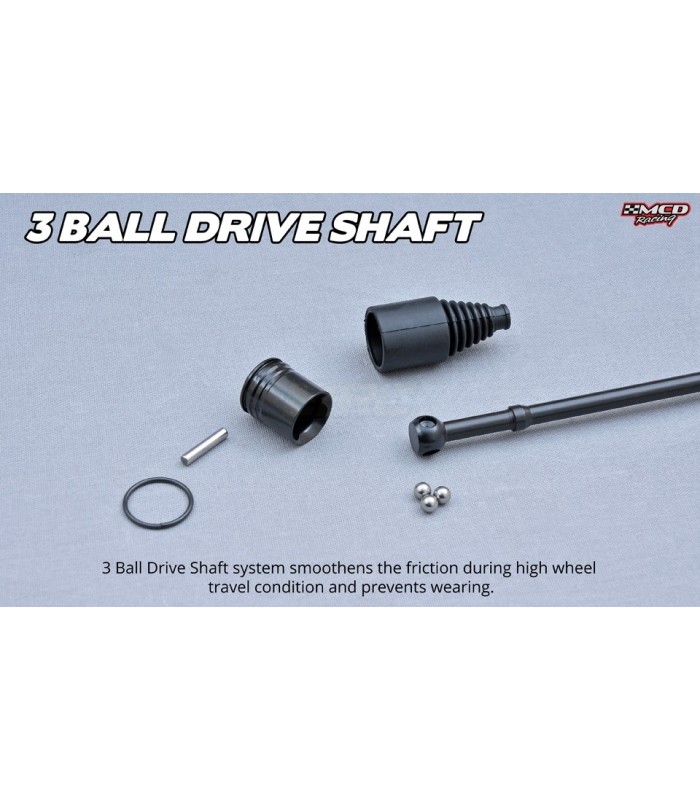

Funda de eje de transmisión y amortiguador
 |

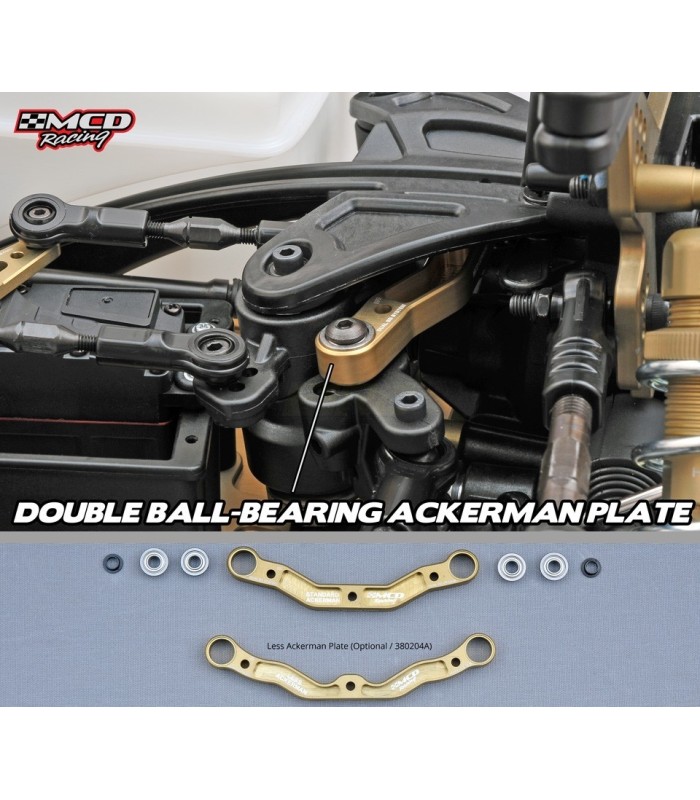

| OFF-ROAD COMPARISON CHART | | Part (Order Code) | Competition | Pro | FT-R | Ultimate | | Short Chassis | Long Chassis (MAX) | | Chassis | 5083 Alloy - Short | 7075 Alloy - CNC Machined - Anodized (400103A) | 7075 Alloy - CNC Machined - Anodized (400103A) | 7077 Alloy - CNC Machined - Anodized (400103A) | | Barracuda G Performance Exaust Set (750601X) | OPT | STD | STD | STD | | Clutch Bell Carrier | Composite | Alloy (415502A) | Alloy (415502A) | Alloy (415502A) | | Engine Clutch House Alloy (415701A) | OPT | OPT | OPT | STD | | DBB Ackerman Plate Standard 8mm (380203A) | OPT | STD | STD | STD | | Front Diff. | Planetary F/R | Planetary F/R | LSD F/R (200101X) | LSD F/R (200103X) | | Center Diff. | Planetary Center | Planetary Center | LSD Center (200201X) | LSD Center (200203X) | | Rear Diff. | Planetary F/R | Planetary F/R | Planetary F/R | LSD F/R (200103X) | | Diff. Case | Composite | Composite | Steel | Alloy (200402A) | | Front Diff. House Inner | Composite | Composite | Composite | Alloy (415102A) | | Rear Diff. House Inner | Composite | Composite | Alloy (415102A) | Alloy (415102A) | | Center Diff.Holder Set | Composite | Composite | Alloy (415202A) | Alloy (415202A) | | W5 MAX Front Wishbone Alloy (300104A) | OPT | OPT | STD (W5 Only) | STD (W5 Only) | | Front Wishbone Alloy for 599 Wheelbase (300108A) | OPT | OPT | STD (RR5 Only) | STD (RR5 Only) | | Front Hub L/R | Composite | Composite | Alloy (300603A) | Alloy (300603A) | | Rear Hub L/R | Composite | Composite | Alloy (300604A) | Alloy (300604A) | | L/R Caster Block | Composite(6°) | Composite(6°) | 0° Alloy (300704A) | 0°, ±4° Alloy (300705X) | | Pro-Bite Racing Clutch (290101X) | OPT | OPT | OPT | STD | | Turnbuckle Set | Steel | Steel | Steel | Alloy (301204X) | | Shock Absorbers - Front | Composite | Alloy (320103X) | Alloy (320103X) | Alloy (320107X) | | Shock Absorbers - Rear (RR5) | Composite | Alloy (320202X) | Alloy (320202X) | Alloy (320205X) | | Shock Absorbers - Rear (W5) | Composite | Alloy (320103X) | Alloy (320103X) | Alloy (320107X) | | Upper Shock Absorber Joint Cup | Composite | Composite | Composite | Alloy (320502A) | | Lower Shock Absorber M5 Joint | Composite | Composite | Composite | Alloy (320503A) | | M8 Upper Wishbone Rose Joint L/R Thread | Composite | Composite | Alloy (340102A) | Alloy (340102A) | | Servo Saver Upper Arm | Composite | Composite | Composite | Alloy (380102A) & Composite | | Steering Servo Turnbuckle | Steel | Steel | Steel | Alloy (381002A) | | Brake Plate | Composite | Composite | Alloy (415302A) | Alloy (415302A) | | Lay Shaft Carrier | Composite | Alloy (415402A) | Alloy (415402A) | Alloy (415402A) | | Rear Upper Stiffener Alloy (446201A) | OPT* | OPT* | STD | STD | | Front Stiffener | Composite | Composite | Composite | Alloy (445102A) | | Rear Stiffener | Composite | Alloy (445202A) | Alloy (445202A) | Alloy (445202A) | | Upper Stiffener Alloy | OPT** | OPT** | Alloy (446101A) | Alloy (446101A) | | Diff.House-Stiffener Spacer | Composite | Composite | Alloy (460102A) | Alloy (460102A) | | Carburetor / AirFilter Venturi | Composite | Composite | Alloy (725302A) | Alloy (725302A) | | Engine Insulator Alloy G230-G290 (726002A) | OPT | OPT | OPT | STD | | Radio/Servo Tray - Hydraulic Brake Compatible (930301X) | OPT | OPT | OPT | STD | | EFRA Air Box Intake Silencer (725801X) | OPT | OPT | OPT | STD | | Brake Disc | Spring Steel | Spring Steel | Light Weight ABS (260102S) | Light Weight ABS (260102S) | | Front Wishbone Holder Set | Composite | Alloy (300203A) | Alloy (300203A) | Alloy (300203A) | | Rear Wishbone Holder Set | Composite | Alloy (300303A) | Alloy (300303A) | Alloy (300303A) | | Anti-Roll Bar Set F/R 3.5mm (360101X) | OPT | STD | STD | STD | | XL CCD Axle (935601X) | OPT | OPT | OPT | STD | | W5 Front Tower (430104A) | Alloy 5mm | Alloy 5mm | Alloy 5mm | Alloy 5mm | | W5 Rear Tower (430204A) | Alloy 5mm | Alloy 5mm | Alloy 5mm | Alloy 5mm | | RR5 Front Tower | Alloy 5mm | Alloy 8mm (430101A) | Alloy 8mm (430101A) | Alloy 8mm (430101A) | | RR5 Rear Tower | Alloy 5mm | Alloy 8mm (430201A) | Alloy 8mm (430201A) | Alloy 8mm (430201A) | | *Required for assembly: 446201A, 415402A and 415302A | | **Required for assembly: 446101A and 446301A |
|
 |

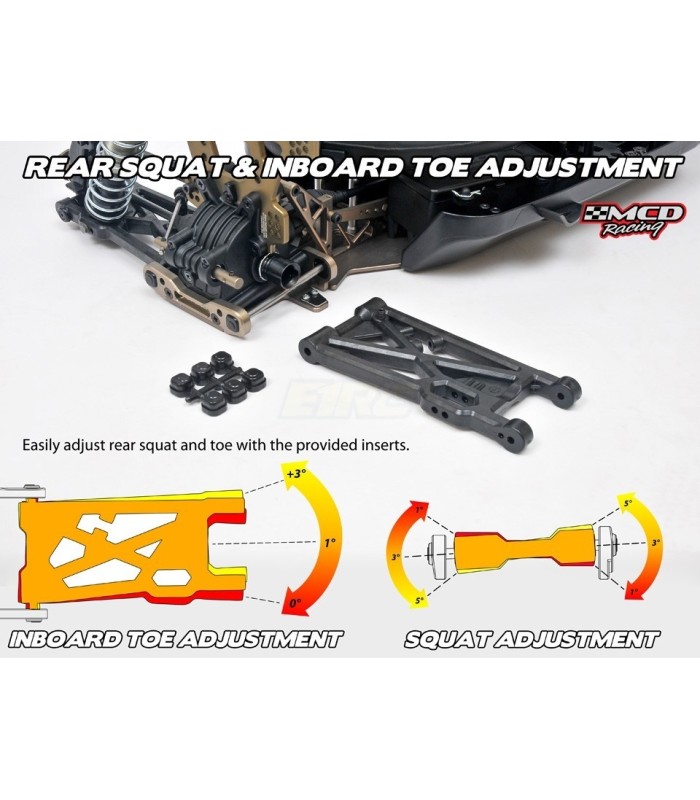

| Length | : 930 mm | | Width | : 495 mm | | Overall height | : 330 mm | | Ground clearance | : 25-85 mm | | Weight | : 14.5-14/9kg (Depending on the installed components) | | Wheelbase | : 610-625 mm (adjustable EFRA-Compatible) | | Trackwidth | : 430mm | | Chassis material | : 7075 Anodized T6 Alloy (4mm) | | Suspension | : Non-parallel non-line independent | | Caster angle | : 8°(6° - 10°(total caster) adjustable) | | Camber angle | : Adjustable | | Toe angle | : In-board and out-board adjustable | | Anti-squat | : 3°(adjustable) | | Rear-squat | : 5° | | Dive, Anti-dive | : 6°-10°(adjustable) | | Kick-up | : 8°-10°(adjustable) | | Shock absorber | : Coil-over Oil-filled Internal High Pressure Cell | | Transmission | : Full-Time 4WD 3-Diff Shaft Driven | | Gear ratio | : 9,14:1 (18 available 7,44:1 to 10,67:1) | | Tyre size | : 68 x 180 mm |
|
