Sworkz S-35-5 Nitro Buggy 1/8 Off Road

The SWORKz S35-5 is the new evolution of the renowned S35-4 EVO platform, developed for 1/8 nitro buggy competition at a professional level. Built on the same wheelbase profile that has taken SWORKz factory drivers to the podium in the most demanding competitions worldwide, the S35-5 refines its predecessor's geometry in key areas to offer higher cornering speed, more traction, and a more forgiving driving experience without losing the predictable and controllable character that defines the series. Also available in an extended chassis version +3 mm for fast high-grip tracks.

It is an unassembled kit that requires a nitro engine, exhaust, electronics, and tires to be operational. Aimed at drivers and distributors looking for maximum flexibility in vehicle configuration.

Main Features

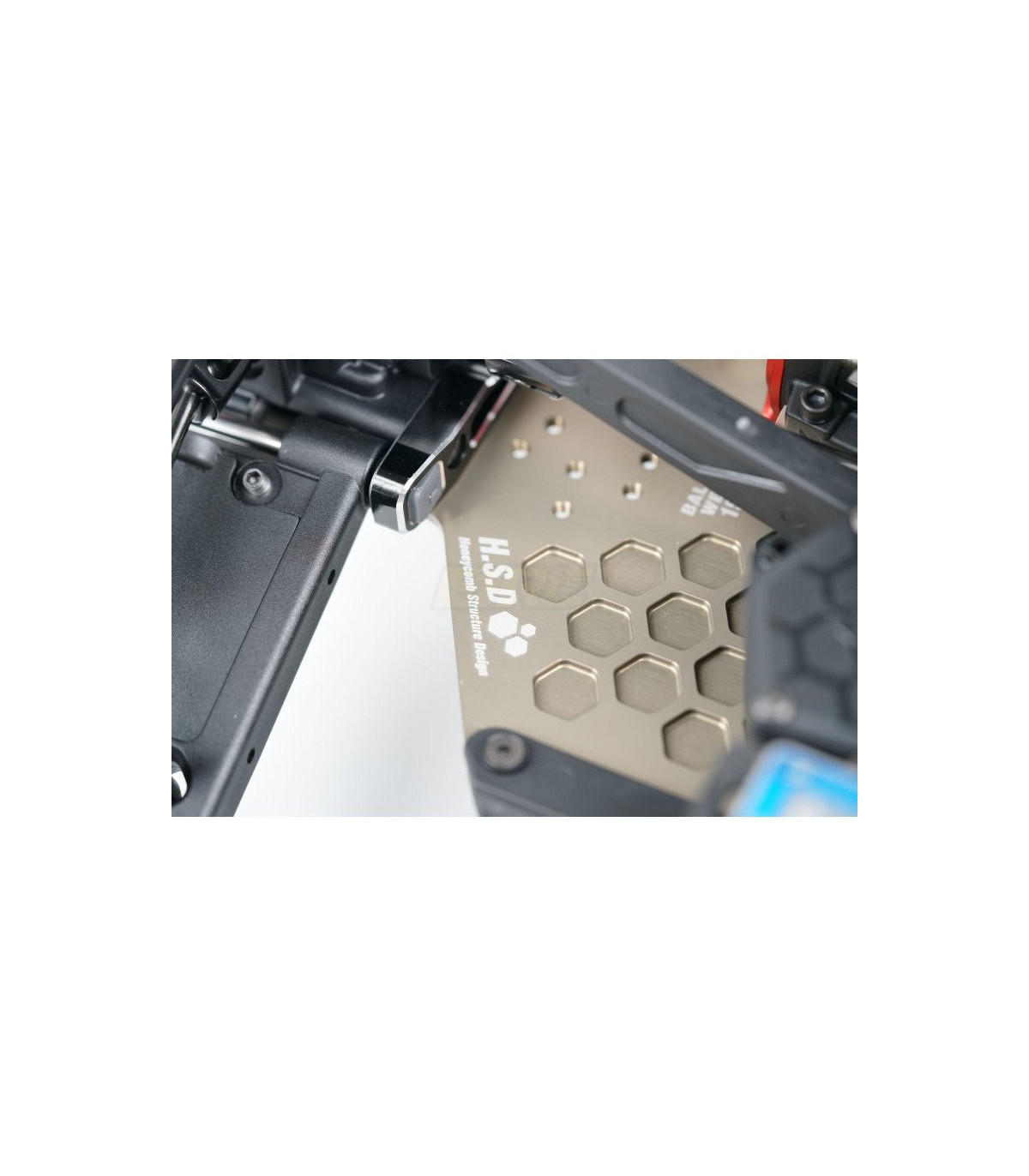

Hard-anodized and lightened T7075 aluminum chassis (New)

Identical wheelbase to the S35-4 EVO; extended chassis option +3 mm available

Short chassis design (New)

SWORKz HET differential system ? 3 differentials included

Quick-release differential gearbox (New)

Height adjustment system for differential and pinion (New)

Bearing-guided sway bar system (New)

Dual-line shock towers ? upper position (S35-4 EVO) and lower optimized for high grip (New)

New generation Samurai Competition springs (New)

Teflon-coated shock shafts and high-quality X-rings

AL7075 Ackermann steering plate (+5) included; +10 option available (New)

Servo Savor steering system

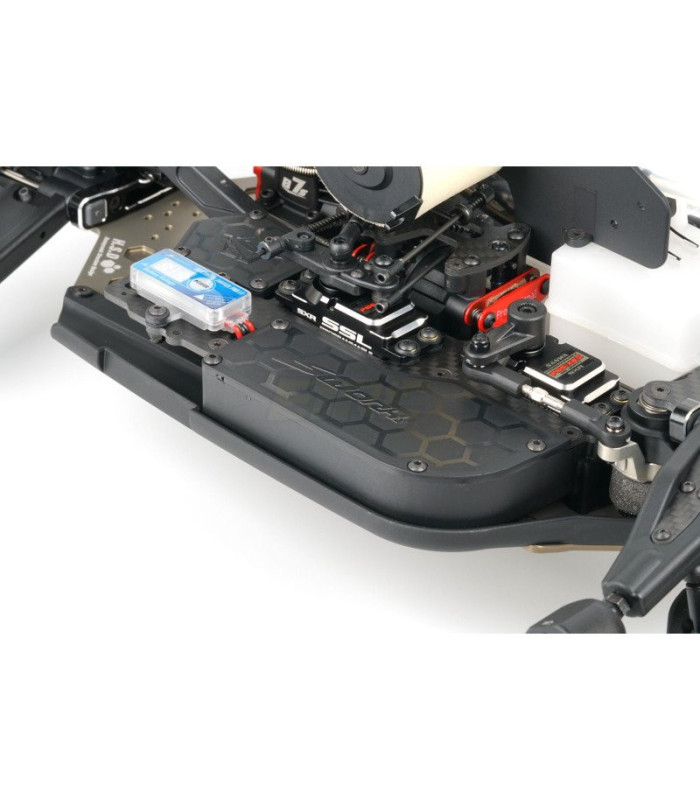

Carbon plate-style radio tray with multiple positions for receiver, switches, and transponder (New)

Narrow low front aluminum suspension plate Intensity F/F and R/F (New)

Plastic covers for front and rear lower arms (New)

Central Nitro series brake disc mount

T7075 aluminum parts; optimized composite material

Aerodynamically optimized Falcon ST-5 body included, unpainted (New)

2 front chassis braces included

Technical Specifications

Length: 510 mm

Width: 308 mm

Height: 220 mm

Ground clearance: 65 mm

Wheelbase: 325?330 mm

Track width: F: 304 mm / R: 306 mm

Transmission ratio: C: 47/13T, F/R: 43/13T

Weight: 3400 g (race condition)

Required to Complete the Vehicle (not included)

1/8 nitro engine (.21)

Exhaust

Transmitter and receiver

Steering servo

Throttle and brake servo

Wheels and tires

Glow plug

Glow igniter

Nitro fuel

Body paint
