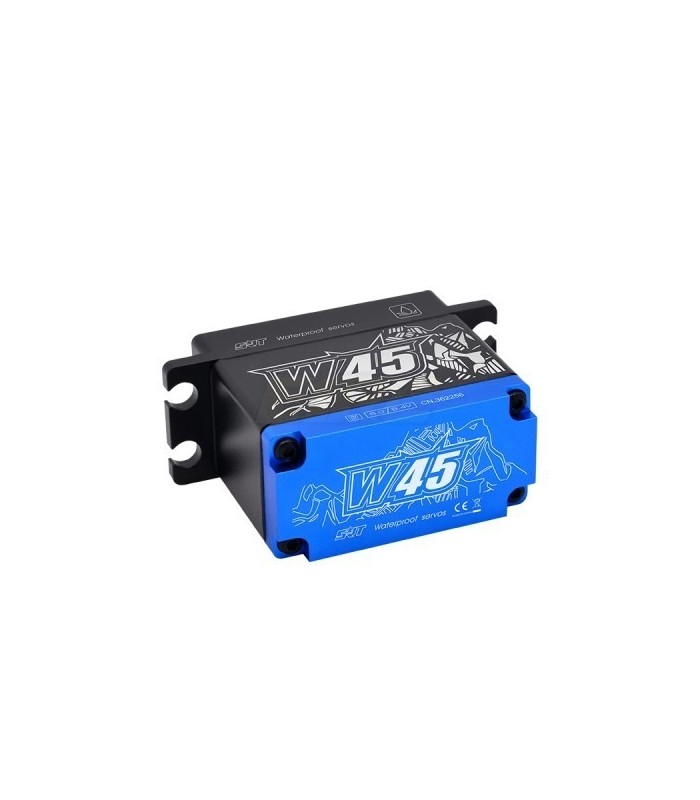

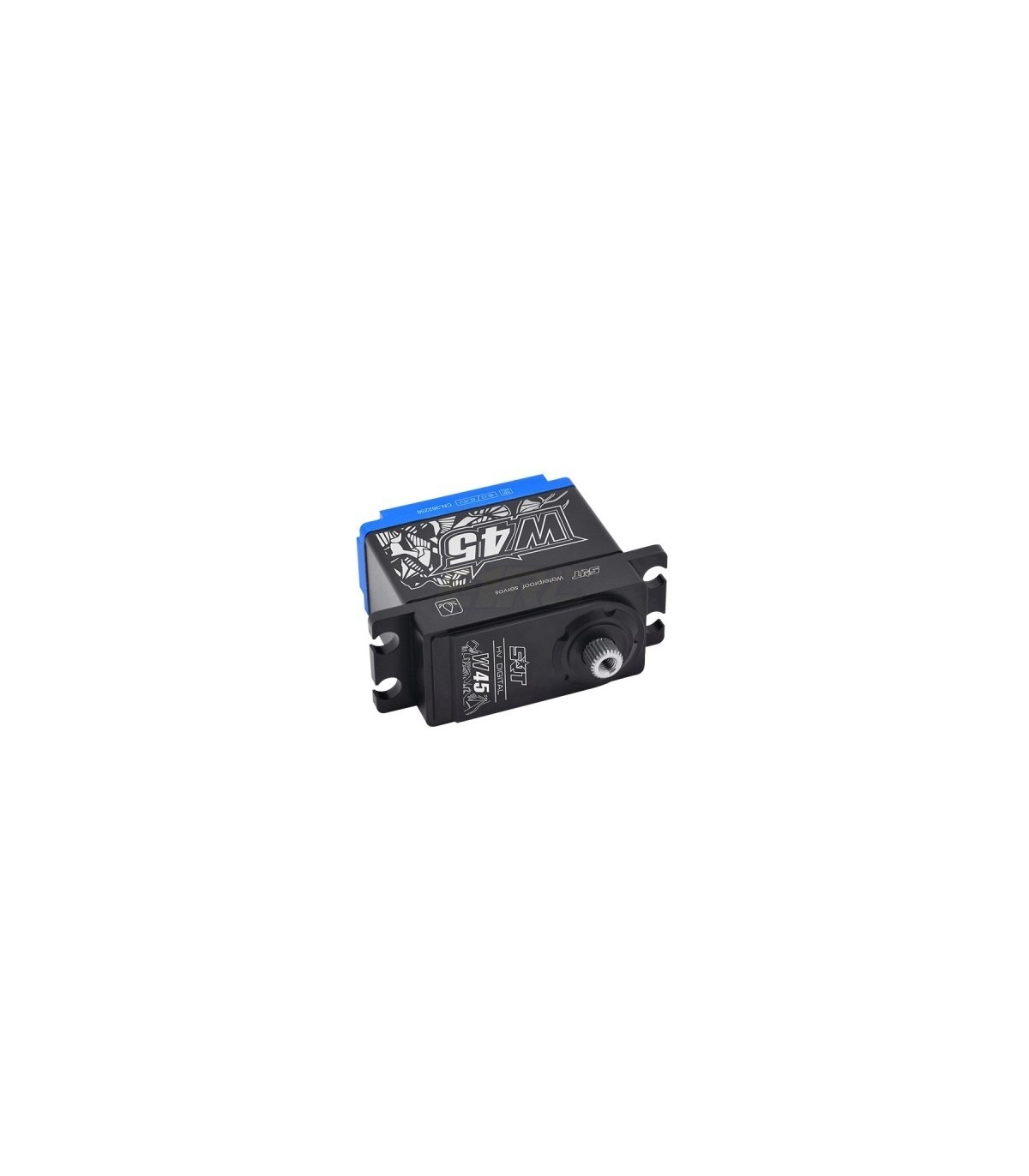

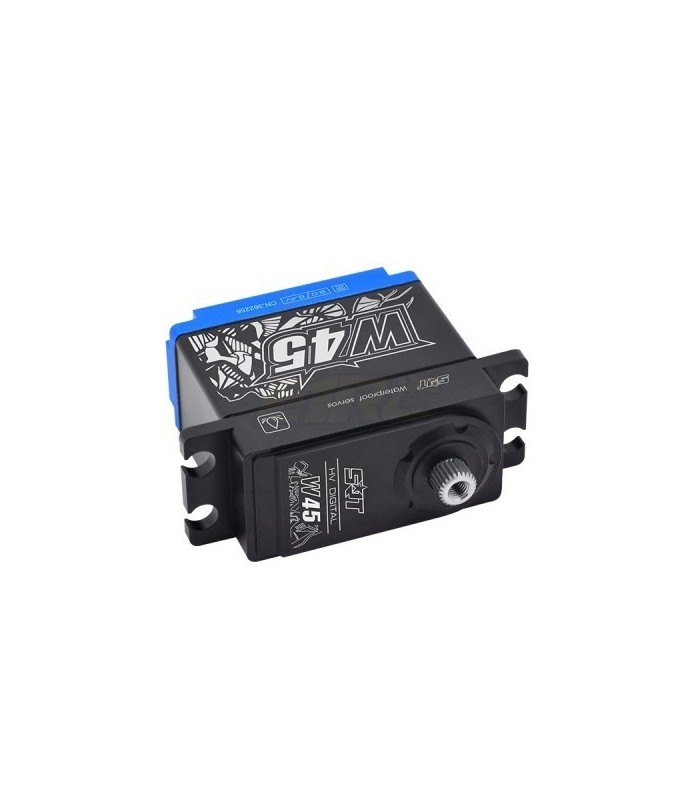

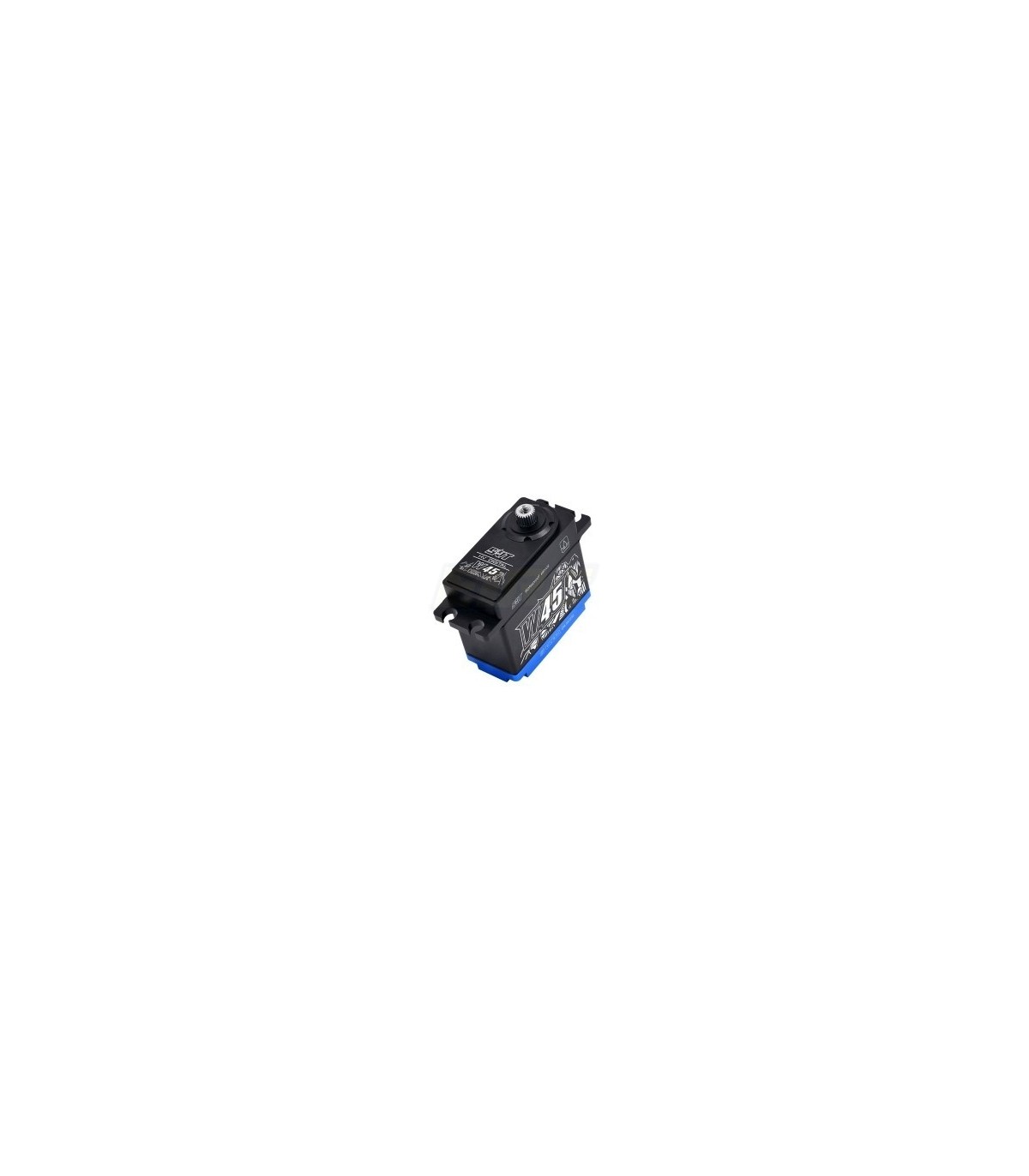

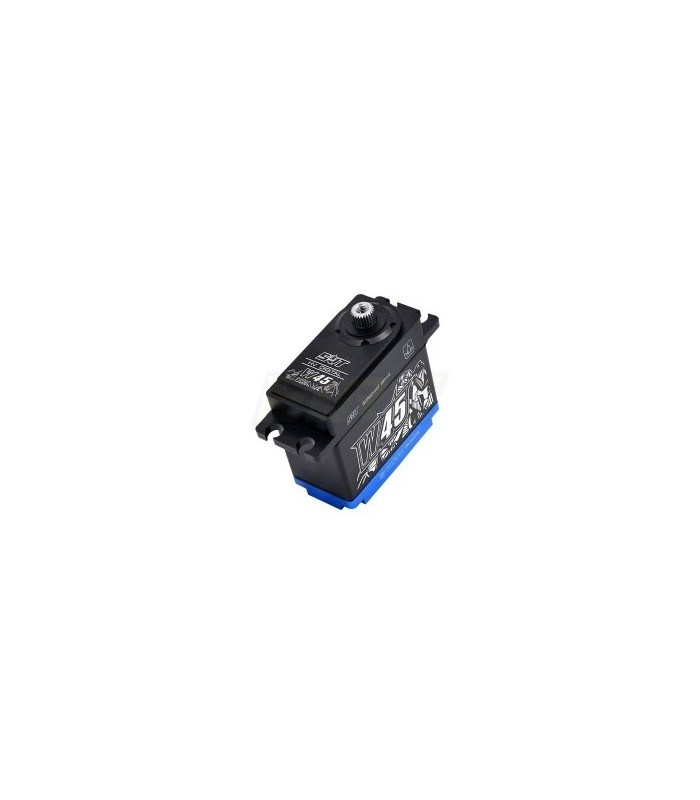

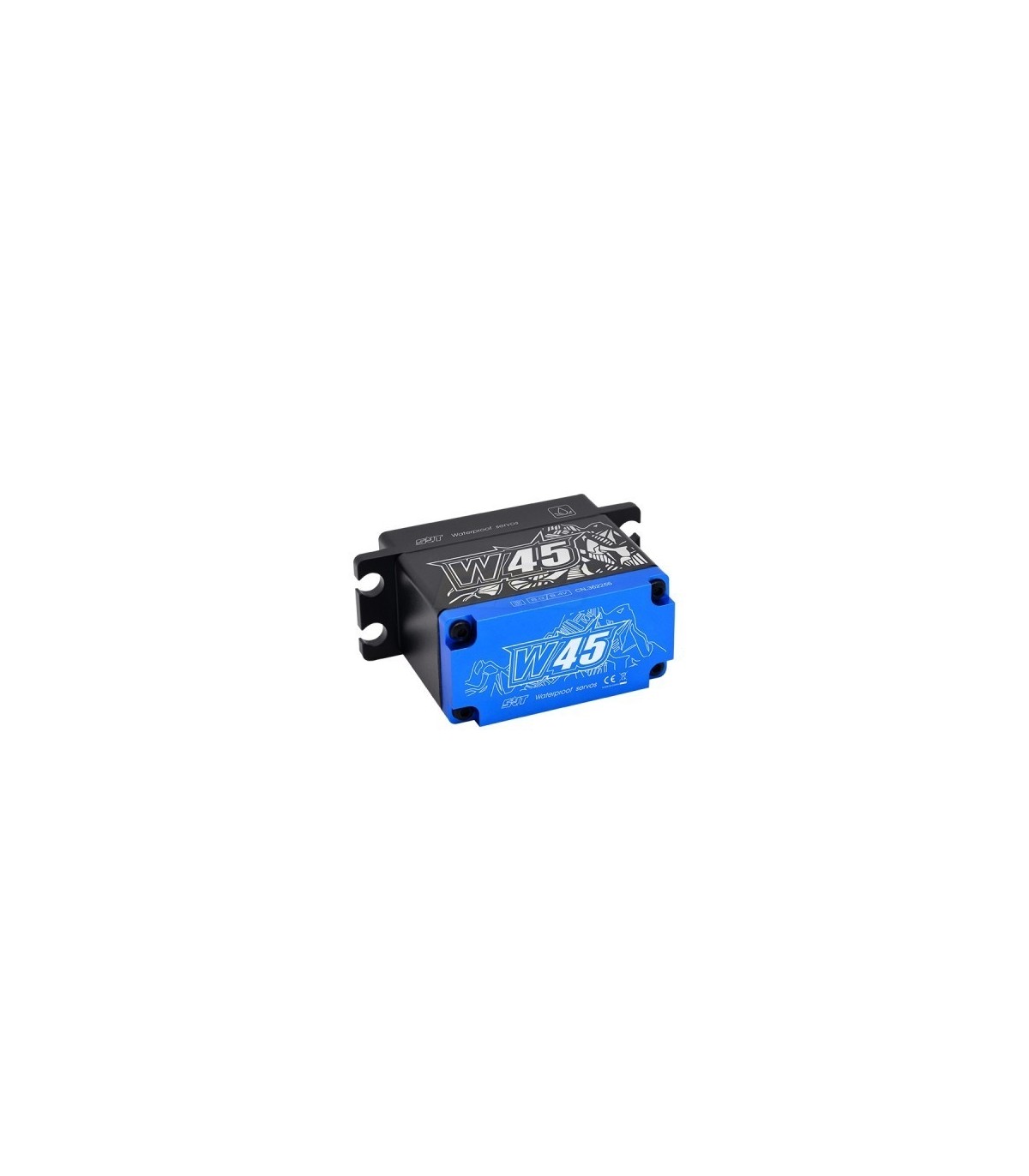

Servo 45kg 0.18S SRT HV digital con caja metalica, waterproof

The Servo SRT W45 is an HV servo with up to 45kg of torque and waterproof, ideal as a steering servo for crawlers due to its steel and titanium pinions.

 Characteristics:

? Ideal for 1/8 and 1/10 On-Road and Off-Road, crawler, etc ..

? Aluminum box

? Waterproof

? Superior precision

? NMB dual main bearings

? 25T output pinion teeth

 PRODUCT SPECIFICATIONS

Type: Digital

Bearing: Dual

Motor Type: Coreless

Gear Type: Metal

Gear Material: Titanium & Steel

Control system: pulse width control

Working frequence: 1520?s / 330hz

Operating voltage: dc6.0-8.4v

Operating temperature range: -10 to + 60 degree

Operating speed (6.0v): 0.20 sec/60 degrees at no load

Operating speed (7.4v): 0.19 sec/60 degrees at no load

Operating speed (8.4v): 0.18 sec/60 degrees at no load

Stall torque (6.0v): 34.0kg.cm (472.2 oz/in)

Stall torque (7.4v): 40.0kg.cm (555.5 oz/in)

Stall torque (8.4v): 45.0kg.cm (624.9 oz/in)

Potentiometer drive: direct drive

Dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in

Weight: 82.5g (2.91 oz)

Cconnector wire length: jr 360 mm
