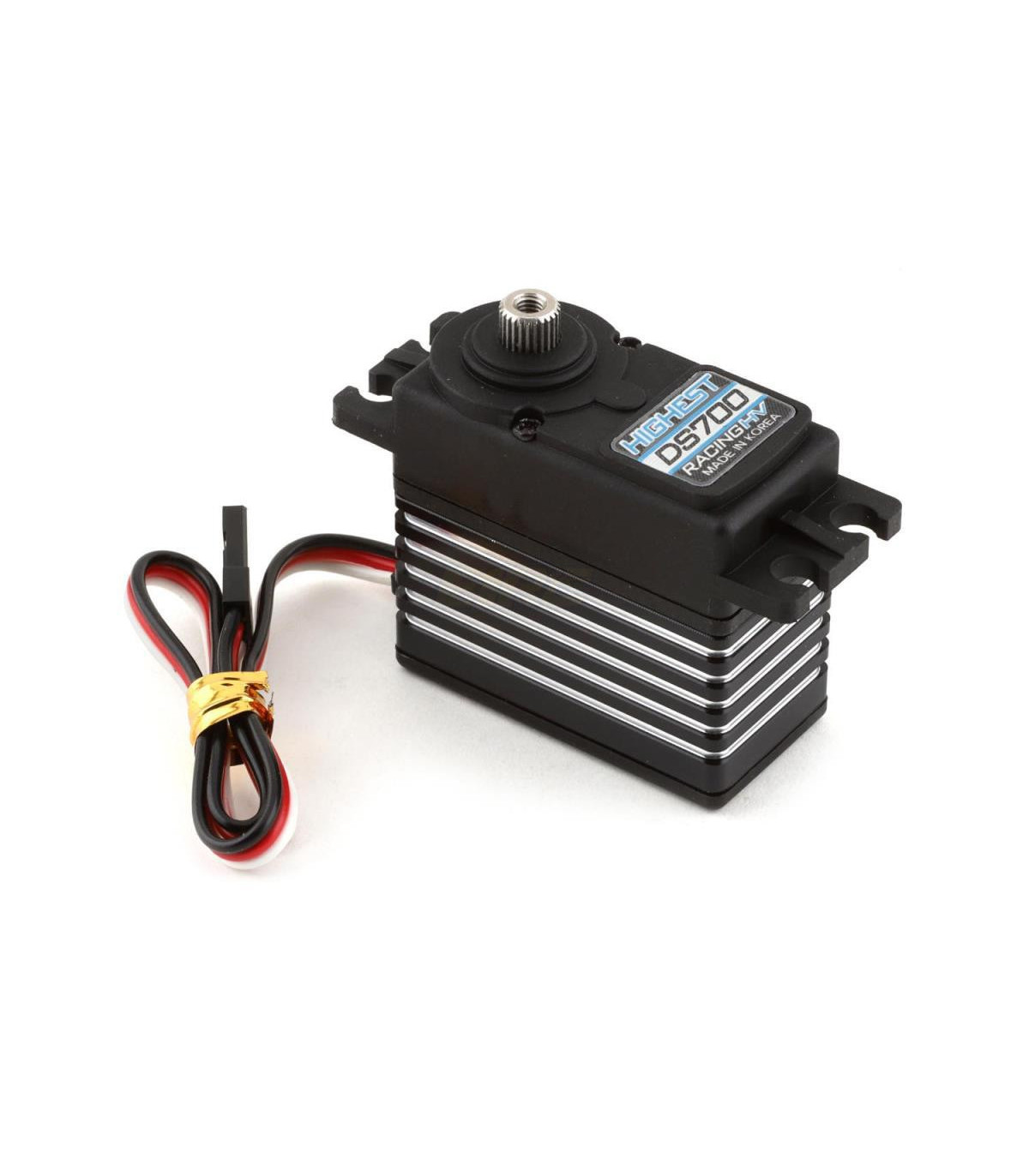

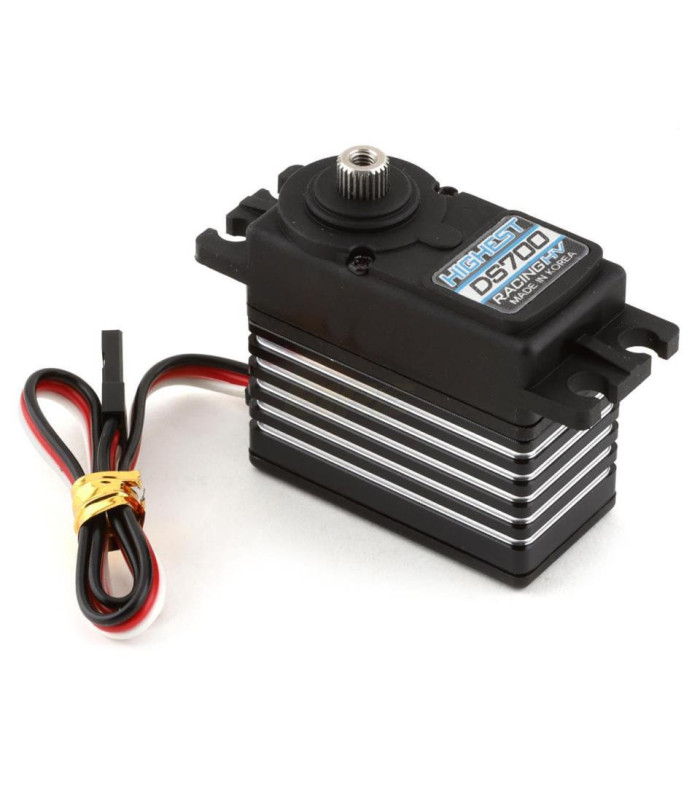

Highest DS700 Metal Gear Coreless Servo (High Volt

High-speed DS700 servo with metal gears. This servo is designed for surface and air applications. Its metal gear transmission, dual ball bearing design, and coreless motor ensure greater precision and durability. Manufactured in a standard size casing, this servo will fit perfectly into your application.

Features:

Fully metal gears

Standard size servo with aluminum center band

High voltage compatible

Coreless design

Specifications

Operating voltage: 6.0-7.4 V DC

Speed:

6.0 V: 0.08 s/60°

7.4 V: 0.06 s/60°

Torque:

6.0 V: 9.9 kg-cm (137.48 oz-in)

7.4 V: 11.1 kg-cm (154.14 oz-in)

Operating temperature: -10-60 °C (14-140 °F)

Dimensions: 39.5 x 20.0 x 38.6 mm (1.55 x 0.78 x 1.51 inches)

Weight: 61.3 g (2.16 oz)
