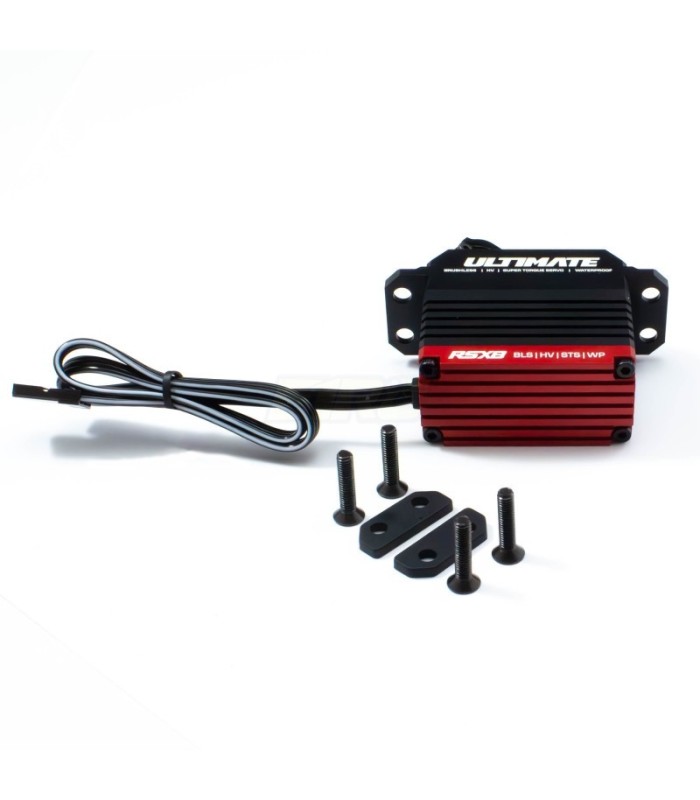

Servo ultimate RSX8 37kg 0.075S + horn ur1815-25
Brand:
This is the Servo RSX8 Brushless with 37 Kg and 0.075 s with Gas/Brake Servo Horn 25T Non-threaded UR1815-25 from Ultimate Racing for 1/8 cars that meets all the durability, performance, and quality requirements necessary for the highest level of competition. It serves both for steering and gas/brake.
An anodized black aluminum top case and a red bottom cover of the same material give this servo a distinctive look. The 5 lines on the top case and the 7 on the bottom cover provide efficient heat dissipation and help reduce weight.
In this servo, unlike others, the location of the sealing O-ring has been changed, placing it inside the screws to prevent moisture from entering through them.
This servo does not require washers for installation. The servo mounts have countersinks for using conical screws and mounting it without washers. It includes 4 M3x14mm conical screws.
It incorporates two flat rubber pads with the exact shape of the servo to mount between the servo and the tray, acting both as a silent block and a riser to ensure the bottom of the servo does not touch the chassis. These rubbers are much better than conventional ones because they reduce vibrations, yet they do not allow the servo to move or deform when tightened.
Includes a cylindrical head M3 screw to mount the servo arm. This screw is ideal for the various servo arms from Ultimate Racing.
The servo packaging is an EVA box with the Ultimate Racing logo, reusable for other purposes.
Specifications:
Type: Digital
Bearing: Double
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium and Steel
Control System: Pulse width control
Operating Frequency: 1520µs / 330hz
Operating Voltage: DC 6.0-8.4V
Operating Temperature Range: -10 to +60 degrees
Operating Speed (6.0V): 0.10 sec/60 degrees no load
Operating Speed (7.4V): 0.08 sec/60 degrees no load
Operating Speed (8.4V): 0.075 sec/60 degrees no load
Locking Torque (6.0V): 31.0 kg.cm (291.6 oz/in)
Locking Torque (7.4V): 35.0 kg.cm (347.1 oz/in)
Locking Torque (8.4V): 37.0 kg.cm (374.9 oz/in)
Potentiometer Drive: Direct drive
Dimensions: 40x20x38.0 mm / 1.57x0.79x1.49 in
Weight: 81 gr
Connector Cable Length: JR 300 mm
