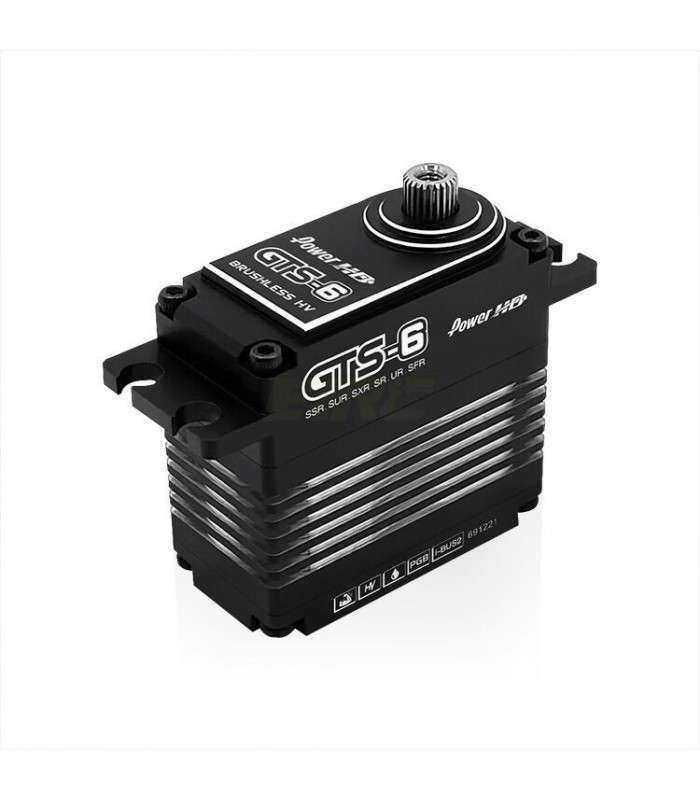

Servo Power HD GTS-6 HV Brushless

The GTS servo line from Power HD was introduced in June 2023.

These servos are the logical evolution of Power HD's proven products.

The new models GTS-3, GTS-5, GTS-6, and GTS-7 are compatible with the i-BUS2 protocol from Flysky, which both brands have jointly developed.

The four-pole brushless motor provides faster response, greater heat resistance, and a long lifespan.

The GTS series is compatible with the Power HD PG-CB63 programming box.

The model numbers indicate the actuation force of each servo, with a range that includes 30, 50, 60, and 70 kg.

The servos can be used with any 2.4GHz remote control (not just FlySky).

INFO: The receiver cable for this servo is especially long (approx. 29cm)

Technical specifications for the Power HD GTS-6 servo:

Torque (6.0V): 48.0 kg-cm / (722.1 oz/in)

Torque (7.4V): 56.0 kg-cm / (916.6 oz/in)

Torque (8.4V): 60.0 kg-cm / (972.1 oz/in)

Speed: 0.10 s (6.0 V) ©¦ 0.08 s (7.4 V)

Speed: 0.07 s (8.4V)

Operating voltage: 6.0 ~ 8.4 volts DC

Weight: 78 g (2.75 oz)

Bearing type: Ball bearing x 2

Motor type: Brushless motor

Gear type: 7075+Steel

Operating temperature: -20°~60°

Working frequency: 1520hz / 1666hz

Size: 40.0 x 20.0 x 38.3 mm (1.57 x 0.79 x 1.51 in)

Maximum current: 7.5A
