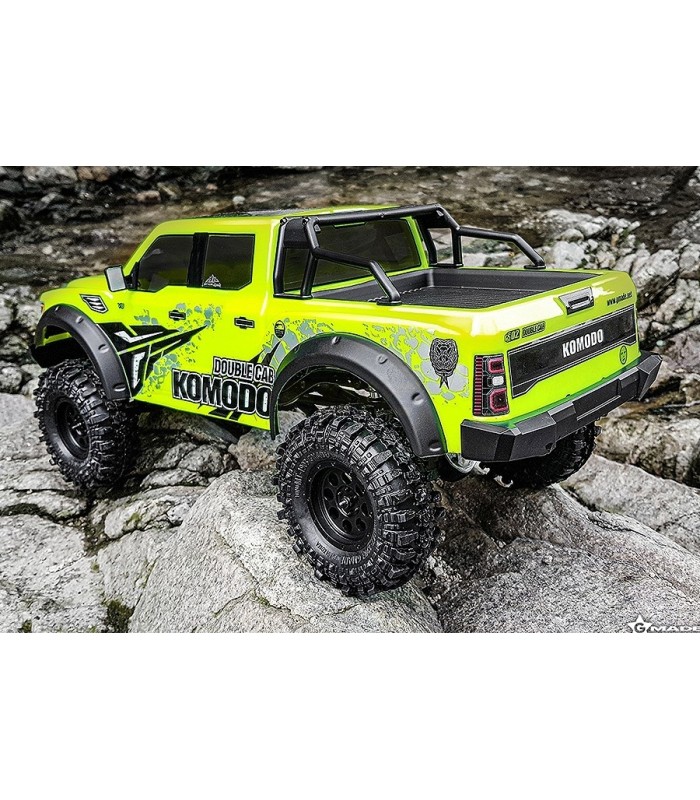

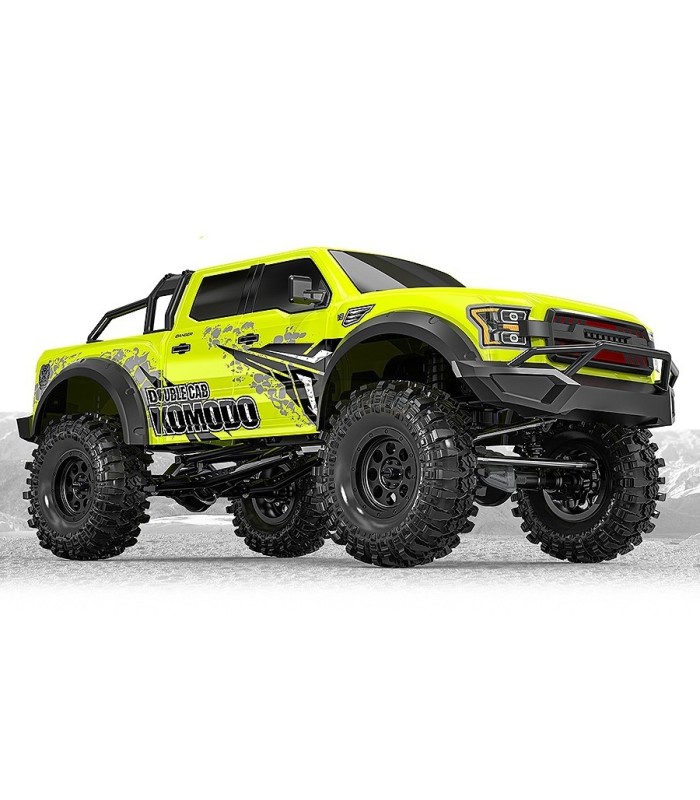

GS02 KOMODO DOUBLE CAB TS KIT GMADE 1/10
Marco
Estructura de escalera de acero
The GS02 frame is designed to resemble a real car frame, made of high-strength steel with C-channel side rails and cross members bolted with hex wrenches, ensuring resistance to twisting and warping. All steel components are coated in black to prevent rust.
C-Channel Side Rail
Adjustable Wheelbase
The GS02 chassis allows for three easy adjustments of the wheelbase conversion kit to accommodate any 300, 313, and 324mm custom bodies.
(Optional link kits sold separately).
Front Weight Balance
The weight balance of the Komodo double cab is designed to be placed towards the front of the car. This increases traction on the front wheels, providing better grip when crawling over steep rocks and improved performance when climbing hills. This design also helps reduce the risk of the vehicle rolling over during climbs.
Sistema de servomotor montado en el chasis con barra Panhard
The Komodo double cab features a steering system with a steering servo located on the frame, just like a real 1:1 car. This design aims to minimize bump steer during front wheel suspension movements, enhancing the steering performance of the vehicle.
Además, la barra Panhard está diseñada para evitar interferencias con las piezas cercanas, de modo que la suspensión delantera y los amortiguadores puedan moverse libremente sin ninguna pérdida.
Battery Tray
La batería se puede reemplazar fácilmente y puede alojar hasta 7,600 mAh de baterías Lipo de 2 celdas o 5,000 mAh de baterías Lipo de 3 celdas. The battery can be easily replaced and can accommodate up to 7,600mAh 2-cell Lipo batteries or 5,000mAh 3-cell Lipo batteries.
(7,600mAh 2-cell LiPo or 5,000mAh 3-cell LiPo).
Caja de electrónica a prueba de polvo
It protects electronic equipment such as winch controllers and BEC, commonly used for scale trucks, from foreign substances.
Drive Train
Drivelines
Las líneas de transmisión de los ejes delantero y trasero están dispuestas en línea recta para reducir el estrés de fatiga del eje universal y disminuir la pérdida de potencia de conducción al proporcionar líneas de conducción eficientes. The drivelines of the front and rear axles are arranged in a straight line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.
Reduce torque twist in the transmission.
The TTR transmission is designed to maintain a stable position while evenly distributing the power transmitted to the axle without pulling.
Las flechas universales delanteras y traseras basadas en el transmisor giran en sentido horario y antihorario, lo que compensa las fuerzas que actúan sobre las fuerzas rotacionales opuestas debido a la acción (par) y reacción (par inverso); gracias a esto, el vehículo puede funcionar en condiciones superestables.
Hardened Carbon Steel Universal Joints
The steel joints' front and rear universal shafts provide a smooth and stable power transfer. The kit also includes spare parts that allow you to adjust the length of the universal shaft.
Easy Adjust Motor Mount
You can easily replace and install the motor pinion gear to change the gear ratio.
GA44 refers to the type of axle used in some vehicles. It is a specific model of axle produced by GKN Automotive, a company that specializes in driveline systems. The GA44 axle is known for its durability and strength, making it a popular choice for off-road vehicles and trucks.
The GA44 axle is designed with the hardcore rockcrawler in mind.
Axles are made of high-strength materials, and when a 4-link suspension is added, the vehicle will look and perform off-road as realistically as a 1:1 vehicle.
El eje GA44 tiene un chasis resistente de una sola pieza. El ángulo de la tapa del diferencial está diseñado para reducir el riesgo de daños por impacto frontal y, por lo tanto, es muy adecuado para la conducción todoterreno.
Suspension
SD Scaler Shock Absorber
SD Scaler Shock is a coil-over style oil shock absorber optimized for scale trucks.
The oil inside the shock absorber minimizes splashing when the vehicle is driven, and provides a high-durability aluminum shock body. 3.5mm heavy duty shock shafts have been added, these will help you drive on rough surfaces.
Los principiantes pueden ensamblar fácilmente este amortiguador y cambiar las configuraciones, y la tuerca ajustable facilita ajustar la altura de manejo para que puedas cambiar rápidamente la configuración de tu auto incluso cuando las condiciones de manejo cambian.
Rueda y llanta
Exterior
Komodo Double Cab Lexan Body
The Komodo double cab body is made of metal. 1.5mm The thick, high-quality Lexan body is designed on a pickup truck platform, featuring strong and stylish detailing. It includes a grill, light buckets, side mirrors, wiper grills, bumpers, and roll bars for off-road adventure concepts. These additions enhance the body detail, giving you the ability to customize the appearance of a real off-road truck.
The accessory parts are made of high-strength plastic, making them extremely durable upon impact. They also come with decals that feature realistic details.
*Included body is clean and needs to be painted*
Características
PLEASE NOTE: This vehicle is sold in kit format and requires the following for completion: Radio control system, motor, ESC, servo, 7.2v battery, charger, and paint to finish the body.
