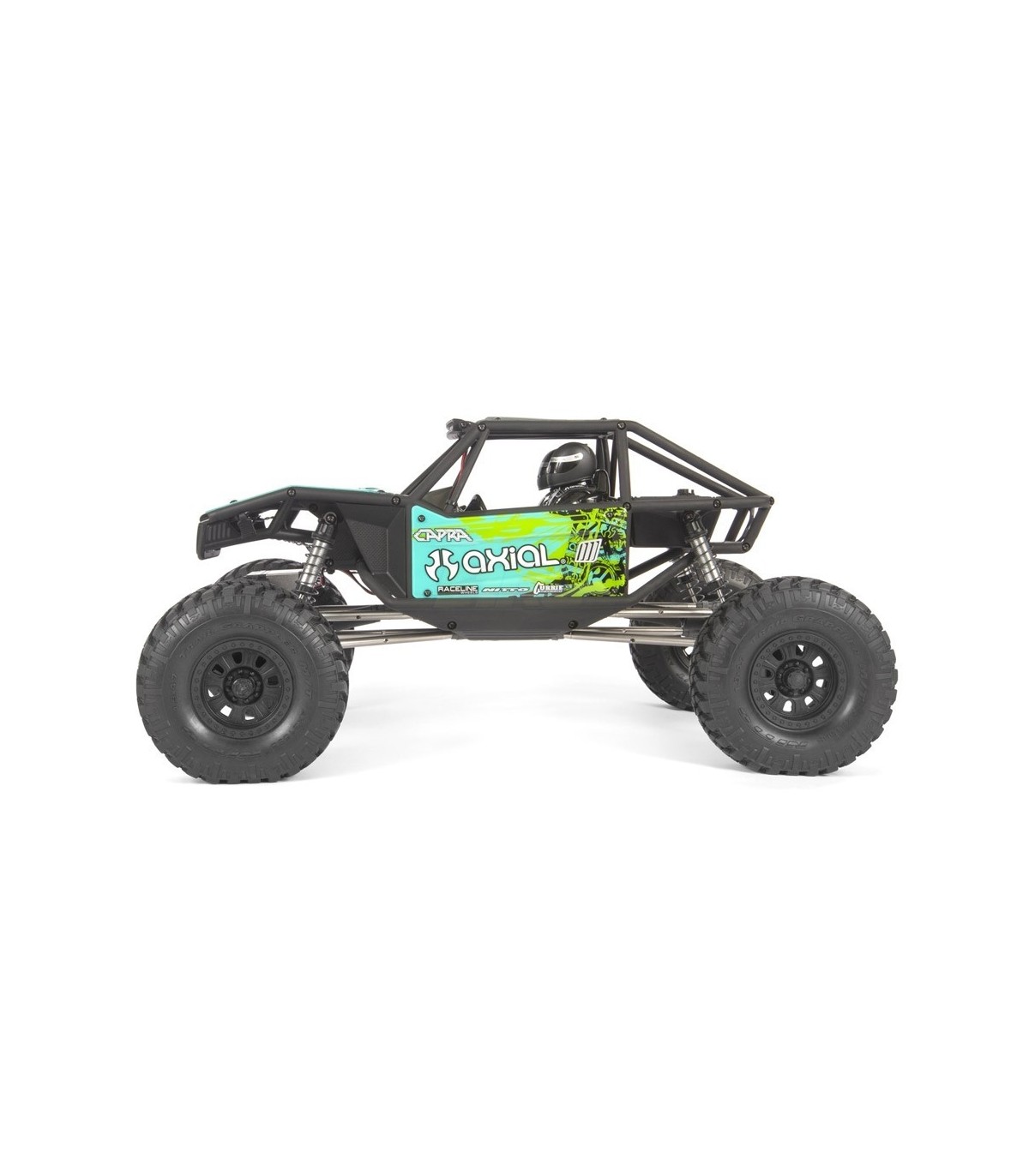

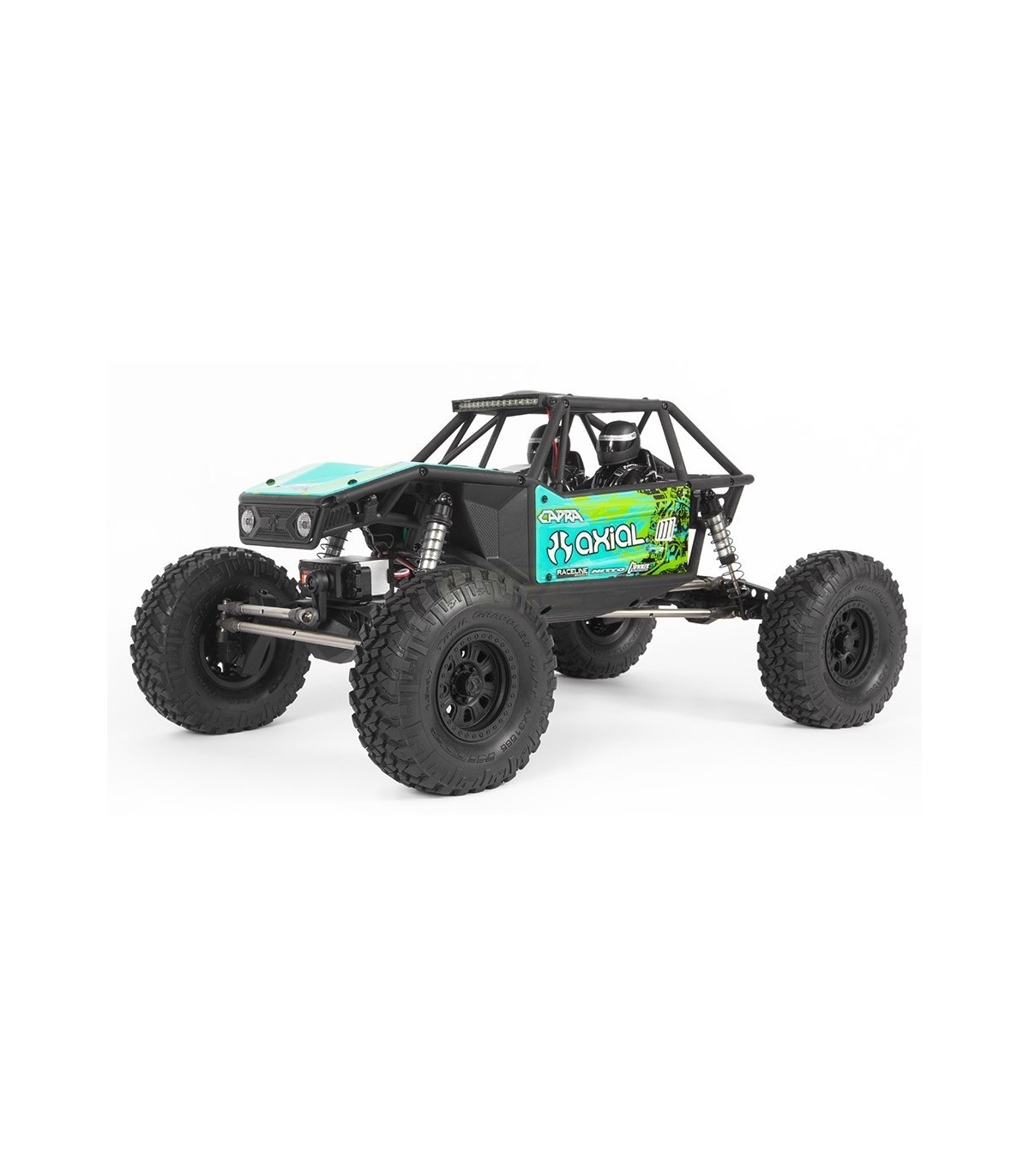

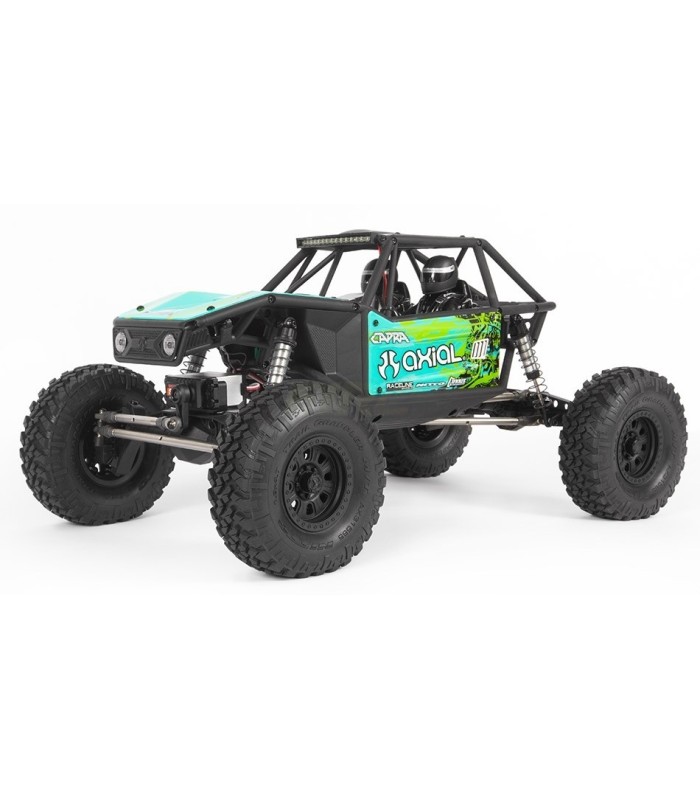

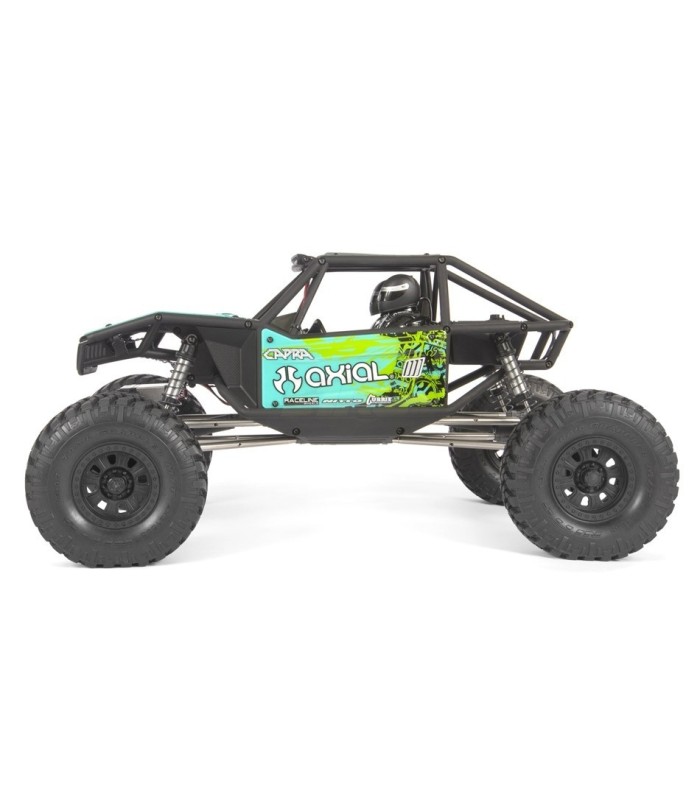

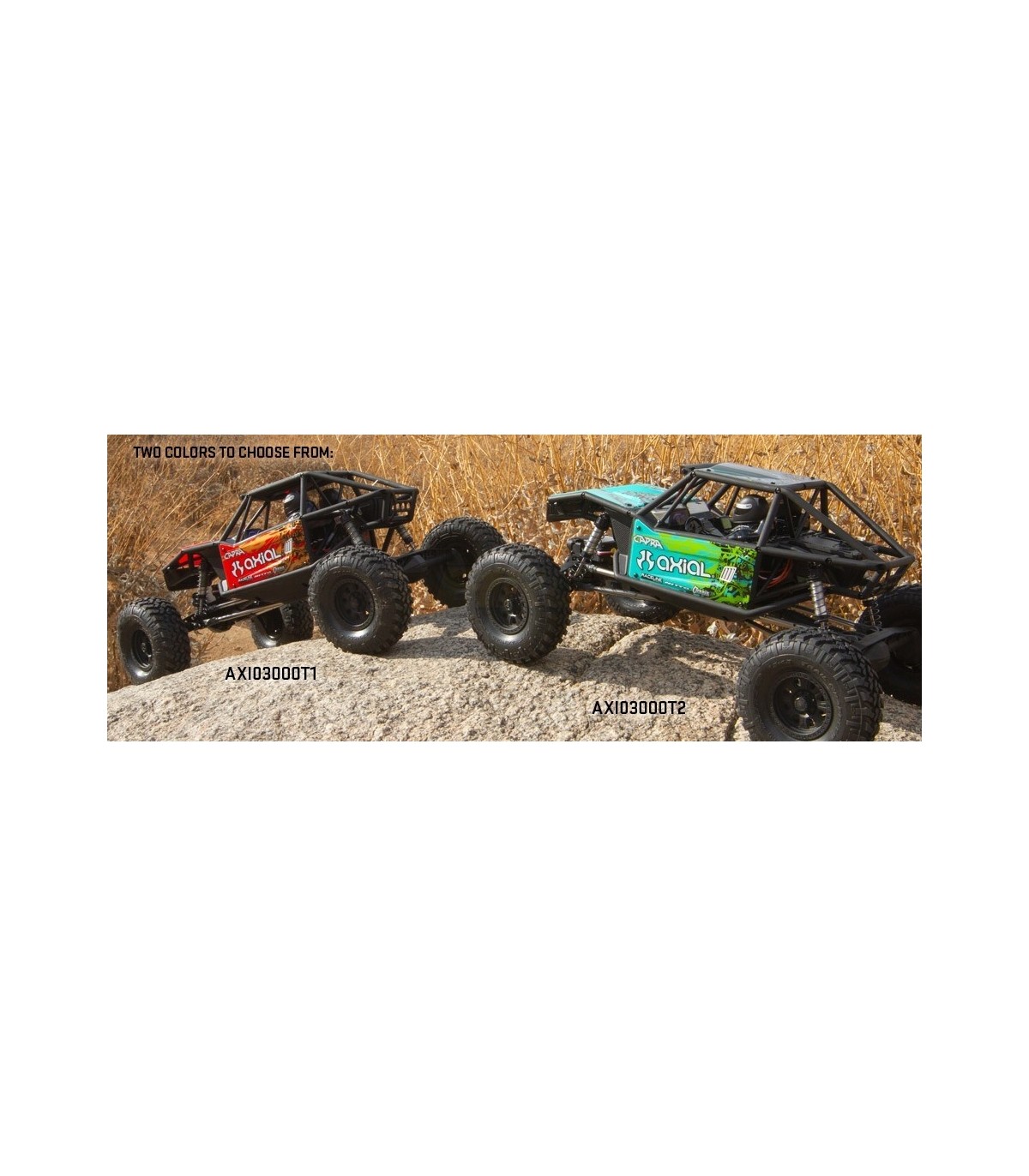

1/10 Capra 1.9 Unlimited 4WD Trail Buggy Brushed RTR, Green
What's in the Box?
- (1) Axial® Capra™ 1.9 Unlimited Trail Buggy 4WD RTR with:
- (1) Spektrum™ STX3 2.4GHz 3-Channel Radio System
- (1) Dynamite® AE-5L Brushed ESC
- (1) 540-Size 35T Brushed Motor
- (1) Product Manual
Needed to Complete
- Vehicle Battery and charger
- Delivery in 24–72h.
- 100% Secure Payment
Características
- La transmisión con función DIG permite un radio de giro más ajustado al bloquear el eje trasero para que solo la potencia se envíe a las ruedas delanteras. Translation: The transmission with DIG function allows for a tighter turning radius by locking the rear axle so that power is only sent to the front wheels.
- Currie F9 Portal Axles increase ground clearance at the differential pumpkin for optimal crawling performance.
- Includes all-metal gears, from the central transmission to the lockers and portal axles.
- The design of a tube chassis provides the best clearance along with a realistic scale appearance.
- All pivot points are located on stainless steel balls to create a strong and long-lasting suspension point.
- It includes Nitto Trail Grapplers 1.9 Monster tires mounted on injection-molded, 3-piece, licensed Raceline beadlock wheels.
- Amortiguadores ajustables rellenos de aceite con cuerpos de amortiguador roscados y anodizados duro, y un solo resorte de bobina.
- Las flechas universales delanteras totalmente metálicas proporcionan un movimiento suave y un ángulo de dirección de 45 grados para una transmisión eficiente y de alto rendimiento.
- Durable, machined aluminum universal.
- A 540-size, 35T brushed motor with enlarged cooling ports provides a balanced combination of speed and precision for technical crawling.
- The Spektrum? STX3 3-channel, 2.4GHz radio system and receiver can operate the DIG feature as well as other functions.
- El servo montado en el eje mejora el control de la dirección en plena articulación.
- La geometría de suspensión finamente ajustada ofrece las mejores capacidades para escalar.
An overview is a brief description or summary of a topic, providing a general idea or understanding of it.

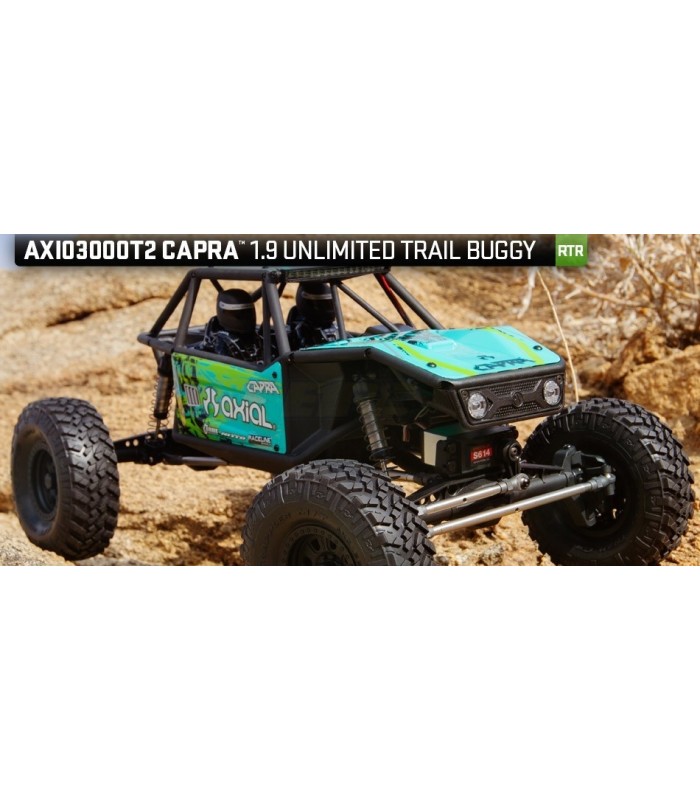

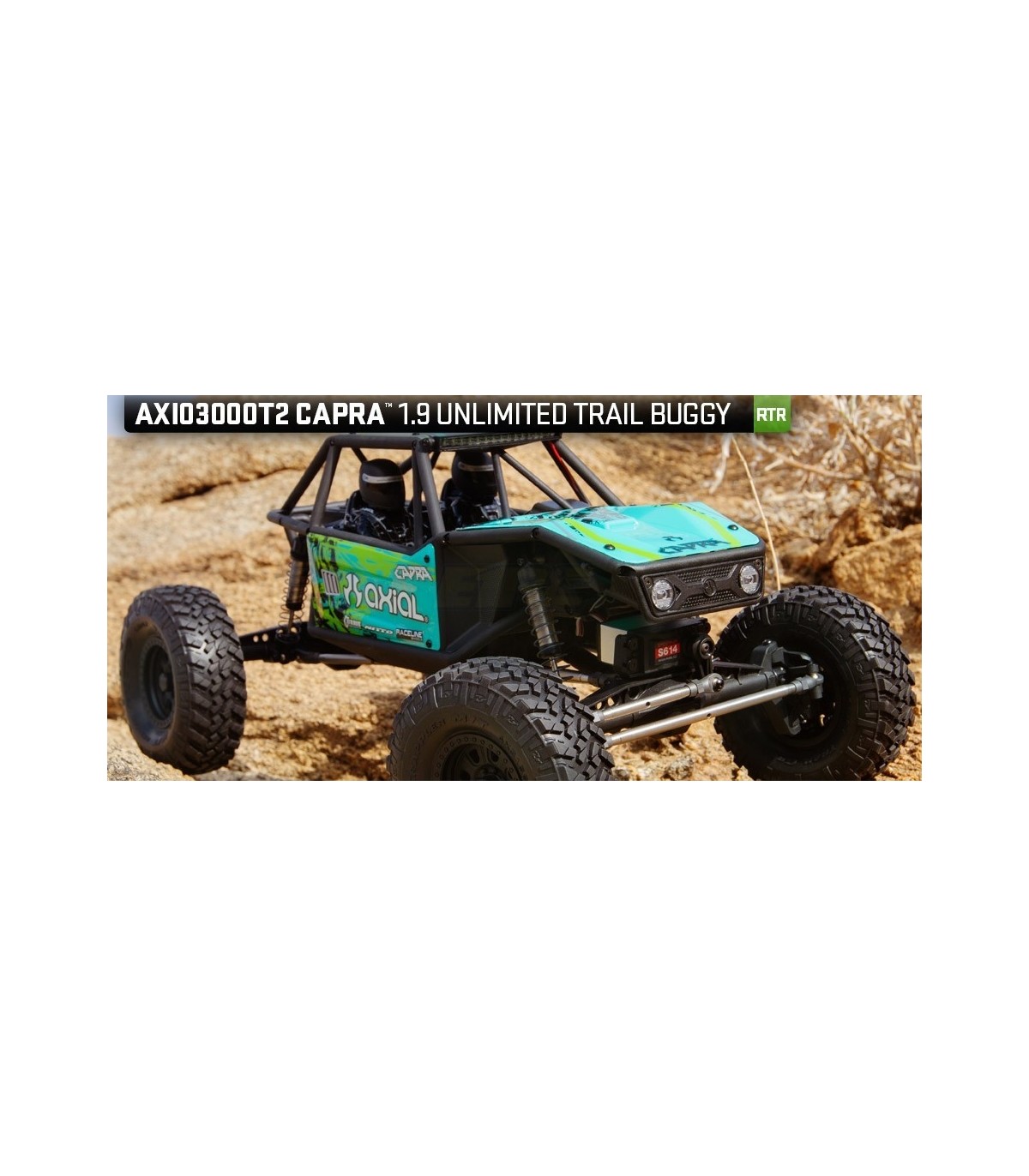

The listo para usar AxialThe Capra? 1.9 Unlimited Trail Buggy is a brand-new design that will be appreciated by any RC enthusiast looking for cutting-edge crawling experiences. It features Currie F9 Portal Axles that offer increased ground clearance at the differential pumpkin for optimal crawling performance. Equipped with the Spektrum? STX3 3-channel transmitter and DIG transmission, you can easily switch between 4WD and FWD on the go, allowing you to lock the rear axle for tighter turning when needed. The Capra showcases a realistic tube chassis design and boasts metal gears throughout, including in the center transmission, lockers, and portal axles. It comes with Nitto Trail Grappler 1.9 tires mounted on licensed Raceline 3-piece molded beadlock wheels for an authentic look. If you're seeking pioneering performance in an RC trail buggy that's factory-assembled for ease, the Capra 1.9 Unlimited RTR is the ideal choice. Simply add batteries and start crawling!

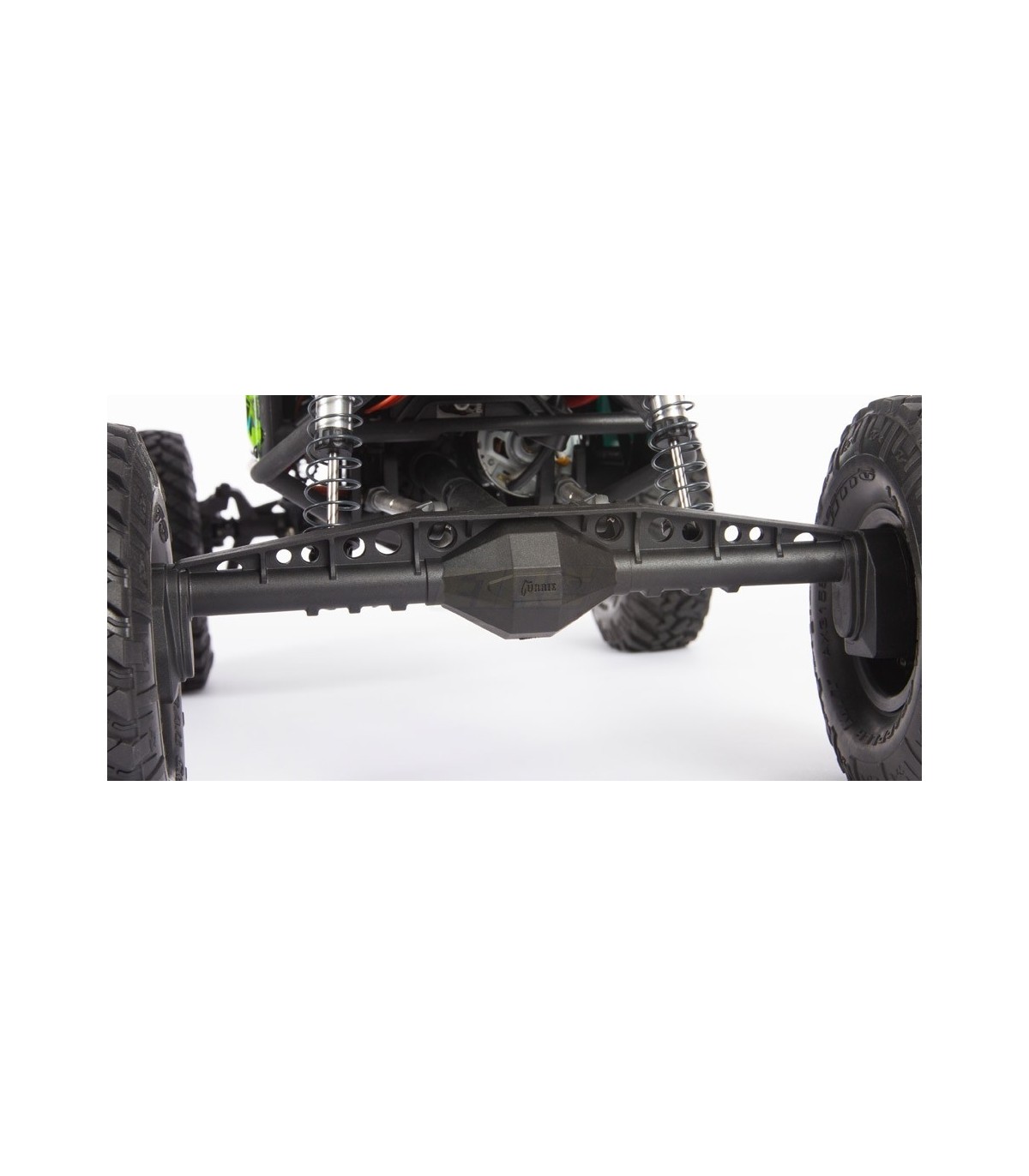

CURRIE F9 PORTAL AXLES
The Currie F9 Portal Axles provide significantly more ground clearance at the differential pumpkin and feature an impressive 7.39:1 gear ratio. They are completely driven by ball bearings and have metal gears throughout for durability.
HI-PINION GEARS
Los engranajes de anillo y piñón son de acero maquinado, incluyendo el bloqueo. El diseño utiliza un diseño de seis pernos para mayor durabilidad. The ring and pinion gears are machined steel, including the locker. The design utilizes a six bolt design for durability.
I'm sorry, but "DIG TRANSMISSION" does not have a clear meaning in Spanish. Could you please provide more context or clarify the phrase so I can assist you better?
The transmission, which has been specifically designed from the ground up, includes a "Dig" function. With the new STX3 transmitter, users can "switch" between 4WD and locking the rear axle while powering with front drive only, enabling tighter turning radius on rocky terrain. The transmission is equipped with a complete set of ball bearings and all-metal internal gears for enhanced strength and durability. Micro Dig Servo SPMSSX107 is included!
UNIVERSAL AXLE SET
Las juntas universales de los ejes permiten hasta 45 grados de dirección y proporcionan una acción más suave para un tren motriz más eficiente y de mejor rendimiento.
- Up to 45 degrees of steering
- Smooth operation for an efficient drivetrain
- Small yet sturdy design
- Hardened steel construction
WB8 HD WILDBOAR? DRIVESHAFTS
WB8 HD Wildboar? front and rear driveshafts have a larger diameter cross pin (2x11mm) and an M4 Screw Shaft (2mm hex drive) for increased strength. A center splined slider moves between each end and includes additional material to minimize flex and fatigue.
6MM STAINLESS STEEL LINKS
Fuertes eslabones de acero inoxidable de 6 mm con extremos de varilla plástica de alta calidad para mayor durabilidad. Todos los eslabones son de metal, incluido el de la dirección.
BOLAS DE PIVOTE DE ACERO INOXIDABLE
All pivot points are located on stainless steel balls that offer a robust and long-lasting suspension point.
PROTECTOR PLATE WITH RAISED SIDES
The Capra has a small skidplate footprint with boat sides that help it maneuver and slide over rough and challenging obstacles.
STAINLESS STEEL STEERING LINKS
Las barras de dirección también están hechas de acero inoxidable de 6 mm, lo que ofrece dirección precisa y durabilidad. The steering links are also made from 6mm stainless steel, offering precise steering and durability.
LARGE BORE ALUMINUM SHOCKS
The oil-filled shocks are a completely new design featuring hard-anodized, threaded shock bodies and a single coilover spring. Their larger bore size allows for increased fluid volume, resulting in improved performance. A bleed screw is included to help remove air from the shock during assembly, ensuring greater consistency. The shocks are also adjustable, allowing you to fine-tune the damping rate for optimal performance.
- Muelles incluidos:
- AXI233006 Spring 13x70mm 1.72lbs/in Red (2) Soft
- AXI233008 Spring 13x70mm 2.4lbs/in Green (2) Firm
SUSPENSIÓN DE 4 ENLACES
Precise suspension geometry with various mounting options for the upper link mounts to optimize crawling performance.
NITTO TRAIL GRAPPLER TIRES
Obtain a secure hold on dirt, rocks, and any other off-road terrain with the S30 compound Nitto Trail Grappler 1.9 tires.
3-piece beadlock wheels
For a striking appearance and impressive trail performance, Axial® has equipped the Capra? with 3-piece licensed Raceline beadlock wheels.
REALISTIC INTERIOR
Realistic scale details include: polycarbonate interior tray with molded driver figures, full color pre-cut decals with simulated carbon fiber panels, mock GPS navigation gauges and switches, two black styrene helmets with visor decals, and more!
PARRILLA Y FAROS PRINCIPALES
The front grille is made of molded plastic and has two clear plastic headlight lenses with light buckets, each containing a white LED light. Behind the grille, under the hood, there are two hood mounts with clips. Remove the clips to lift the hood and access the battery tray.
HOOD RELEASE
Remove the hidden clips located underneath the tube frame to lift the hood and access the battery tray.
SERVO HORN WITH METAL INSERT
El cuerno del servo cuenta con un inserto metálico de ajuste a presión de 23 dientes para mayor durabilidad. The servo horn features a 23T press fit metal insert for durability.
BANDEJA DE BATERÍA
El soporte de la batería está montado en la parte delantera y se encuentra debajo del capó. El tamaño del soporte está diseñado para paquetes cortos, con un tamaño máximo de 26 mm x 98 mm x 47 mm.
35T BRUSHED MOTOR
Offering a perfect balance between speed and technical crawling, the 540 size, 35T motor included features a user-friendly design with larger cooling ports for longer periods of operation.
SPEKTRUM? STX3? 2.4GHz RADIO SYSTEM
The STX3? 3-channel radio system includes various features found in higher-end 2.4GHz radio systems, such as throttle/steering reversing, throttle/steering travel adjustment, and throttle limiting. It also offers third channel button controls for dig operation.
- Thumb controls allow you to operate the digging function
- Built-in throttle with 3-position limit
- Adjustments to the steering and throttle rates and trims can be made while also reversing the throttle and steering.
- The FHSS 2.4GHz protocol provides an extended range and interference-free performance.
SPEKTRUM? SRX300 RECEIVER, WATER-RESISTANT
El SRX300 es un receptor de 3 canales de 2.4GHz que opera con modulación FHSS. Está recubierto con material conformado para ayudar a prevenir daños por agua, polvo y otros elementos. Cuenta con un cable de antena extra largo para una colocación fácil y efectiva de la antena.
DYNAMITE® AE-5L ESC with drag brake, waterproof
The Dynamite AE-5L ESC can handle 3S LiPo batteries and can be easily switched between LiPo and NiMH battery types in the field with a simple jumper - no more complicated procedures.
- LED light bar and two front mounted LED lights included
- Convenient IC3? plug lead
- Jumper 1 offers a simple plug-and-play option between LiPo or NiMH.
- Jumper 2 switches the Drag Brake settings.
- Waterproof design with IC3? plug / laser etched heat sink. NOTE: Requires a shorty battery pack with an IC3? connector.
SPEKTRUM? S614 SERVO, WATERPROOF
The Spektrum S614 metal geared servo provides 201 oz-in of steering torque, a metal case for durability, and it is waterproof for added protection against the elements. The axle-mounted servo enables improved steering control during full articulation.
LED LIGHT BAR
A roof-mounted LED light bar helps illuminate the way during late-night crawls with your friends. The LED light bar and two front-mounted LED lights are included.
