Chassis

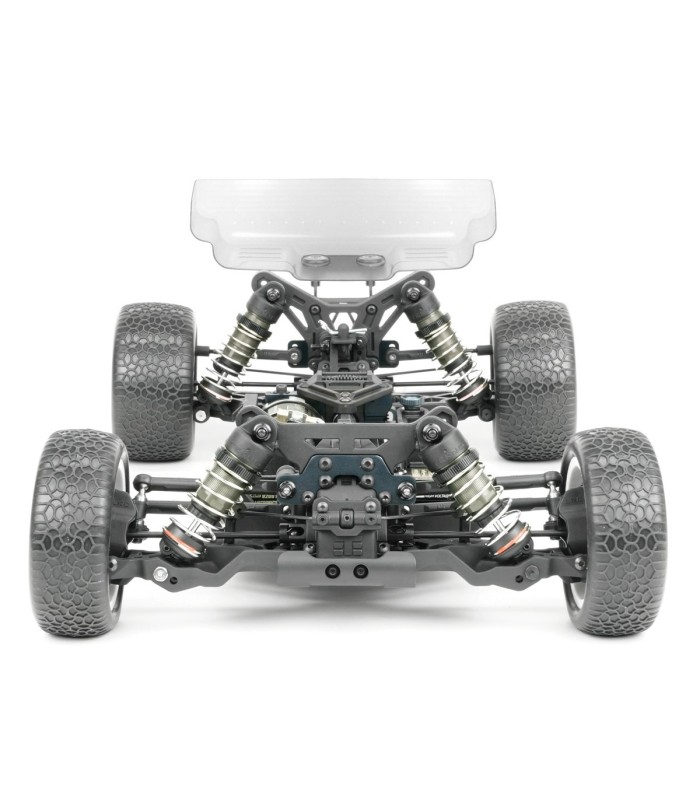

1/10 scale specially designed 4x4 buggy.
Innovative forward weight design.
New lightweight anodized aluminum CNC 7075 3mm chassis with suspension blocks with key for increased durability.
Low COG; Electronics and components sunk into the chassis.
Integrated battery cable guides.
Ample space for the most popular electronics.
Popular shorty pack setup. Best balance and lighter weight.
Easily accessible battery for quick removal and replacement.
Adjustable chassis clamp system to adjust the rear flex.
Differentials and transmission
Easy access to differentials.
Three large adjustable lightweight differentials filled with liquid.
Lightened outdrives and differential couplers used throughout.
Conical aluminum central axles.
Rear gearbox at an angle with large bearings.
Straight central transmission line for maximum efficiency and minimal wear.
High-strength metal ring, pinion, and internal gears.
CVA drive shafts with captured pin bearings.
Large 6mm kingpin axles with custom toothed and lightened wheel nuts.
Collisions
Smooth shock absorbers with a large 13 mm diameter.
COG is a leader in the industry with a compact tower and shock design.
Super durable shock towers made of 10mm in the front and 8mm in the back.
New design and configuration of flat/flat piston (Front - 8 x 1.2 mm, Rear - 8 x 1.3 mm).
The geometry of the fully adjustable long-travel suspension maximizes stability and traction while providing superior cornering and power steering.
New strong shock-resistant polished steel axles of 3.5 mm.
Shock bodies threaded by CNC and adjustment nuts.
Emulsion compound shock absorbers.
Spring hanger fixation.
Design of a CNC Delrin double shock guide for a true and consistent axle action.
Double X-ring o-rings to provide smooth and consistent cushioning.
Optional springs and stabilizer bars are available.
Suspension and Steering
The first compact design of a reverse compact bellows that produces a constant steering response
New rear arms and stabilizer bar support for front shocks.
New LRC spindle carriers with 15° wheels.
Bearing-supported bellcrank and Ackermann plate.
Adjustable Ackermann and bump-steer (bump in, zero bump, bump out).
Adjustable steering stops for precise steering displacement adjustments.
Sliding and adjustable front arm angle to make the car more stable or aggressive.
Front and rear exterior hinge bolts captured.
Front seagull wing arms that lower the COG.
New adjustable heavy-duty CNC 7075 hinge pin clamps.
Long rear stabilizer bar for greater consistency.
New heavy-duty hinge pins 3.5mm 3mm internal and external surfaces, polished for a smooth operation.
New composite cubes with tilt link and center roll adjustment.
New blocks C and D for greater precision in the fingers and anti-squat adjustment.
Custom locking kingpin screws.
Engine assembly
Aluminum CNC motor mount set of 2 pieces with precision gear mesh adjustment.
Split center support for easy maintenance.
New 81-tooth straight gear with improved durability.
Lightweight design for direct mounting to the differential.
Use standard 48-step pinion gears.
Includes integrated fan assembly.
Other characteristics
High aerodynamic load wing with included hole guides.
New one-piece wing assembly of +5 mm.
Easily adjust anti-squat, rear toe, front arm angle, front arm sweep, pivot point, toe, camber, wheelbase, Ackermann, shock direction, out-of-the-box suspension geometry.
Complete set of optional pieces available.
Extremely easy to work with a minimal screw count.
All the hexagonal metric hardware.
Specifications
Length: 393 mm (without wing) up to 424 mm (with wing)
Wheelbase: 283-294 mm
Width: 246-250 * mm (* optional spacers required)
Weight: 1630 (or less) to 1780 g depending on the equipment used
Difference relationship: F / R - 16 / 40t, Centro - 81t
Battery tray dimensions: 96x47x26 mm
Kit / RTR: Ready to Run Kit
Completion required
2/3 channel radio/transmitter
ESC at a scale of 1/10 and motor system
High torque steering servo (at least 200 oz/in)
"Piñoneria" translates to "pine nut store" in English.
2s shorty LiPo battery (at least 4000mAh)
Tires, wheels, and cyanoacrylate glue
Paint for the bodywork
